Union Community UBio-X Face Premium

Automatic Door
* Automatic door is operated by non-power contact input.
* The automatic door controller performs the door opening operation by outputting the
contact point by the door opening control operation.

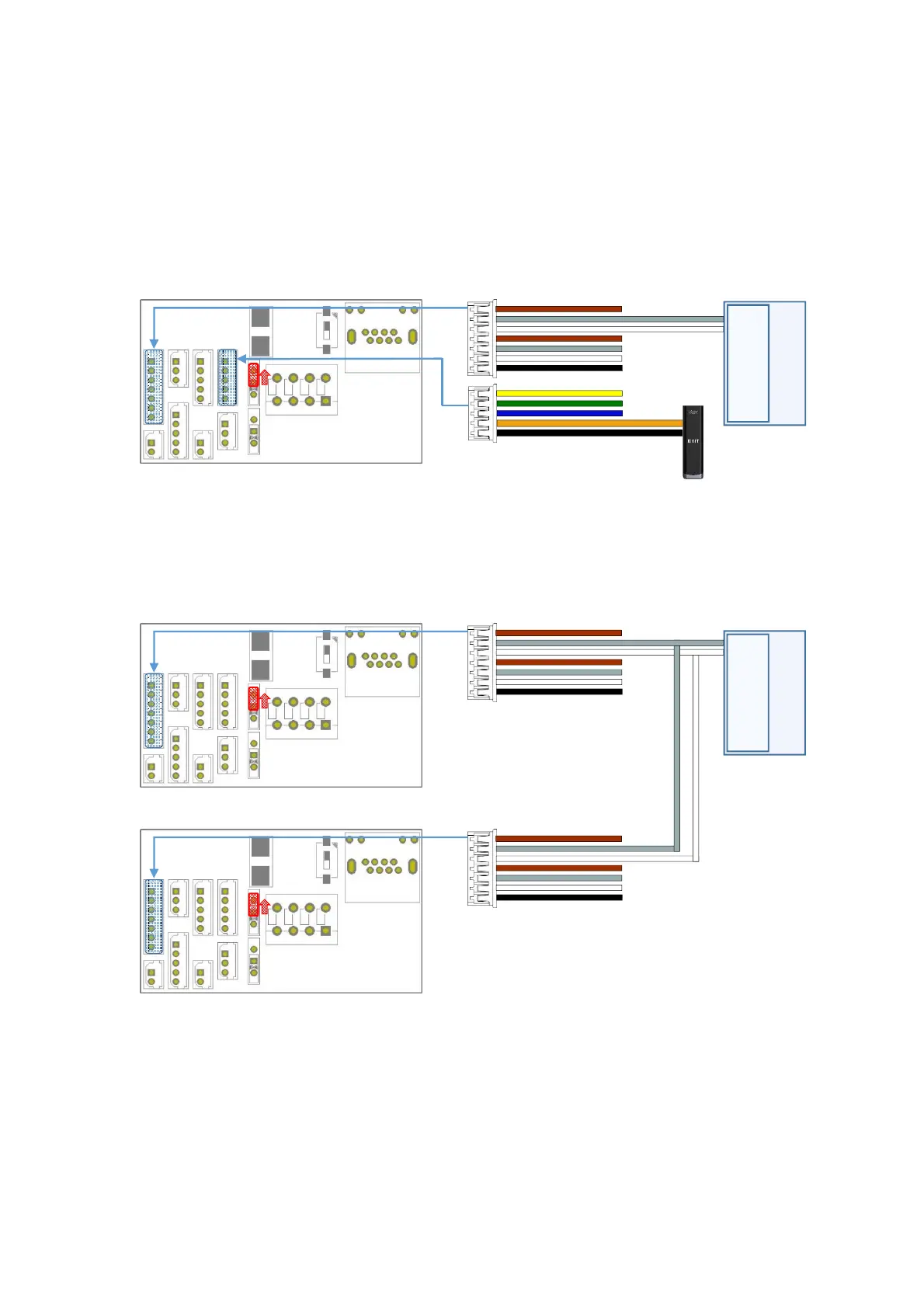

Two system, one Lock Connection
One system, one Lock connection/ Exit button connection
* SW4 Off Position
EB-030
Exit button
Sensor Input Line
4/EXIT
3/L1NO
5/GND
2/L1C
Automatic
door
UBio-X Face Premium
* SW4 Off Position
Sensor Input Line
3/L1NO
2/L1C
Automatic
Door
* SW4 Off Position
3/L1NO
2/L1C
System 1
System 2
