15V/24V Power Connection

PIN Function/Label Color

1 5V Output/5V SKY BLUE

2 Ground/GND BLACK

5V Output Power Connection

Motor Connection

PIN Function/Label Color

1 Motor+ /M+ YELLOW

2 Motor- /M- BROWN

RS-232 peripheral Device Connection

Warning Lamp Connection

PIN Function/Label Color

1 Green Lamp/L_G GREEN

2 Red Lamp/L_R RED

3 Ground/GND BLACK

PIN Function/Label Color

1 nc

2 RS232 TXD/R2T RED

3 RS232 RXD/R2R BROWN

4 Ground/GND BLACK

5 nc

PIN Function/Label Color

1 Input Power/ 15V/24V RED

2 Ground/GND BLACK

3 nc

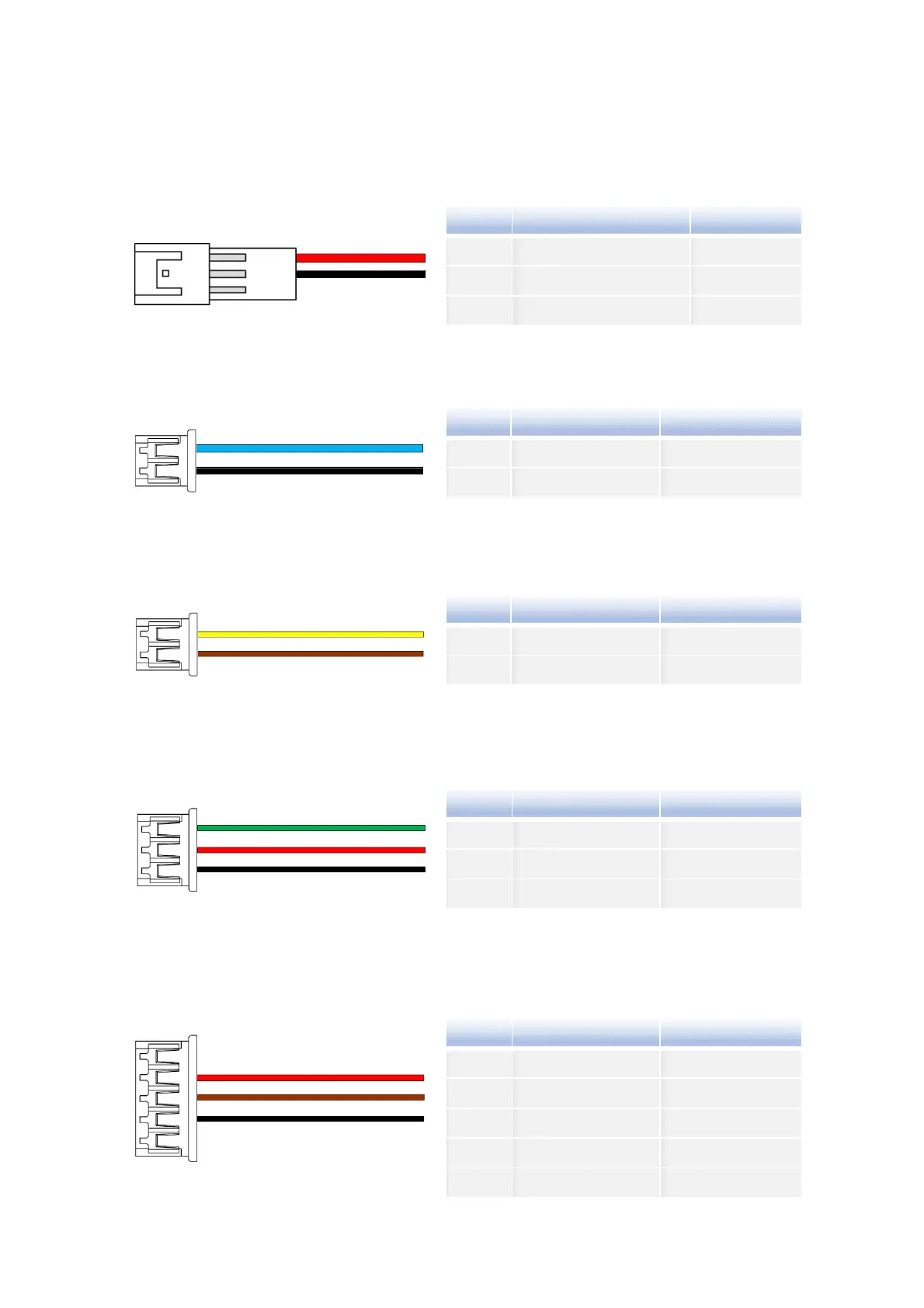

Cable Specifications
