Horizontal Beam
Horizontal Beam
Rail
Fault Current
Ground Path
Module Grounding
Lug
Rail Grounding
Lug
Bonding Mid Clamp
Min. 10 AWG, 105°C
Copper Wire
Note: Every array must have at
least one grounding lug either
module grounding lug or rail
grounding lug.

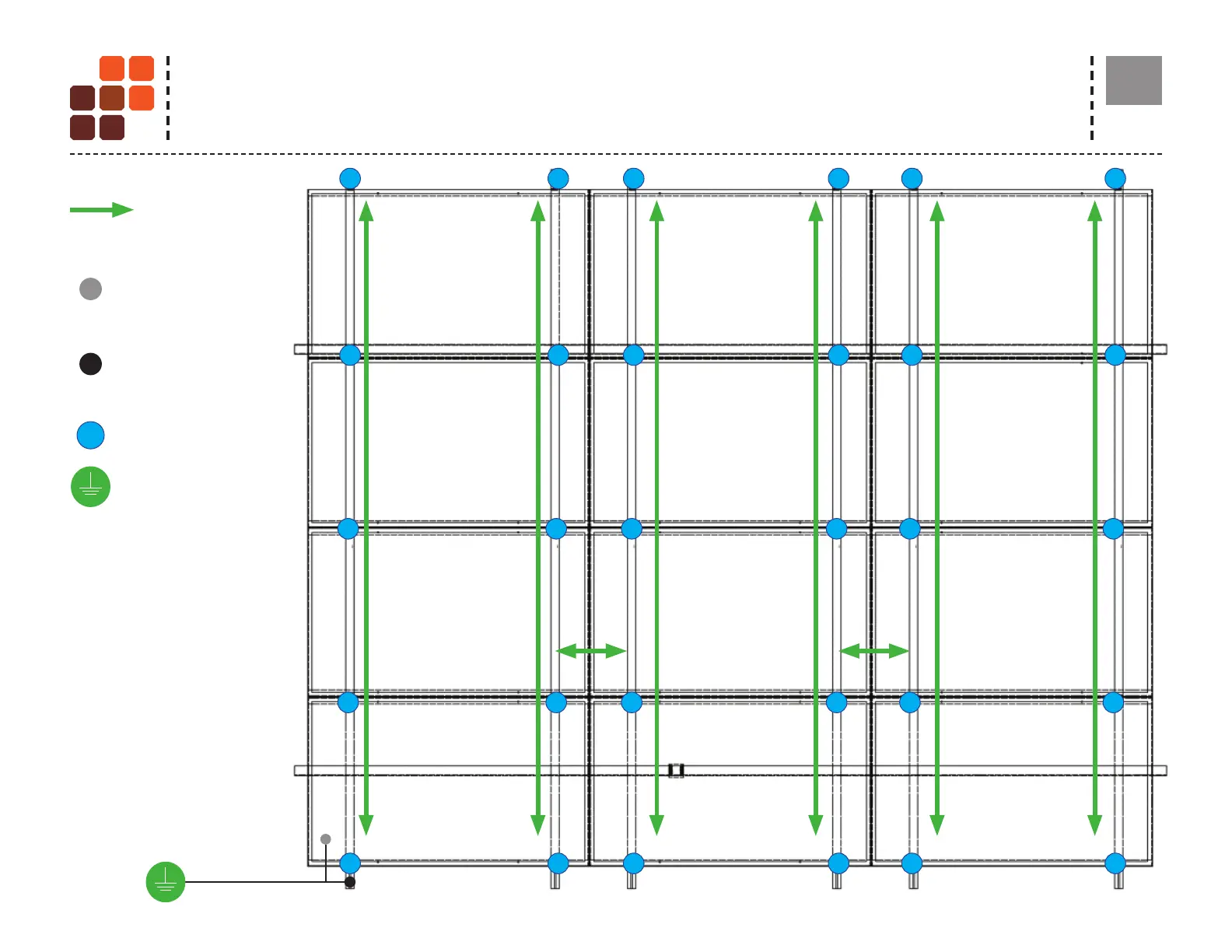

Bonding Connections & Grounding Paths
