UNIRAC ULA - Installation of Standard Series Clamps

ULA
PLANNING AND
ASSEMBLY
INSTALLATION MANUAL
INSTALLATION GUIDE
PAGE
10

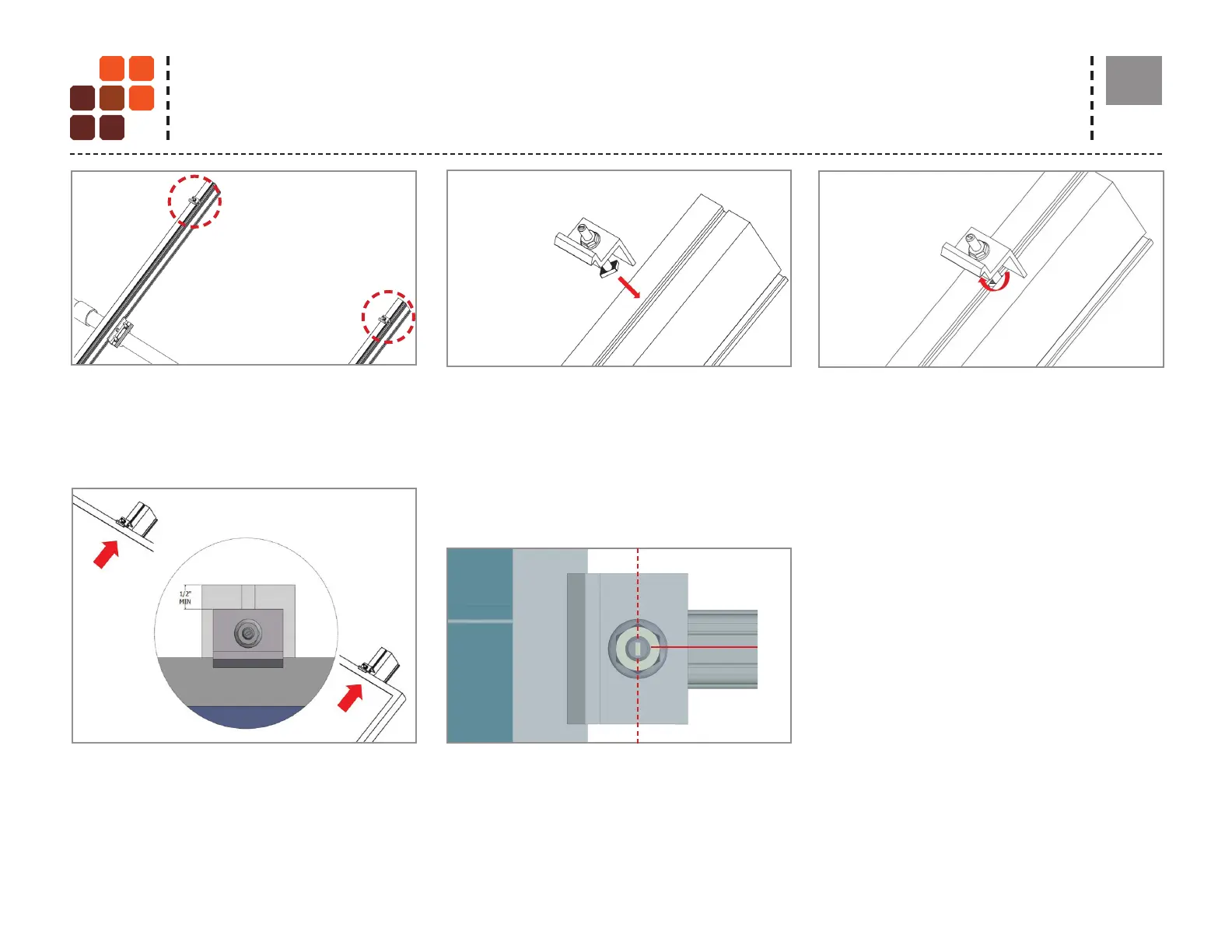

Standard Series Clamps: Endclamp & First Module
INSTALL MODULE ENDCLAMPS: The Endclamp is
supplied as an assembly with a T-bolt, serrated  ange
nut, and washer. The washer retains the clamp at the
top of the assembly. This will enable the clamp to
remain upright for module installation.
INSTALL FIRST MODULE: Install the  rst end module
onto rails. Engage module frame with Endclamps.
Verify that the position indicator & T-bolt shaft are
angled in the correct position.
TORQUE VALUE 1/4” nuts to 10 ft-lbs. w/Anti Seize
NOTE: *See appendix for additional clamp con gurations
POSITION INDICATOR - SERRATED T-BOLT: Verify the
T-bolt position indicator is perpendicular to the rail.
INSERT ENDCLAMP T-BOLT: Insert 1/4” T-bolt into
rail.
ROTATE ENDCLAMP T-BOLT: Rotate T-bolt into
position. Verify that the position indicator & T-bolt
shaft are angled in the correct position.
End clamps are positioned on rails prior to the  rst
end module and installed after the last end module.
 
