ULA
PLANNING AND
ASSEMBLY
INSTALLATION MANUAL
INSTALLATION GUIDE
PAGE
11

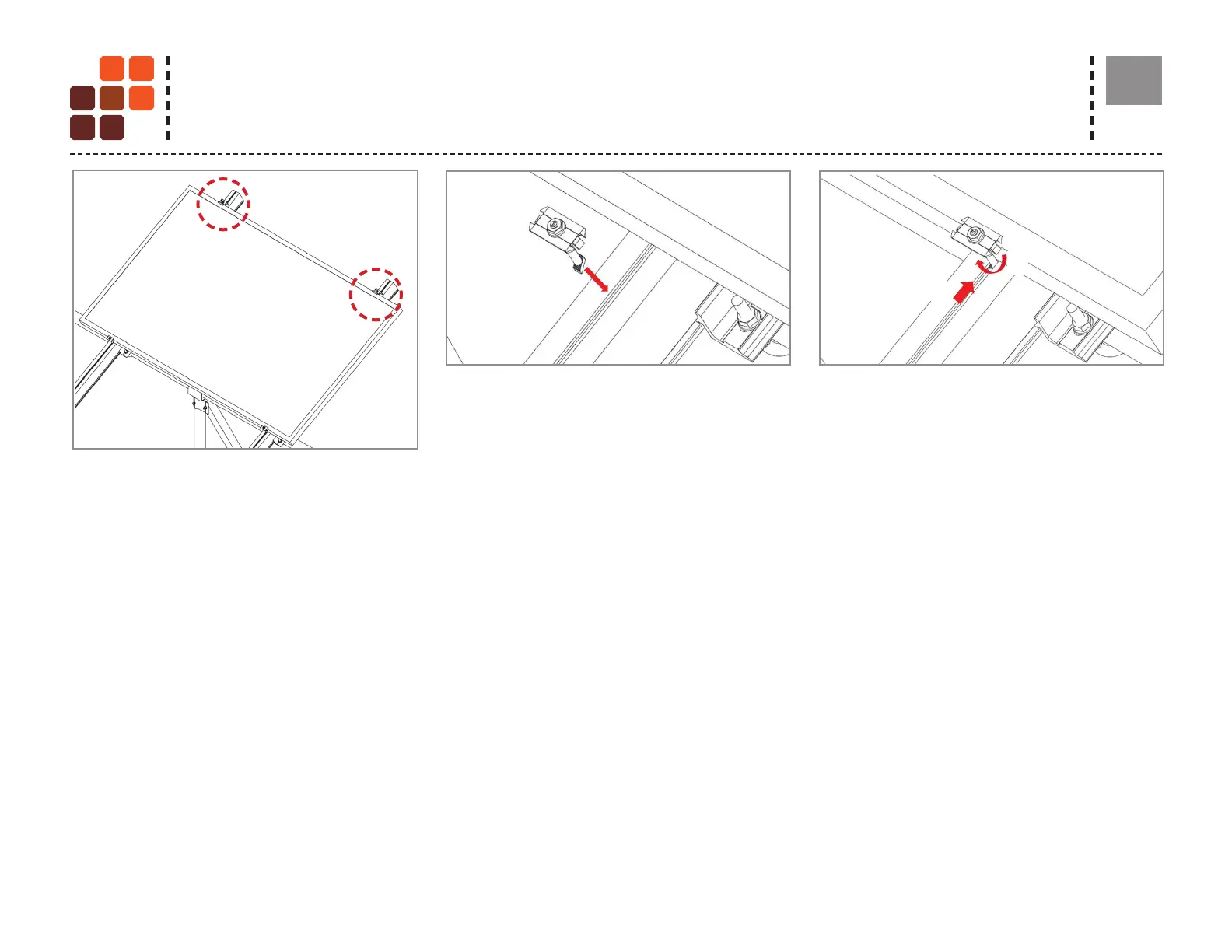

Standard Series Clamps: Bonding Midclamp
ROTATE MIDCLAMP T-BOLT: Rotate bolt into position
and slide until bolt and clamp are against module
frame. Do not tighten nut until next module is in
position. Verify that the position indicator & T-bolt
shaft are angled in the correct position.
INSERT MIDCLAMP T-BOLT: Apply Anti-Seize and
insert 1/4” T-bolt into rail.
INSTALL MIDCLAMPS: Midclamp is supplied as
an assembly with a T-bolt for module installation.
Clamp assemblies may be positioned in rail near
point of use prior to module placement.
