Components and quantities speci c to your installations are listed on
your quotation.

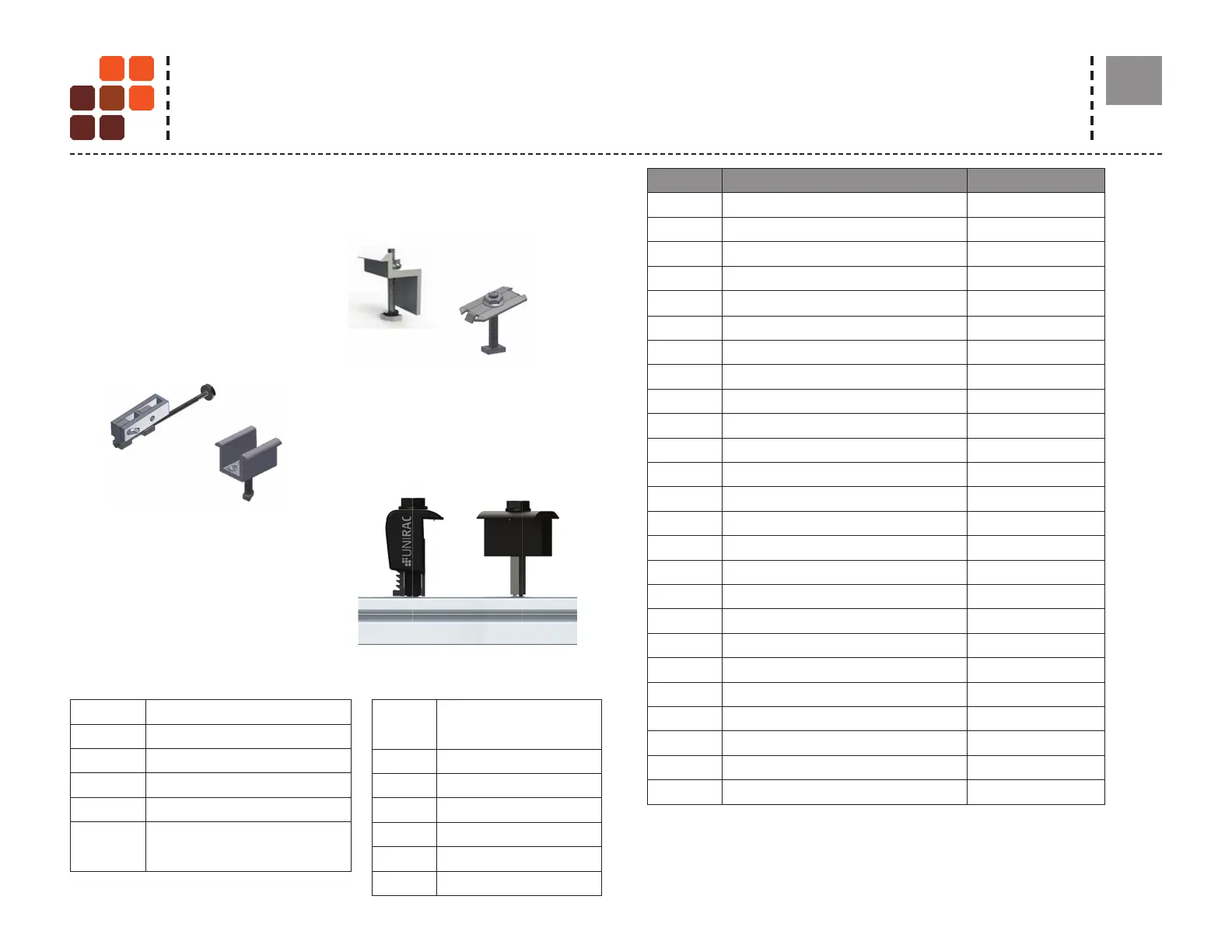

MODULE MOUNTING COMPONENTS
Standard Series Clamps
Secure modules to rail with 0.25”
gap between modules.
Pro Series Clamps
Secure modules to rail with 1”
gap between modules.
Universal AF Clamps
Secure modules to rail with 0.5” gap
between modules
Note: Standard Series, Pro Series, and Universal AF clamps are single use only.
SYSTEM COMPONENTS
S.NO. DESCRIPTION PART NUMBER
1 SM ENDCLAMP B CLR AL 302021C
2 SM ENDCLAMP B DRK AL 302021D
3 SM ENDCLAMP C CLR AL 302022C
4 SM ENDCLAMP C DRK AL 302022D
5 SM ENDCLAMP D CLR AL 302023C
6 SM ENDCLAMP D DRK AL 302023D
7 SM ENDCLAMP E CLR AL 302024C
8 SM ENDCLAMP E DRK AL 302024D
9 SM ENDCLAMP F CLR AL 302025C
10 SM ENDCLAMP F DRK AL 302025D
11 SM ENDCLAMP K CLR AL 302026C
12 SM ENDCLAMP K DRK AL 302026D
13 SM BND MIDCLAMP BC SS 302027C
14 SM BND MIDCLAMP BC DRK SS 302027D
15 SM BND MIDCLAMP EF SS 302028C
16 SM BND MIDCLAMP EF DRK SS 302028D
17 SM BND MIDCLAMP DK SS 302029C
18 SM BND MIDCLAMP DK DRK SS 302029D
19 SM MIDCLAMP PRO DRK 302030D
20 SM MIDCLAMP PRO MILL 302030M
21 SM ENDCLAMP PRO W/CAP 302035M
22 UNIVERSAL AF MID CLAMP DRK 302045D
23 UNIVERSAL AF MID CLAMP MILL 302045M
24 UNIVERSAL AF END CLAMP DRK 302050D
25 UNIVERSAL AF END CLAMP MILL 302050M
SYMBOL DESCRIPTION
AL ALUMINUM
CLR CLEAR ANODIZED
DRK DARK BRONZE ANODIZED
SS STAINLESS STEEL
DRK SS BLACK OXIDE COATED
STAINLESS STEEL
LETTER
SUPPORTED MODULE
THICKNESS
B 30MM -32MM
C 33MM -36MM
D 38MM -40MM
K 39MM -41MM
F 45MM -47MM
E 50MM -51MM
