Note:
1. If you remove the wedge and flip it upside down, it acts as a clip to hold up the scanner
when the base is mounted to the wall.
2. The cradle foot serves for table mount when being fixed to the upper portion adjacent to
the antenna; the cradle foot serves for wall mount when being fixed to the lower portion
on the guidance grooves.
3. When using RS232 or PS2 cable, the interface switch should be to the left side
(default).
The USB cable can support HID (default) or COM port when switch is set to right.
Before changing the switch;
Disconnect power from cradle,
Disconnect USB cable from cradle
Set the interface switch
Connect USB Cable to cradle
Connect power to cradle

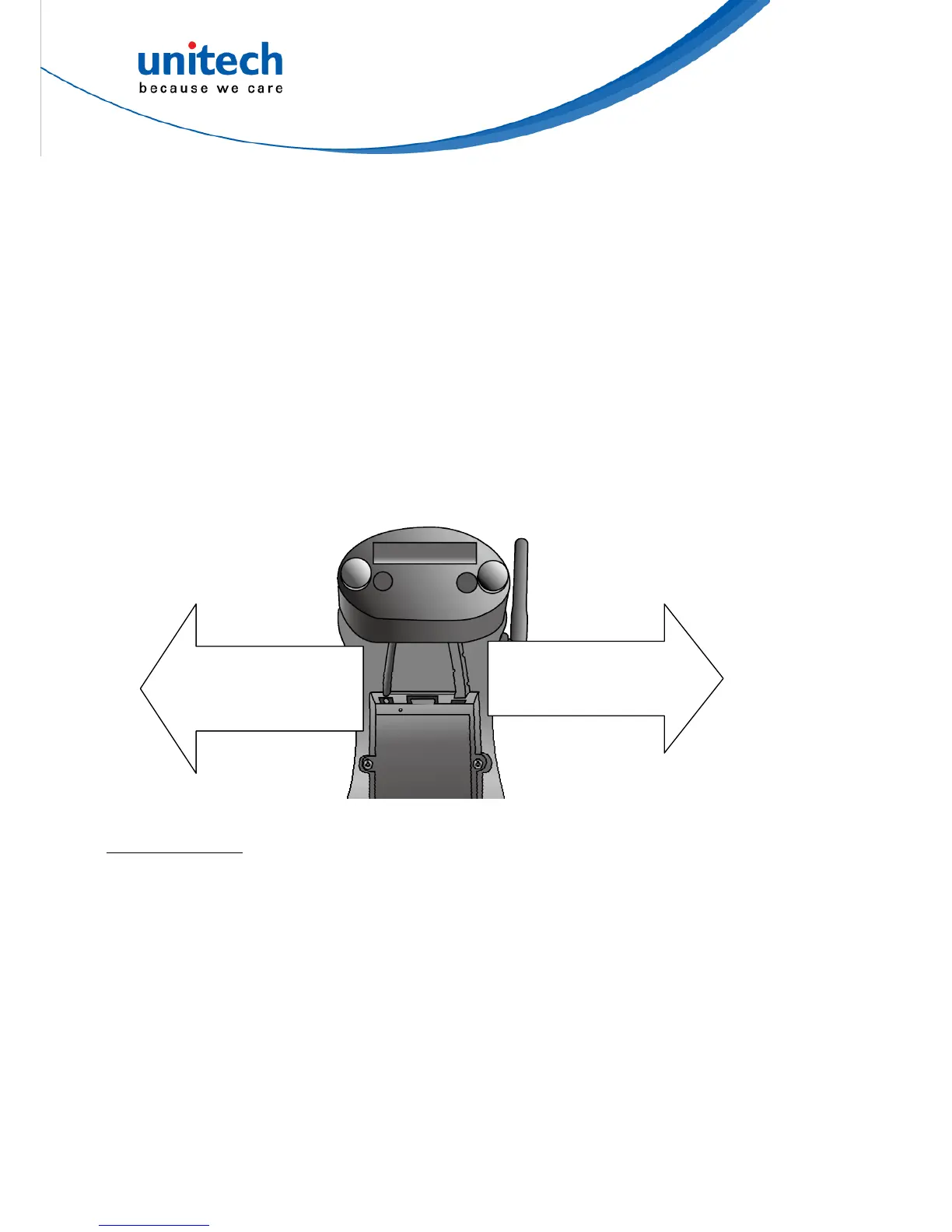

5
Interface switch, left
USB
Interface switch, right
COM
PS2 / RS232
Operation in USB COM requires additional driver which is available at
http://www.ute.com
.
In case the USB cable is been used, the cradle will receive power via USB cable. In
order to charge the scanner it is mandatory to connect power supply to cradle
4. The guidance groove is designed for arrangement of the power cord and the
communication cable (USB/RS232/PS2).
