Unitronics Samba OPLC SM43-J-R20 User Manual

Samba™ OPLC™
Unitronics 7
SM
35/43/70
-
J
-
T
20

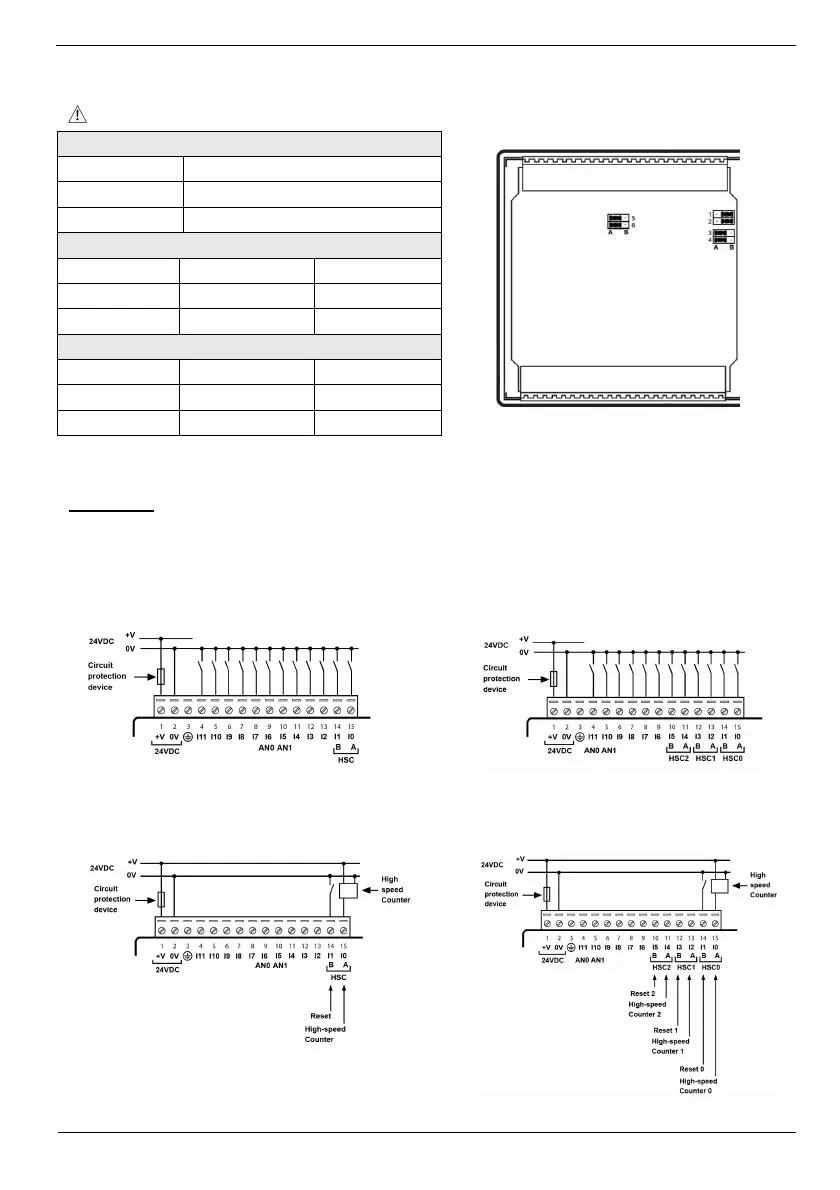

Do not move JP2.
Digital Inputs 0-11: Set Type
Set to JP1 (all Inputs)
npn (sink) A
pnp(source)* B
Inputs 10/11: Set as Digital or Analog
Set to JP5 (Input 10) JP6 (Input 11)
Digital* A A
Analog B B
Analog Inputs AN0/AN1: Set Type
Set to JP3 (AN0) JP4 (AN1)
Voltage* A A
Current B B
*Default settings
I/O Wiring
npn Input Wiring
SM35/43/70-J-R20 SM35/43/70-J-T20
Input wiring, npn (sink)
HSC input wiring, npn (sink)
