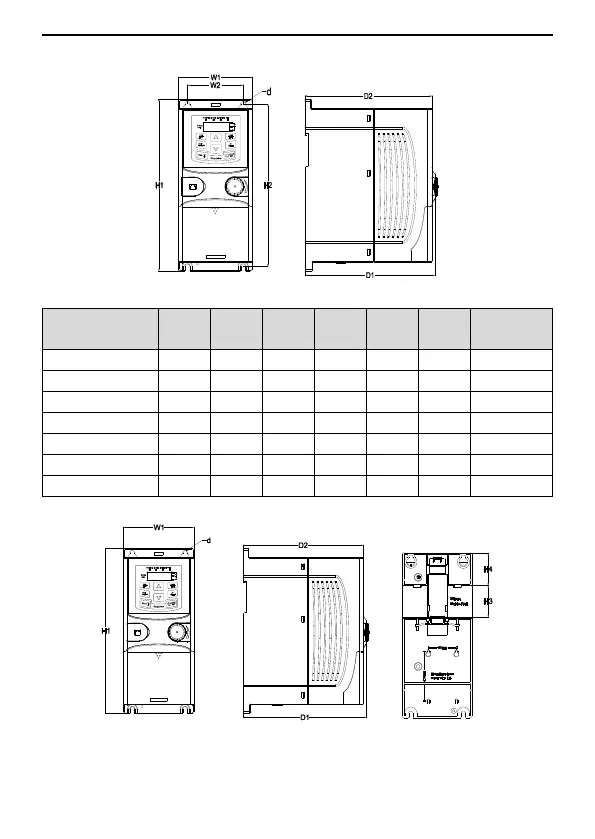

UMI-B1 UL Series Inverter Appendix B Dimension drawings
135
B.2 Inverter chart
Wall mounting (unit: mm)
Model
W1
W2
H1
H2
D1
D2
Installation
hole (d)
UMI-0004BU-B1
80.0
60.0
160.0
150.0
123.5
120.3
5
UMI-0007BU-B1
80.0
60.0
160.0
150.0
123.5
120.3
5
UMI-0015BU-B1
80.0
60.0
185.0
175.0
140.5
137.3
5
UMI-0022BU-B1
80.0
60.0
185.0
175.0
140.5
137.3
5
UMI-0007EU-B1
80.0
60.0
185.0
175.0
140.5
137.3
5
UMI-0015EU-B1
80.0
60.0
185.0
175.0
140.5
137.3
5
UMI-0022EU-B1
80.0
60.0
185.0
175.0
140.5
137.3
5
Rail mounting (unit: mm)
