V130-33-TR20 Installation Guide
6
Unitronics

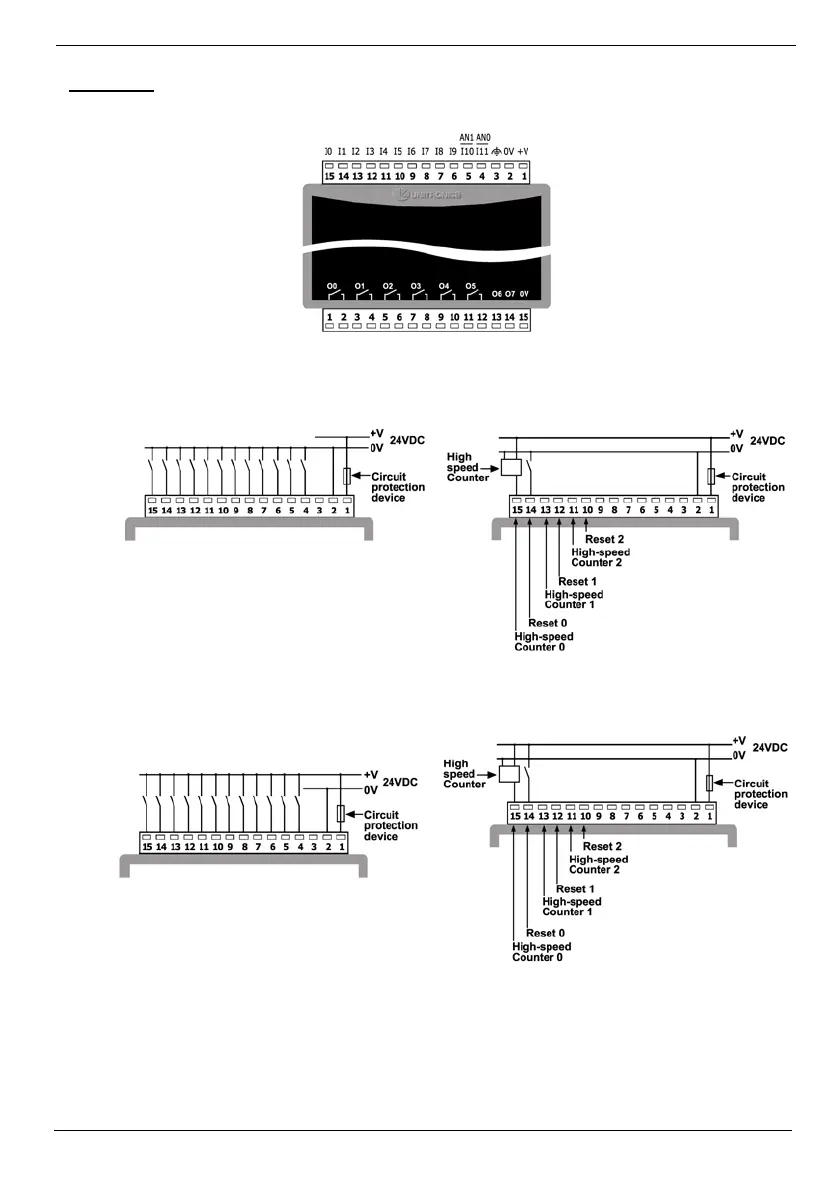

I/O Wiring
I/O Configuration
npn Input Wiring
Input wiring npn (sink)
HSC input wiring, npn (sink)
pnp Input Wiring
Input wiring pnp (source) HSC input wiring, pnp (source)
