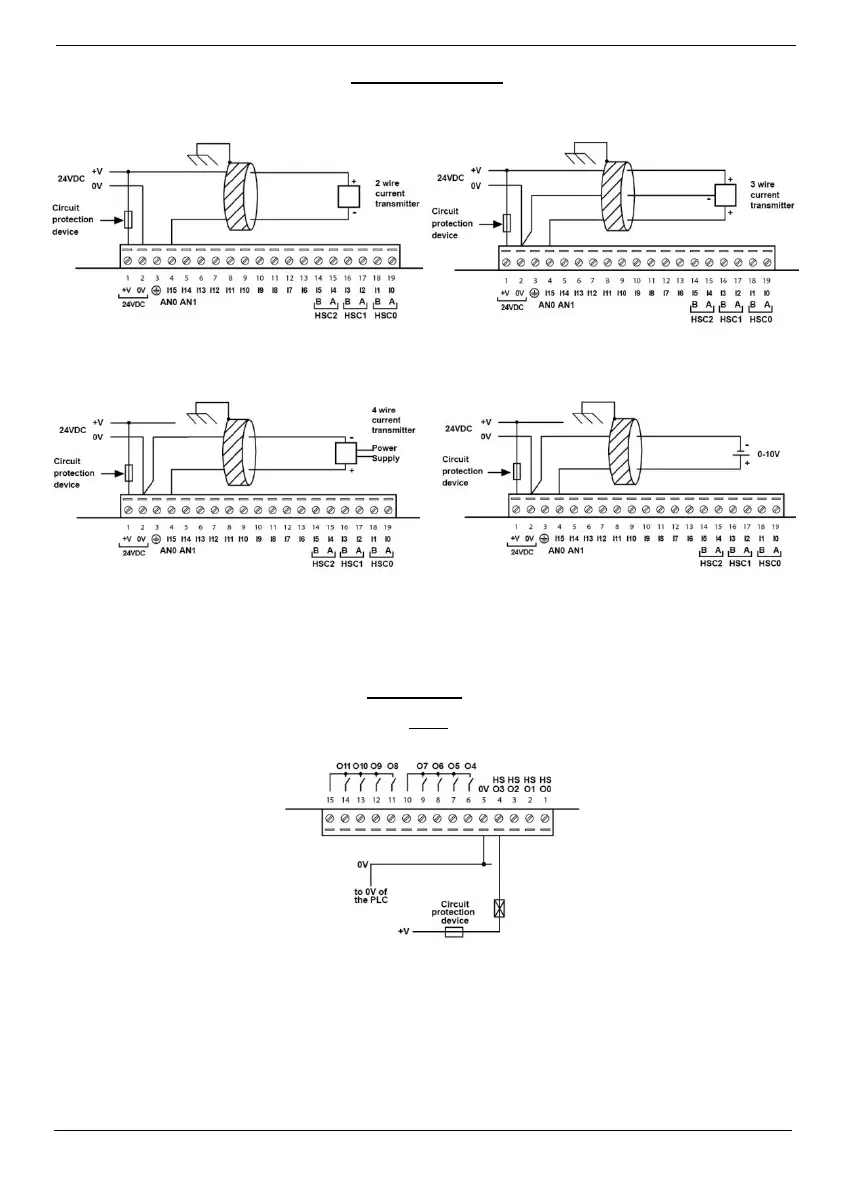

Analog Input Wiring
Analog input wiring, current (2 wire)
Analog input wiring, current (3-wire)
Analog input wiring, current (4-wire)
Analog input wiring, voltage
 Shields should be connected at the signal’s source.
 The 0V signal of the analog input must be connected to the controller’s 0V.
npn Outputs
TR34
