INSTALLATION

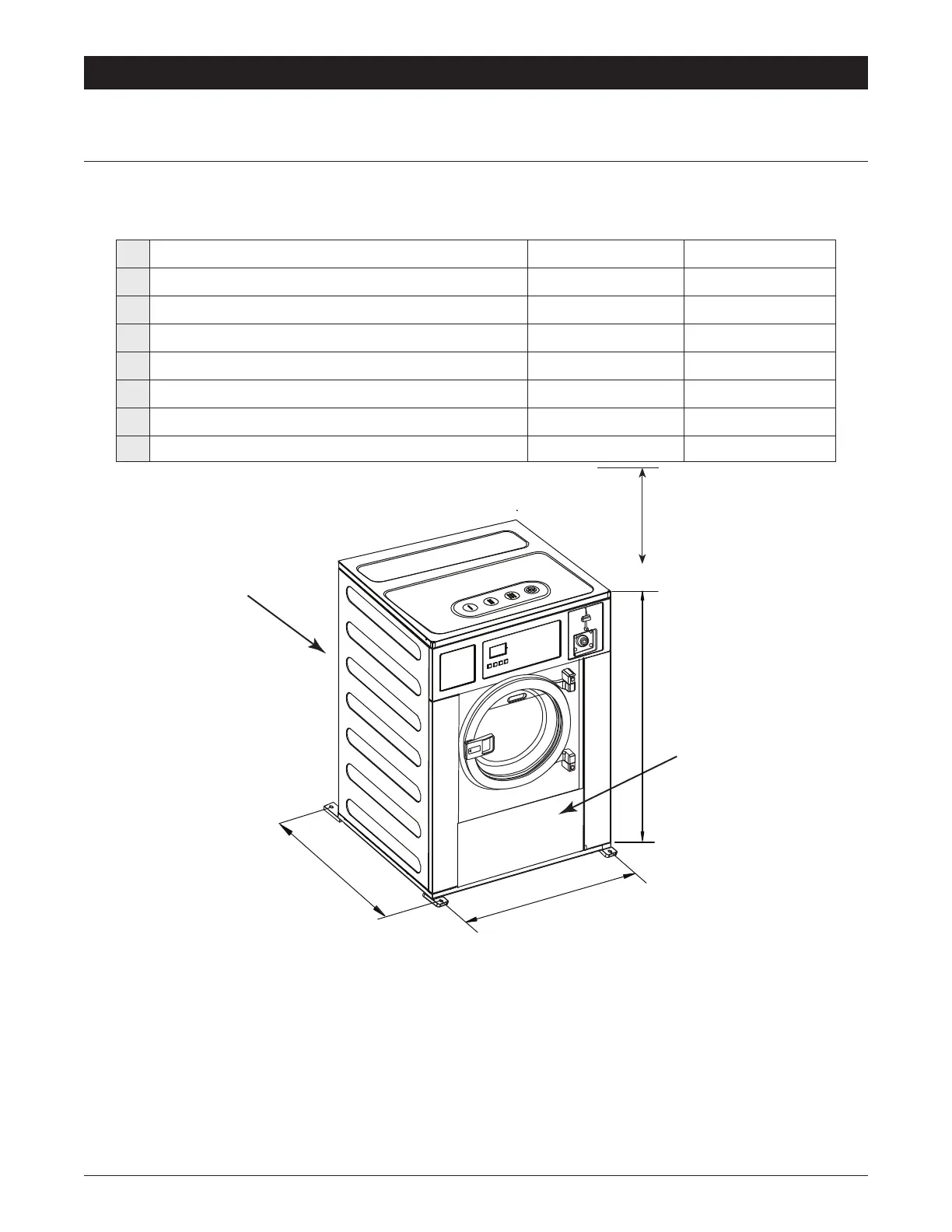

3.1 REQUIREMENTS OF INSTALLATION LOCATION
Themachinemustbeinstalledmeetingtheminimumdistancesspeciedbelowtoguaranteetheproperoperationand
maintenance access of the machine.
UTS40 UTS62
A Working area in front of machine - in (mm) 39.4 (1,000) 39.4 (1,000)
B Maintenance area behind machine - in (mm) 31.5 (800) 31.5 (800)
C Width - in (mm) 34.6 (880) 45.4 (1152)
D Depth - in (mm) 34.2 (870) 40.9 (1038)
E Height - in (mm) 55.1 (1,400) 58.4 (1,484)
F Distance between machines - in (mm) 0.75 (19) 0.75 (19)
G Minimum distance above machines - in (mm) 36 (914) 36 (914mm)
D
E
F
C
A
B
G
