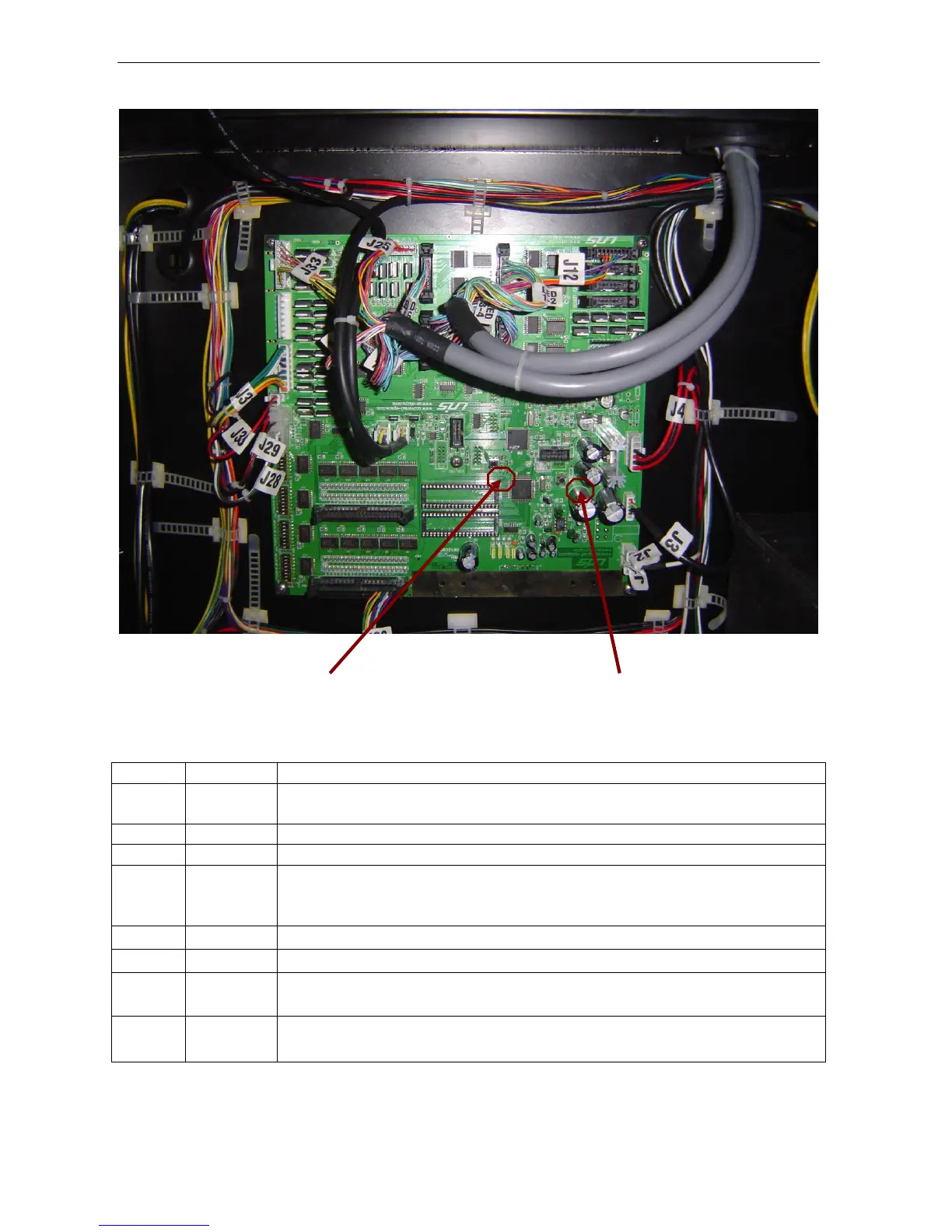

7.2 Main Board Connection
Test: Press “test” to enter this mode, go into 0, press “test” after 1 second to go to 1. (Same
goes for others).
TEST
Content
Explanation
Test 0
Jackpot
number
Led_J33 2-1 flash and display “-0” to Test 0. The rest will display LED
numbers, Led J-33, Led –J-32 is c. Dot matrix displays each number.
Test 1
LED
Led_J33 2-1 flash and display “-2”, Led_J33 3-6
Test 2
DIP SW
LED_J33 2-1 flash and display,′-2′, LED_J33 3-6 display each DIP state.
Test3
Input
LED_J33 2-1 flash and display, ′-3′, LED_J33 4-3 display 1st GND input
signal, LED_J33 6-5 display 2
nd
, and so on. LED_J32 8-7display 7
th
.
Each input has coin sound.
Test 4
Output
LED_J33 2-1 flash and display,′-4′，I1-I8 and I9-I16control Out1-Out48
Test 5
Output
LED_J33 2-1 flash and display,′-5′，I1-I48control Out1-Out48.
Test 6
Output
LED_J33 2-1 flash and display,′-6′，Out1-Out48，8numbers as one group
for output.
Test 7
Music
LED_J33 2-1 flash and display, ′-7′，LED_J33 5-3 display present music
number, I1for play, I2 for +1，I3for set to 0，I4plus 10.
RESET button
TEST button
