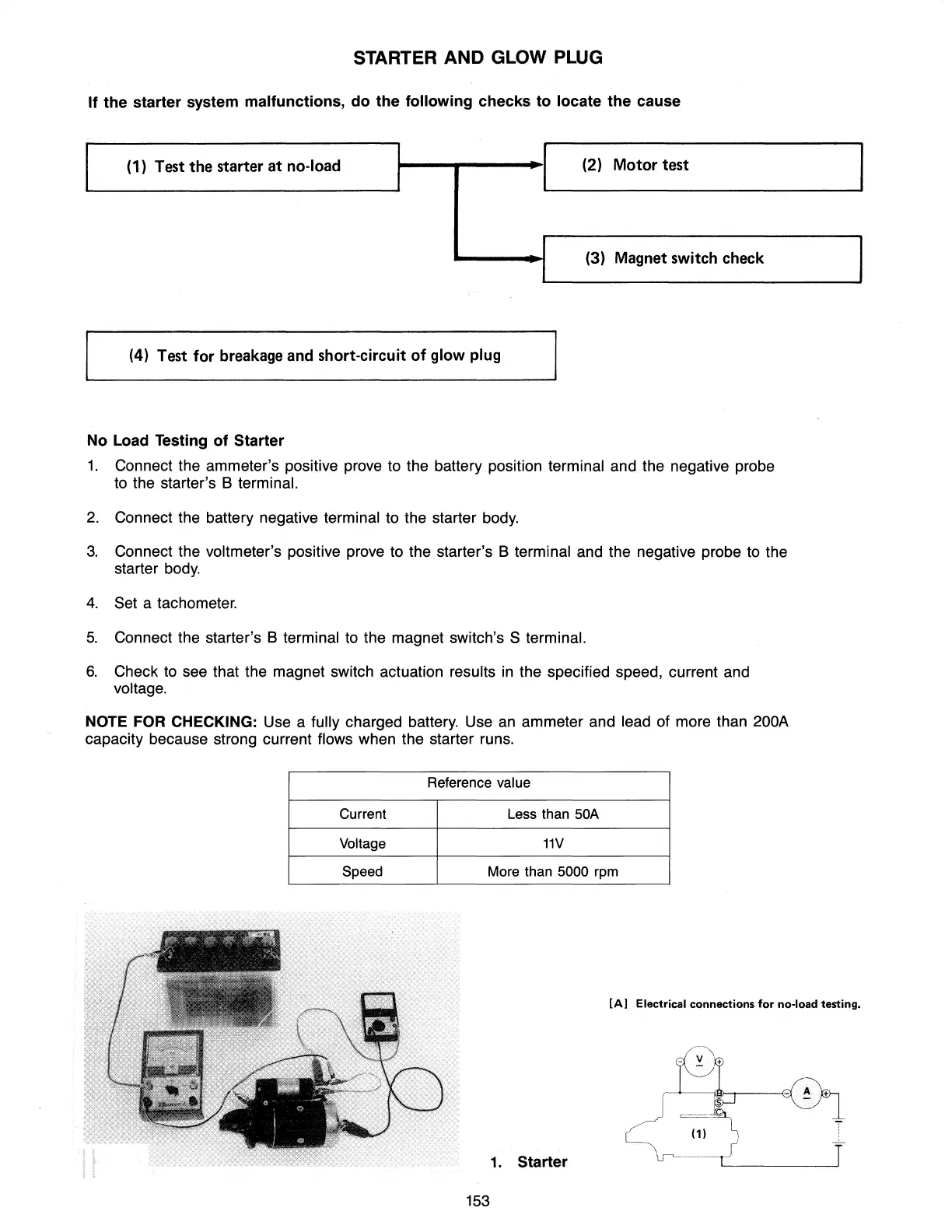

STARTER AND GLOW PLUG
If
the starter system malfunctions,
do
the following checks
to
locate
the
cause
(1) Test the starter
at
no-load
I
(2)
Motor
test
I
(3) Magnet switch check
(4) Test
for
breakage and short-circuit
of
glow
plug
No Load Testing
of
Starter
1.
Connect the ammeter's positive prove to the battery position terminal and the negative probe
to the starter's B
terminal.
2.
Connect the battery negative terminal to the starter
body.
3.
Connect the voltmeter's positive prove to the starter's B terminal and the negative probe to the
starter
body.
4.
Set a tachometer.
5.
Connect the starter's B terminal to the magnet switch's S terminal.
6.
Check to see that the magnet switch actuation results
in
the specified speed, current and
voltage.
NOTE
FOR
CHECKING: Use a fully charged battery. Use
an
ammeter and lead of more than 200A
capacity because strong current flows when the starter runs.
Reference value
Current Less than 50A
Voltage
11V
Speed More than 5000 rpm
[AI Electrical
connections
for
no-load testing.
1. Starter
153
