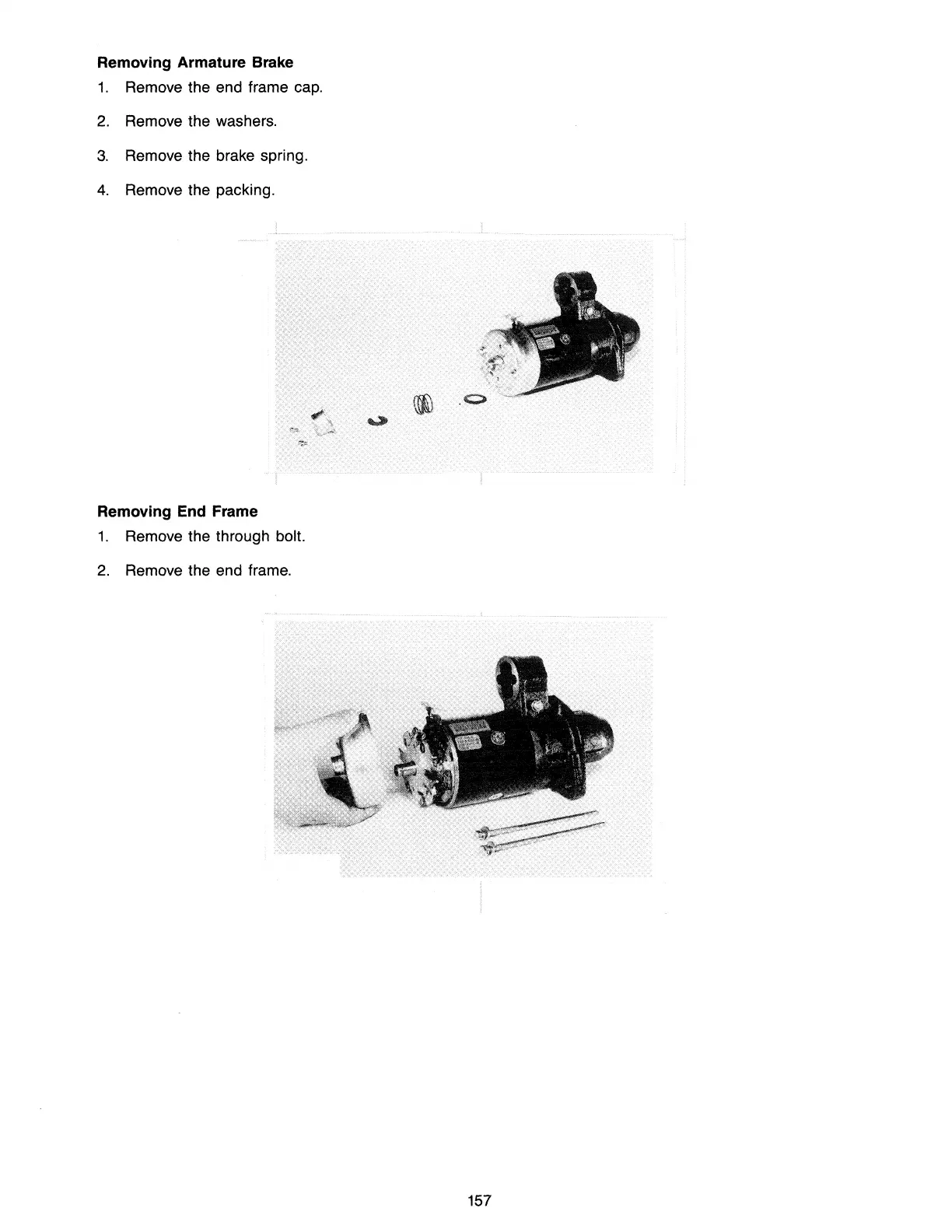

Removing Armature Brake
1.
Remove the end frame cap.
2.
Remove the washers.
3.
Remove the brake spring.
4.
Remove the packing.
Removing End Frame
1.
Remove the through bolt.
2.
Remove the end frame.
157
