Universal MIRAGE - Channel 7 (Service Channel) Functions

0
255
224
192
160
128
96
64
32
34
67
100
134
175
201
235
255
0

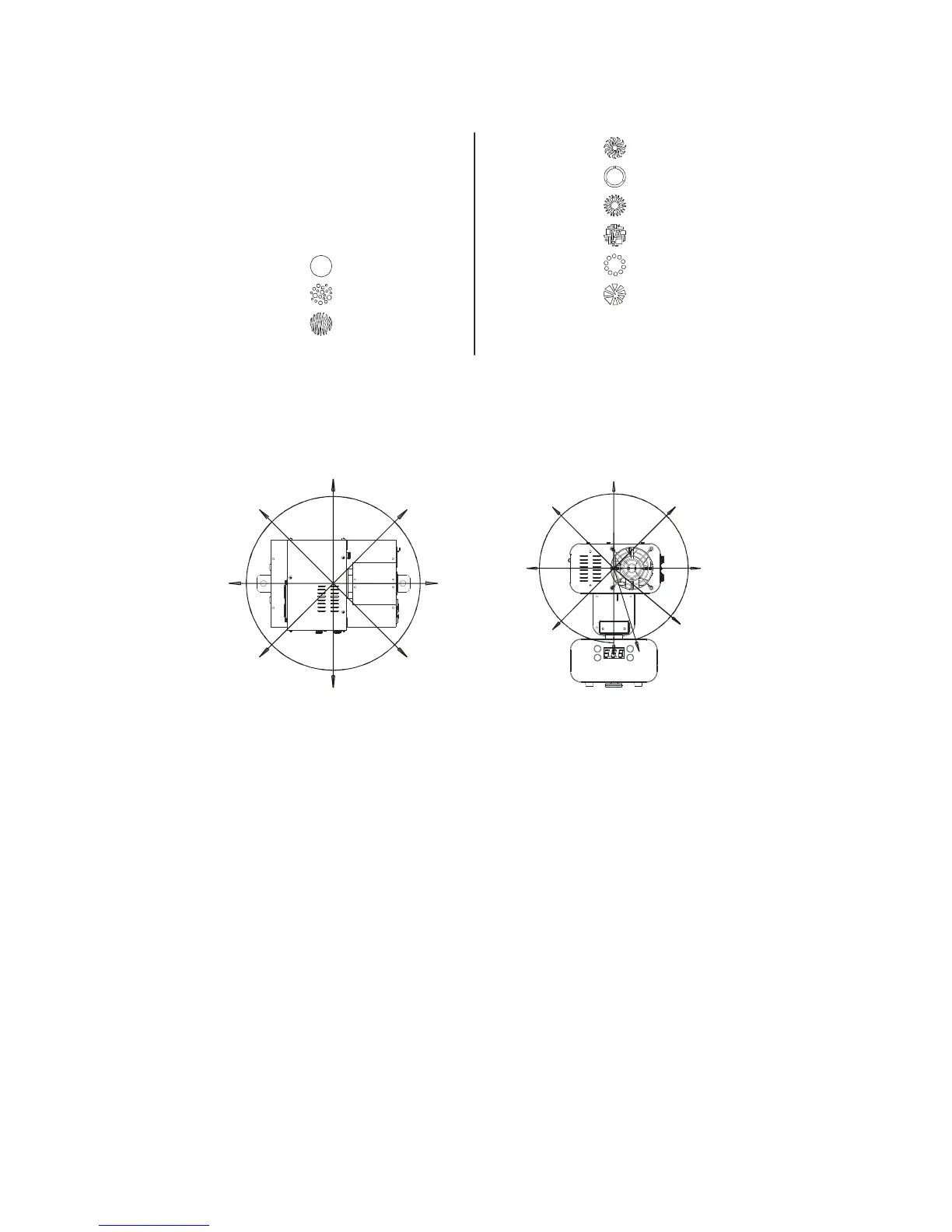

CHANNEL 4(PAN) CHANNEL 5(TILT)
5.
CHANNEL 3(DIMMER)
0 – the bulb is switched off * 255- the brightness is 100%
* the fan is slowing it’s rotation getting to the noiseless operation
CHANNEL 6(PAN/ TILT SPEED) the speed of the motors rotating the head of the unit in
panoramic and vertical directions.
0 – minimum speed 255- maximum speed
CHANNEL 2 (GOBO)
0-19 closed 110-129
20-29 strobe 2 flashes per second 130-149
30-39 strobe 3.5 flashes per second 150-169
40-49 strobe 5 flashes per second 170-189
50-69 190-209
70-89 210-255
90-109
CHANNEL 7 (SERVICE CHANNEL)
0-19 DMX controller mode
20-39 Internal program # 1
40-59 Internal program # 2
60-79 Internal program # 3
80-99 Internal program # 4
100-119 Shift internal programs randomly
120-139 Sound activated mode in accordance with internal program #1
140-159 Sound activated mode in accordance with internal program #2
160-179 Sound activated mode in accordance with internal program #3
180-199 Sound activated mode in accordance with internal program #4
200-219 Sound activated mode in accordance with internal program randomly chosen
220-249 Blackout (the bulb is off rotation is stopped)
250-255 Reset
To activate a mode the level of the 7
th
DMX channel must be stable for 1.5 second or more
