12. Unox condensation hood
Installation
- Drain Connection:
- The extract condensate drain has to be
connected to an open or trapped drain
through a rigid or flexible pipe.
- The diameter of the pipe cannot be
smaller than diameter of the drain
connection and the length of the pipe
cannot be longer than one meter.
- Tighten the pipe with a hose clamp to
avoid the pipe becoming disconnected.
- Avoid reductions in diameter and tight
bends along the whole length of the waste
pipe run.

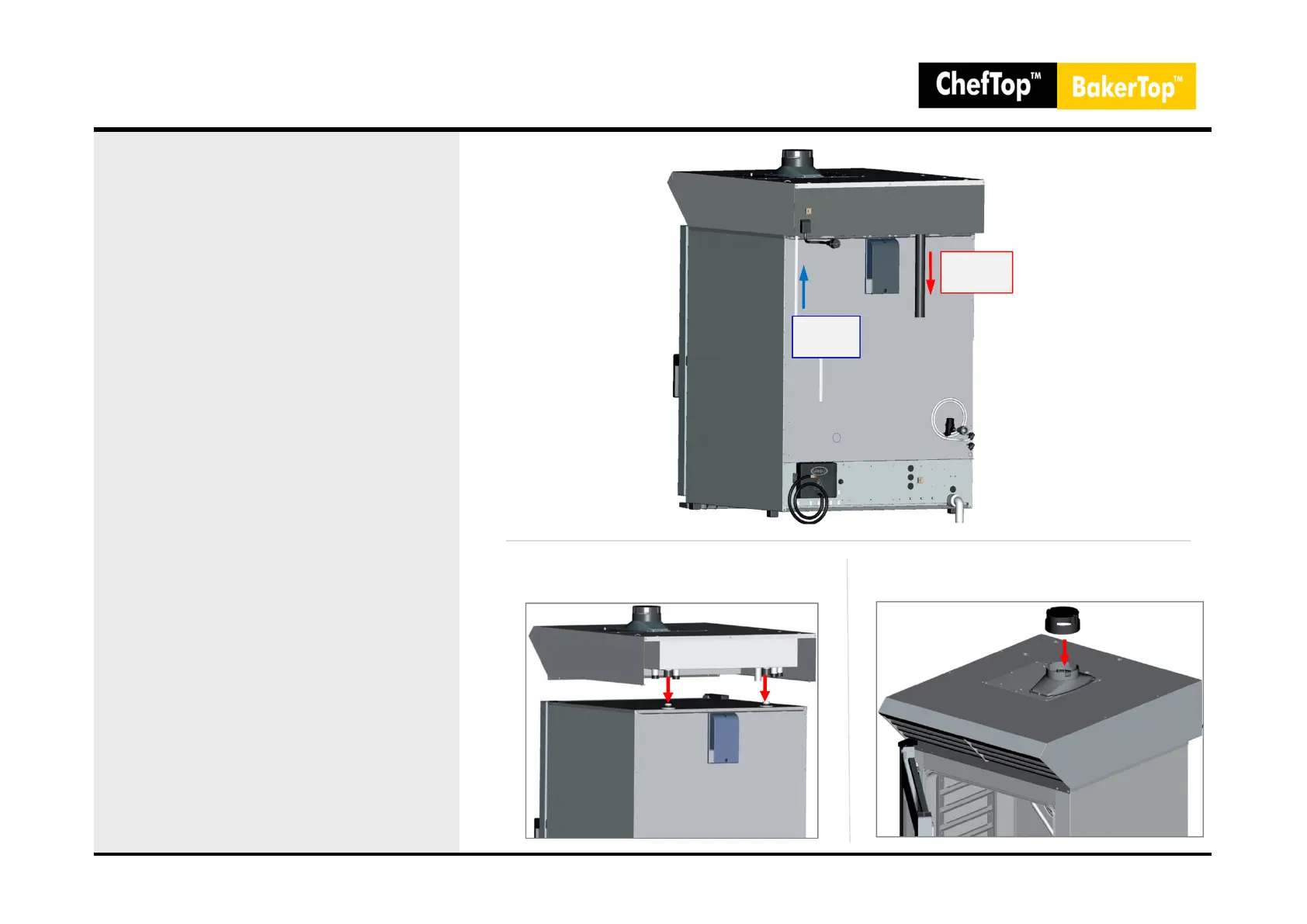

- Ovens exhaust connection:
- The extract outlet(s) of the oven has to
be connected to the proper inlet that is
positioned on the rear of the hood (see
the picture).
- The second fumes inlet(s) of the hood, if
it not used, has to be closed with the tap
supplied.
- If there are two stacked ovens, the
extract outlet of each furnace is
connected to corresponding inlet fume
hood.
- Fumes Exhaust:
- The exhaust fumes of the hood are
discharged from the top of the hood
through a tube of 121 mm of diameter.
- For safety reasons is necessary to apply
the conveyor fume pipe supplied with the
appliance on the top of the hood. Place
the cap with lateral opening over the top
of the conveyor.
Drain
Connection
Exhaust Connection
Fumes Exhaust
Water
inlet
Water
outlet
41
