Unox XVC User Manual

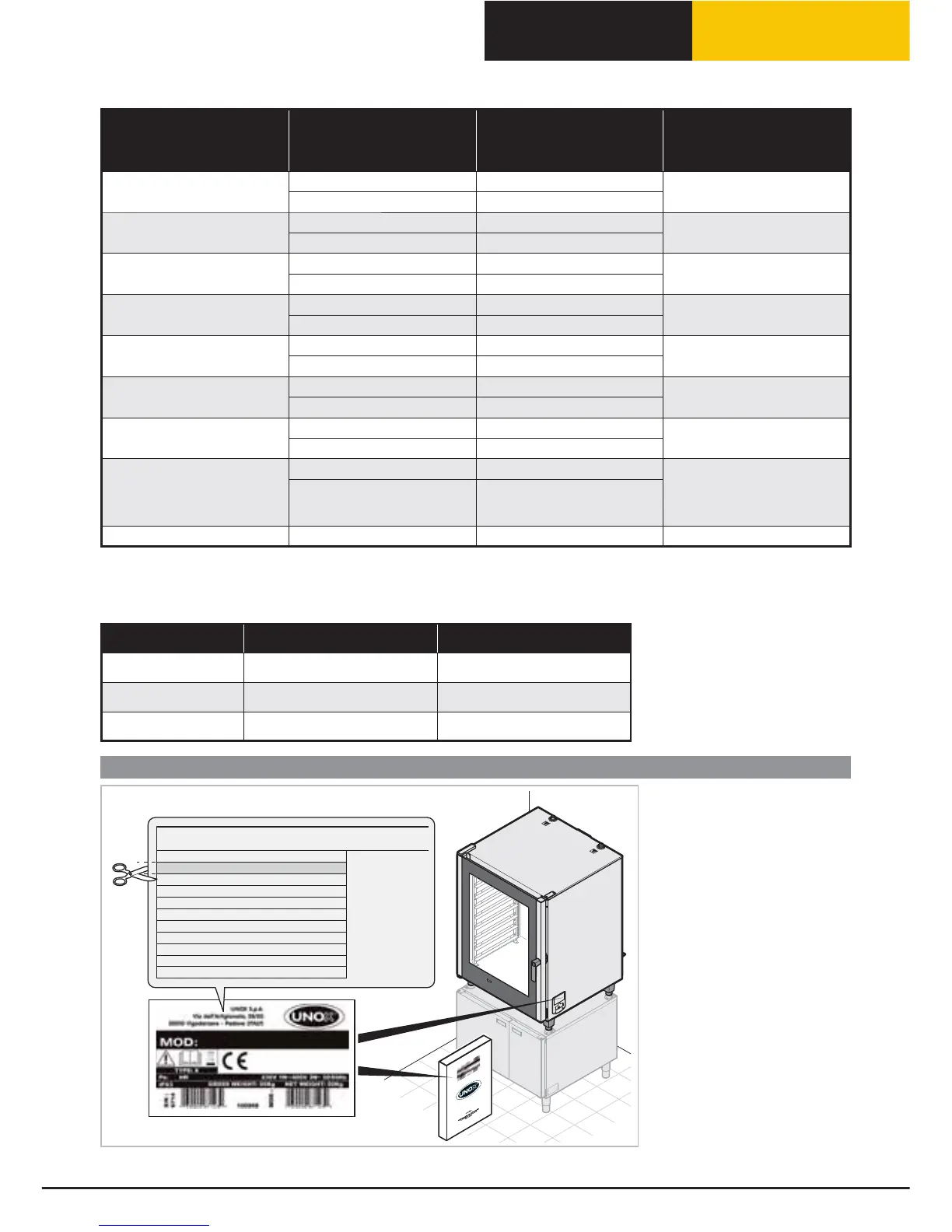

Table C
MODELS
GAS
column A
Ø INIJECTOR
[1/100 mm]
column B
BUSHING B DIS-
TANCE
column C
XBC615EG
G20, G25, G25.1
345
H = 39mm
G30, G31
225
XBC815EG
G20, G25, G25.1
375
H = 39mm
G30, G31
235
XVC315EG
G20, G25, G25.1
275
H = 39mm
G30, G31
180
XVC515EG
G20, G25, G25.1
330
H = 39mm
G30, G31
215
XVC715EG
G20, G25, G25.1
360
H = 39mm
G30, G31
230
XVC1215EG
G20, G25, G25.1
345
H = 39mm
G30, G31
225
XVC2015EG
G20, G25, G25.1
375
H = 39mm
G30, G31
235
XVC915EG
XVC1015EG
XBC915EG
XBC1015EG
G20, G25, G25.1
340
H = 39mm
G30, G31
225
XVC4015EG
G30, G31
225 H = 39mm
Gas nozzles G30 and G31 are installed on all models
Table D - Gas valve outflow pressure
GAS MAX pressure[mbar] MIN pressure[mbar]
G20
14,2 ± 2%
7
G 25 - G25.1
21,2 ± 2%
10
G30 - G31
26,2 ± 2%
13
SETTINGS LABEL
LI2293A0 - Stampato: 01-2012
w
w
w
.
un
o
x
.
co
m
XBC
For technician: cut and paste the correct current setting label
Per l’installatore: tagliare ed attaccare la corretta etichetta di settaggio
2E G20 20 mbar
2E+ G20/G25 20/25 mbar
2H G20 20mbar
2H G20 25 mbar
2L G25 25 mbar
2LL G25 20 mbar
2S G25.1 25 mbar
3+ G30 /G31 28-30/37 mbar
3B/P G30 /G31 28-30 mbar
3B/P G30 /G31 37 mbar
3B/P G30 /G31 50 mbar
GAS PARAMETER
ADJUSTMENTS AT
At installation and after
every adaptation to gas
type, remove the indelible
sticker shown in the figure
from the Starter Kit and
cut out the settings label
that has the new gas pa-
rameters. The sticker must
be applied onto the data
plate.
BakerTop
™
ChefTop
™
English
29
