scale of 2 x C, the wall doesn’t obstruct air flow.
If two devices are to work adjacent to each other and condenser and condenser surfaces are to face each
other, the distance in-between should be higher than 2 x C +300 mm.
If the device is to work on a mezzanine floor, condenser air duct slice should be at least 1.5 fold of fan inlet
diameter.
If the device is to work on a porch or
near somewhere like a porch, a distance
of at least 1.2 fold of the porch
protrusion should be lest between the
device and wall.

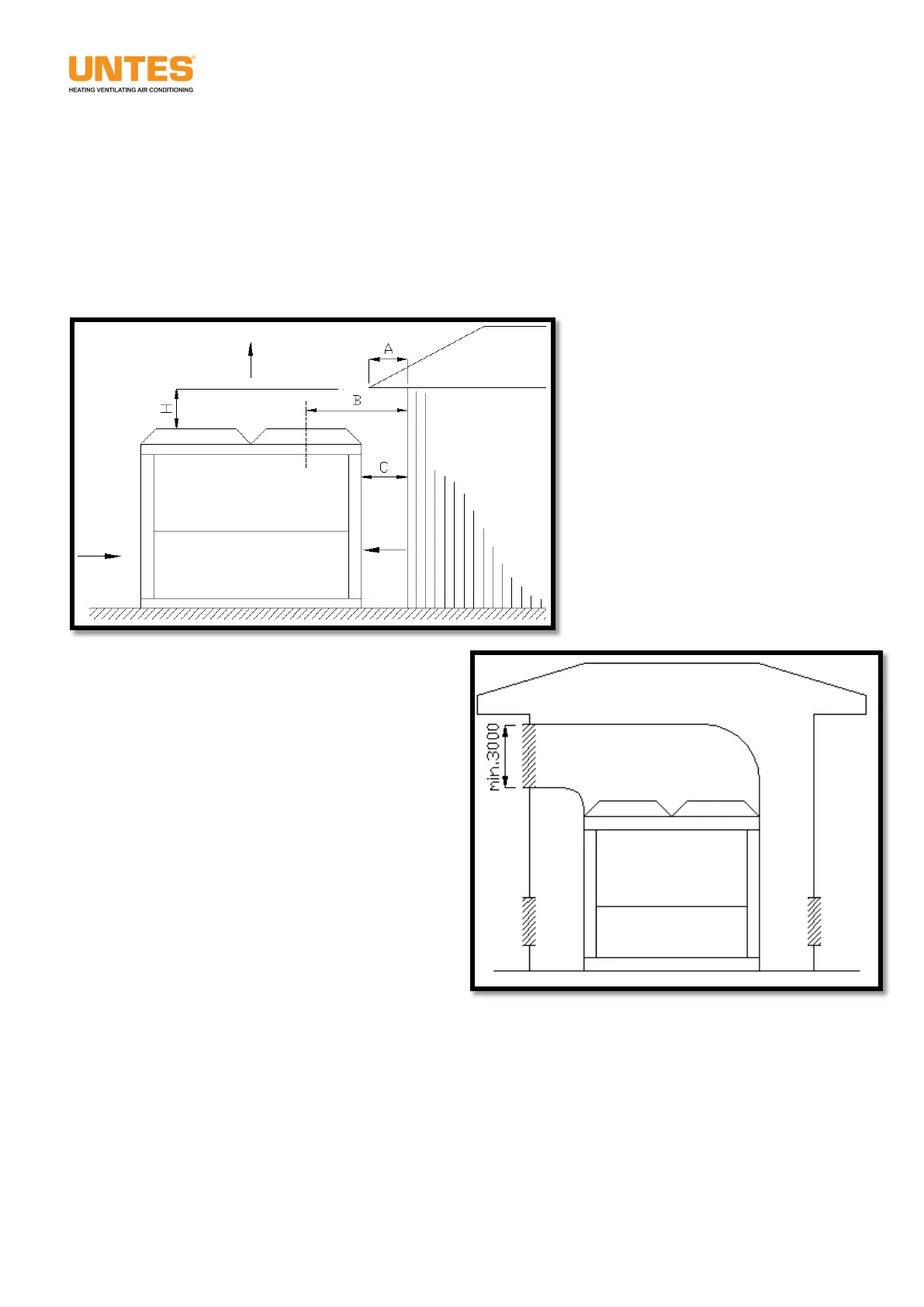

IF H > 1 M,
THEN B > A.
IF H < 1 M,
THEN C > A.
The height ‘H’ not being less than 3 meters for
semi-closed environments is very important for the
device to work effectively.
If the device is to work on snowy weather, a snow-shield should be put on the condenser side of the device.
The snow-shield’s surface area should be at least 1.2 fold of the condenser’s surface areas.
WARNİNG: Condenser surface of the device should absolutely be protected from snow. Snow shouldn’t be
let to cover condenser’s surface.
