UNTES URTP055 - With Side Output Exhaust Fan

26
4.2.2. With Side Flow Exhaust Fan

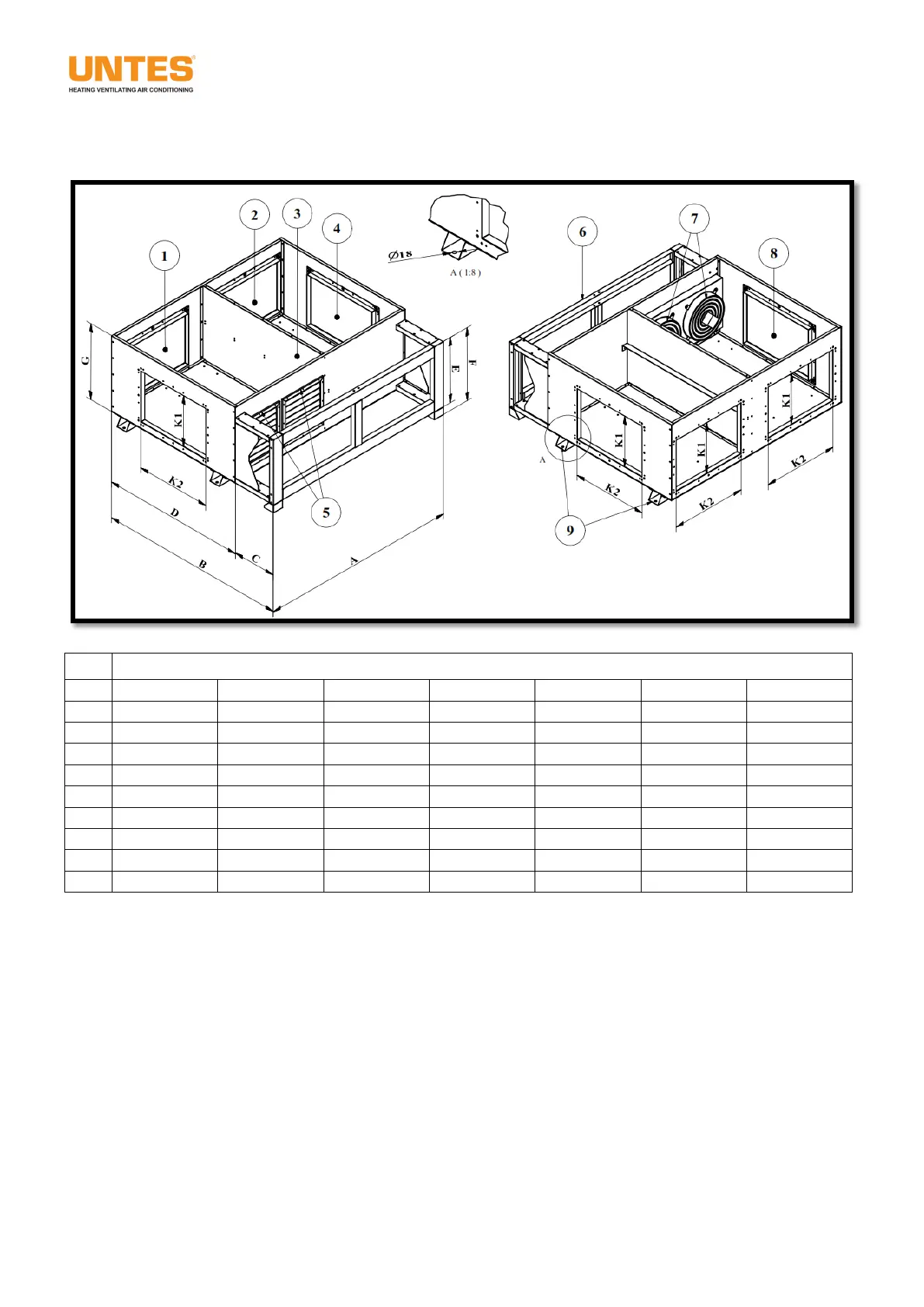

ROOF CONNECTOR WITH SIDE OUTPUT AND AXIAL EXHAUST FAN
55
70
90
110
140
180
230
A
1619
1619
1834
1834
1988
1988
2179
B
1366
1366
1748
1748
2358
2358
3081
C
402
402
415
415
640
640
889
D
964
964
1333
1333
1718
1718
2192
E
610
610
610
610
610
610
610
F
680
680
680
680
680
680
680
G
700
700
700
700
700
700
700
K1
475
475
475
475
475
475
475
K2
624
624
707
707
766
766
840
󰪦 Alternative duct connection of absorption air 1
󰪧 Alternative duct connection of blow air 1
󰪨 Partition metal sheet of absorption and blow air
󰪩 Alternative duct connection of blow air 2
󰪪 Exhaust gravity damper
󰪫 Balance Connection Extension
󰪬 Axial Exhaust Fans
󰪭 Access panel of exhaust fan
󰪮 Roof Connection’s mounting holes on the
ground
