7.2. Gas Connection
Gas connection of the device’s gas firing unit should be provided suitably to the gas pass equipments
described below and in the right alignment.
IMPORTANT: Gas connections should be made with gas pipes in compliance with local rules. Tightening
torque values for gas pipes are as follows.
-Ø ¾”: 150Nm. / -Ø 1”: 200Nm. / -Ø 1 1/2”: 300Nm.

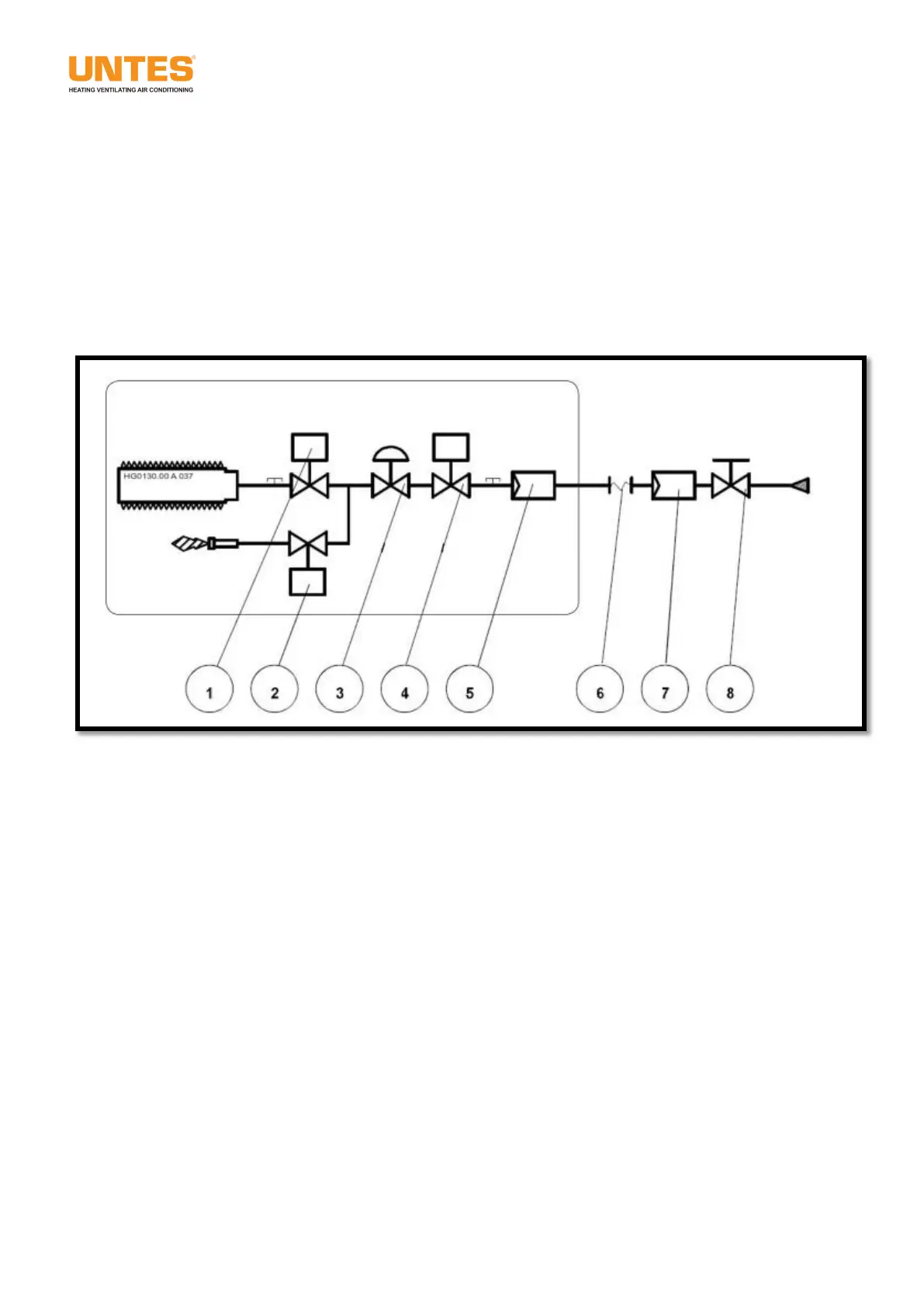

Standard equipments within the device;
Main burning gas solenoid valve
Pilot light gas solenoid valve
Pressure compensating regulator
Safety gag solenoid valve
Small gas filter
Equipments to be adjusted to the device’s gas
pass;
Vibration isolator connection
Gas filter
Gas valve
