Equipments for inner device;
󰪦 Hot Water Coil
󰪧 Three-Way Valve Motor
󰪨 Three-Way Valve By Pass Valve
󰪩 Three-Way Valve
Equipments for outer device;
󰪪 Air Discharge Purge
󰪫 Connection Union
󰪬 Outlet Line Temperature Thermometer
󰪭 Inlet Line Cut-Off Valve
󰪮 Manometer Interference Cut-Off Valve
󰪯 Manometer
󰪰Manometer Interference Cut-Off Valve
󰪱 Discharge Tap
󰪲 Inlet Line Temperature Thermometer
󰪳 Sediment Catcher
󰪴 Dirt Catcher
󰪵 Inlet Line Cut-Off Valve
󰪶 Hot Water Inlet Line
󰪷 Hot Water Outlet Line

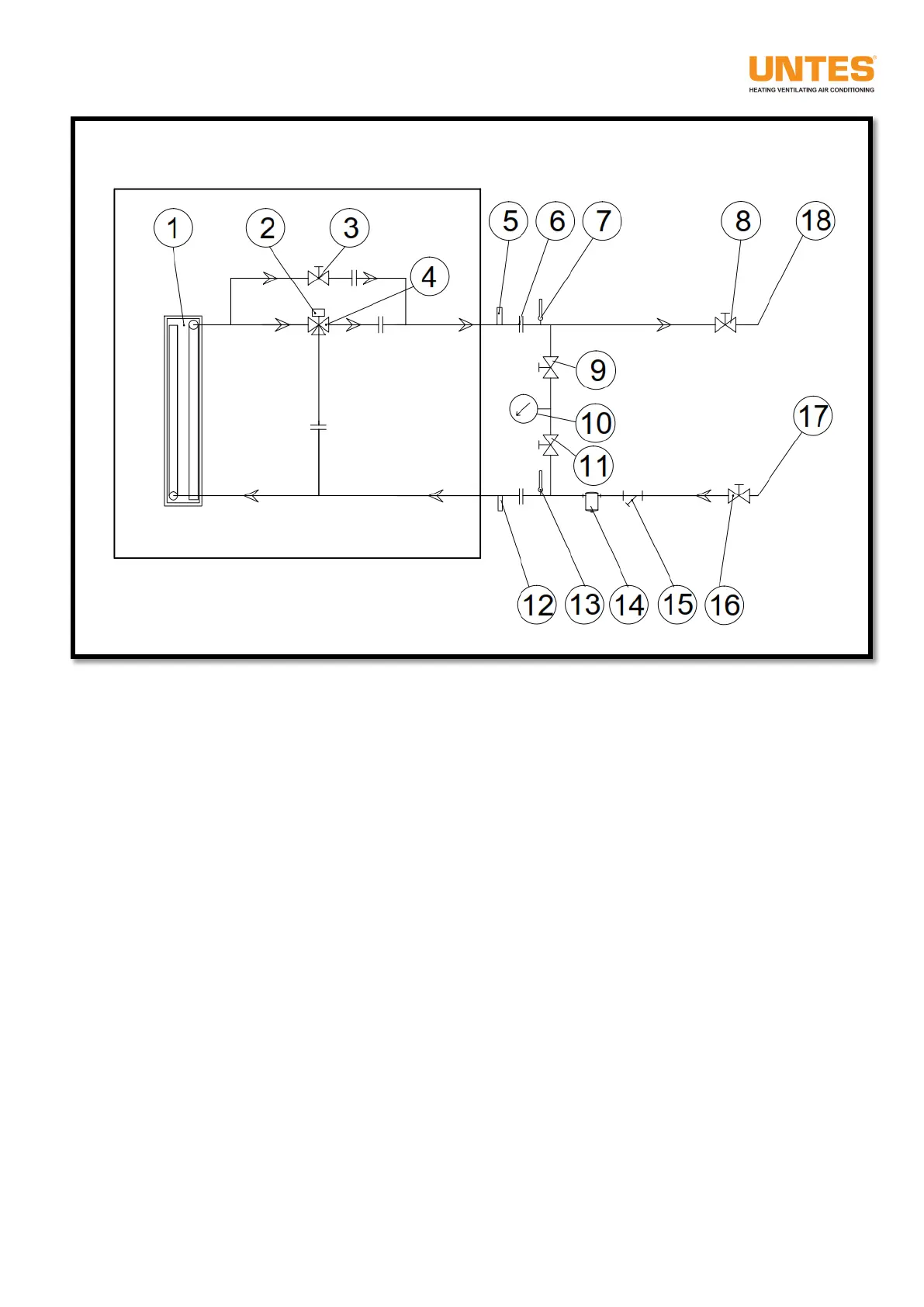

The placement information for the additional hot water coil device is as follows.
