Uponor Smatrix Wave

Caution!
If Heat pump integration is deactivated make sure that
it also is deactivated in the heat pump. Otherwise it may
affect the operation of the heat pump.
Uponor Smatrix Wave/Wave PLUS/Base PRO
1
SI0000170
Integration
GPI: Heating/Cooling switch
Integration
GPI: Heating/Cooling switch
HP integration: Inactive
2
SI0000171
~10 sec
Integration
GPI: Heating/Cooling switch
HP integration: Inactive
HP integration: Inactive
ActiveInactive
HP integration
3
SI0000172
HP integration: Active
ActiveInactive
HP integration
HP integration: Inactive
ActiveInactive
HP integration
HP integration: Active
ActiveInactive
HP integration
Dynamic heatcurve: Inactive
Response: Slow
Pulse input: Inactive
HP integration
4
SI0000173

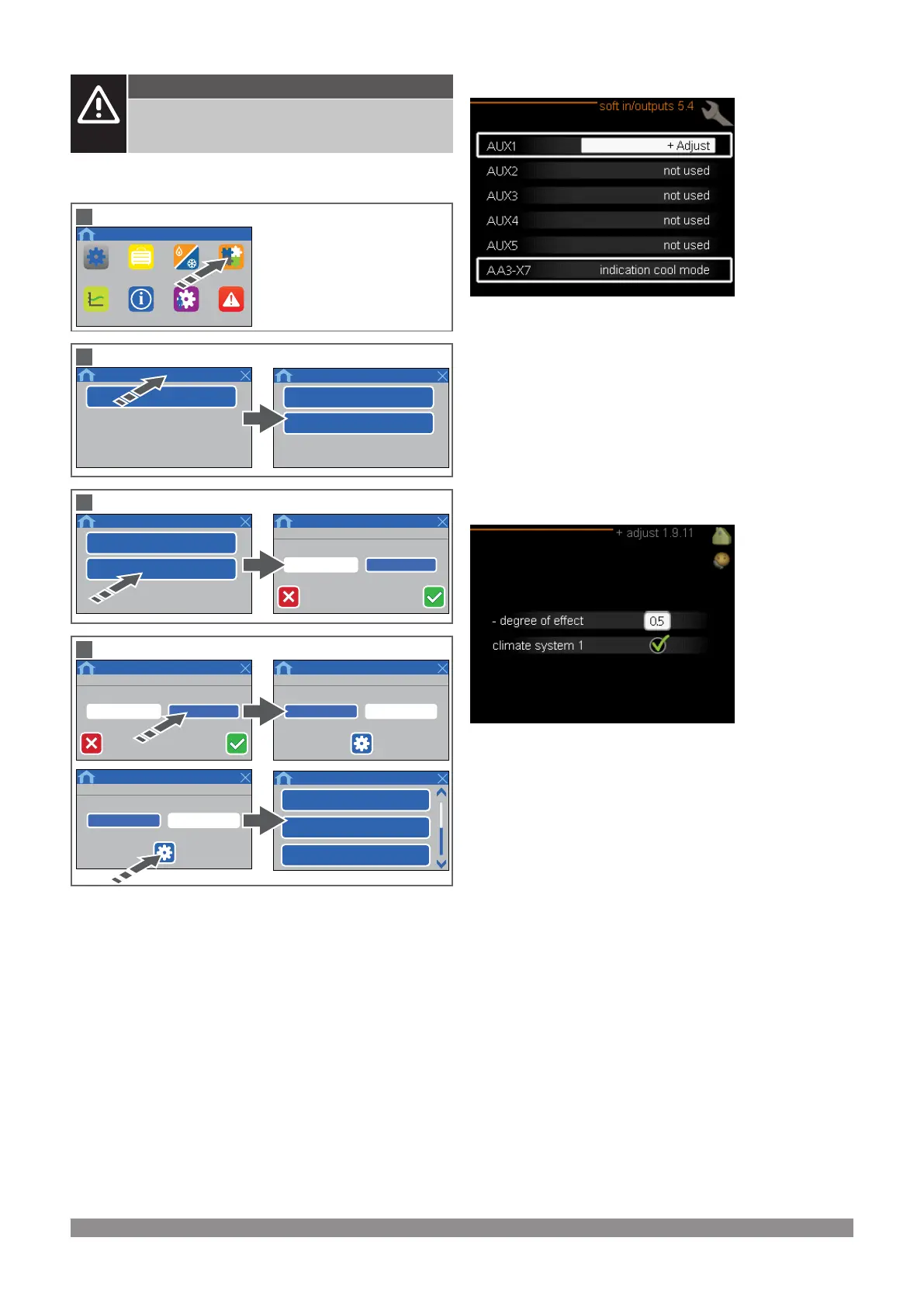

The Heat pump integration menu is normally hidden on the Uponor
Smatrix Interface (I-147 or I-167).
To activate heat pump integration :
1. Go to menu Integration.
2. Press and hold on the menu title Integration until HP
integration: inactive appears in the list.
3. Go to submenu HP integration.
4. Press Active. The function is activated in the Uponor system,
and new settings are available.
See installation and operation manual for the controller for more
information.
NIBE heat pump/indoor module
Illustrations of NIBE products and and their components are subject to ©NIBE.
To activate + Adjust (heat pump integration) in the NIBE heat pump/
indoor module:
See heat pump/indoor module manual for more information.
1. Go to menu 5.4 ― soft in/outputs located in the service menu
(hold the back button for about 7 seconds while in the main
menu).
2. Select the same AUX input as the wires are connected to.
3. Press the OK button.
4. Change the setting to + Adjust .
5. Press the OK button to confirm the change.
The new menu 1.9.11 ― + Adjust is now available. In this menu
the degree of effect on the supply temperature calculations can
be set between 0.0 and 1.0 (default 0.5) and which NIBE climate
systems will be affected. Preferably the climate system where
the underfloor heating is connected.
6. If the heat pump is heating/cooling master (decides when to
switch between heating and cooling) set AA3-X7 to indication
cooling mode.
Uponor Smatrix Heat Pump Integration to NIBE products
|
Quick Guide
|
5
