4. With the engine running, push the Steering Switch RIGHT and set the pressure to 80 bar (1200 psi) maxi-
mum.
5. Replace the valve plug.
6. Remove the gauge and reinstall the hose.
Axle Center Switch (Figure 0-6)
1. Check tires for proper pressure.
2. Place the work platform on a level surface with the front and rear axles parallel (on the same plane).
3. Adjust the switch so it is centered in the front axle actuator linkage. When centered, the switch will close the
circuit.
4. Test the switch function by positioning the front axle off-center and raising the platform 2 m above the
ground. The work platform should not drive. Retest with axle off-center in the opposite position.

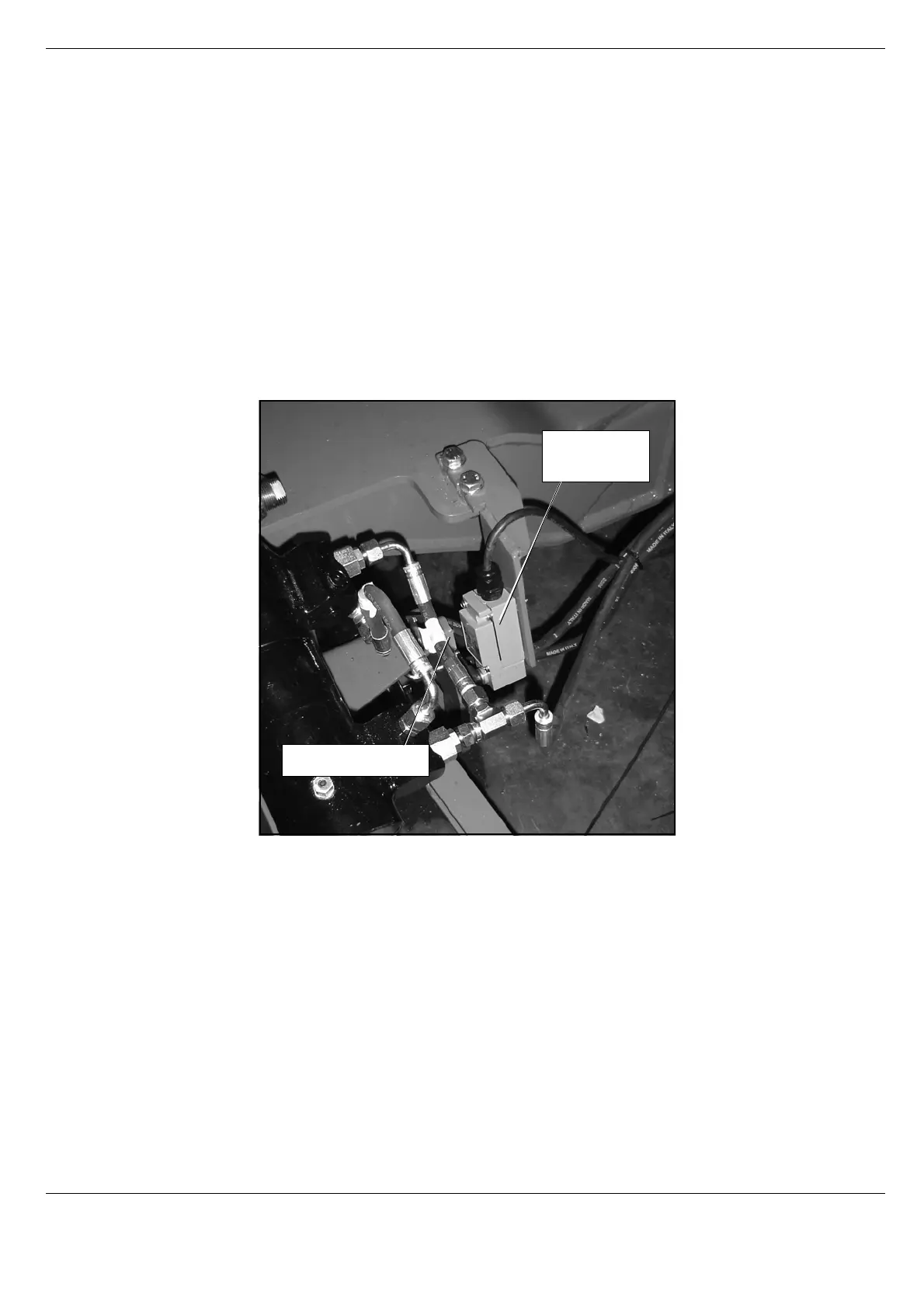

Figure 0-6: Axle Center Switch
Axle Centre
Switch
Actuator Linkage
To Next Page
