Service and Repair
3-12
Down Proximity Switch (Figure 0-7)
The down limit switch is a dual proximity switches which allow the machine to run at HI speed when the plat-
form is lowered.
1. Raise the platform 30 cm (12 in.) from its’ fully lowered position.
2. Disconnect the wires at the proximity switches and connect an ohmmeter or continuity tester.
3. Place a piece of steel across the receiver end to varify the switch is functioning correctly.
4. Disconnect ohmmeter and reconnect wires.
5. Lower platform.

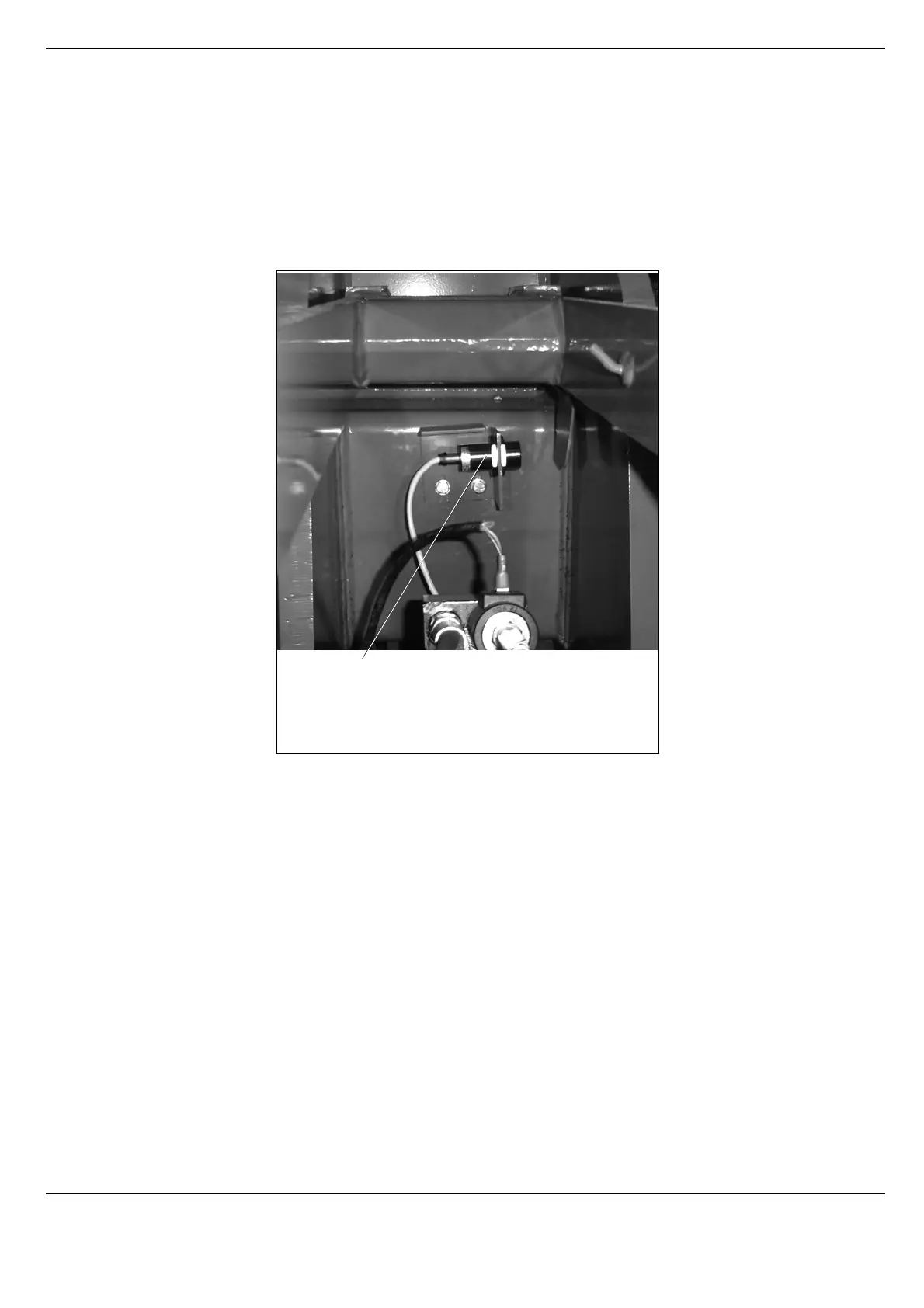

Figure 0-7: Limit Switch Location
Down Proximity
Switch
