UPS Valencia - Pergola Materials Overview

4
12 x16 Flat Top Pergola
Top View
Front ViewSide View
6
1
2
4
3
7
9
5
15
13
8
11 12
14
16
10 17
192 in [488 cm]
88 1/2 in [225 cm] 88 1/2 in [225 cm]
87 3/4 in [223 cm]
107 1/8 in [272 cm]
144 in [366 cm]
93 7/8 in [238 cm]
1 1/2 in [4 cm] Gap For
2x6 Ledger Board
157 3/4 in [401 cm]
219 1/2 in [558 cm]
18

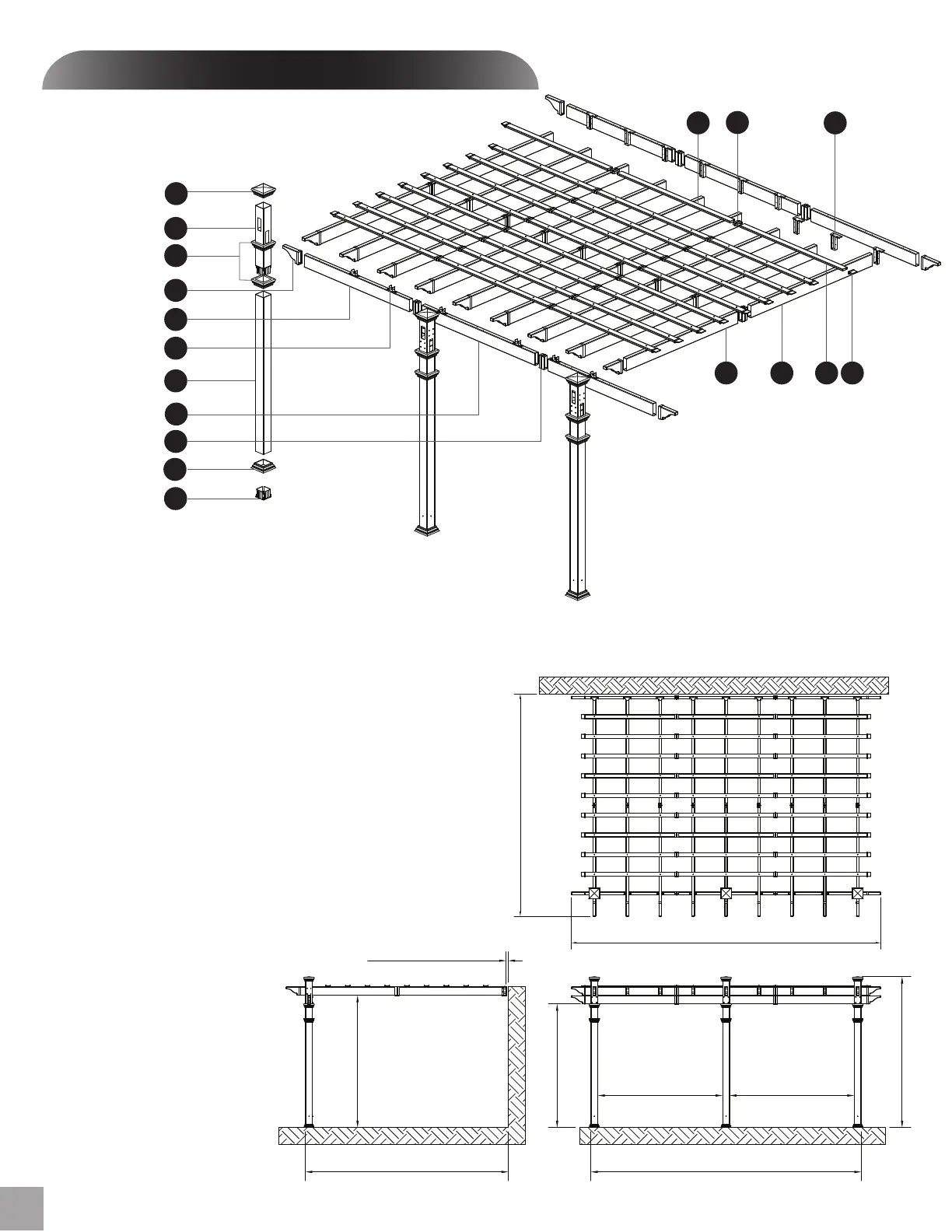

Pergola Materials Overview
1. Post Caps (3) - 5” Sq
2. Main Column Tops (3)
3. Post Trims (6)
4. Rafter & Beam Decorative End Caps (13)
5. Main Support Beams with pre-drilled holes on top - Inner (2)
6. Main Support Beams with pre-drilled holes on top - Outer (4)
7. Beam & Rafter Joiners (13)
8. Main Column Bottoms (3)
9. Rafter Brackets (6)
10. Rafters - Outer (9)
11. Rafters - Inner (9)
12. Shade Slats - Outer (18)
13. Shade Slats - Inner (9)
14. One Way 4”x4” Internal Wood Post Guide (3)
15. Shade Slat Joiners (18)
16. Rafter Hanger (9)
17. Shade Slat Decorative End Caps (18)
18. Base Trim Caps (3)
