Check Boxes (Total of 5) for These Contents
8
Not to Scale
5
12 x 16 Flat Top Pergola
2
1
3
7
4
14
9
15
16
Tools You Will Need
• Level
• Hammer
• Tape Measure
• String Line
• Wood Stakes (4)
(temporary support for string line)
• Step Ladders (2)
• Cordless Drill
Tools You May Need
• Circular Saw with Fine Tooth Blade
• Framing Square
5
6
10
11
12
18
17
13
5” x 5” x 76”
2” x 6” x 70” (5.1x15.2x177.8cm)
2” x 6” x 65 1/4” (5.1x15.2x165.7cm)
2” x 6” x 69 1/4” (5.1x15.2x175.9cm)
2” x 6” x 75 3/8” (5.1x15.2x191.5cm)
7/8” x 3” x 65 1/4” (2.2x7.6x165.7cm)
7/8” x 3” x 70” (2.2x7.6x177.8cm)
5” x 5” (12.7x12.7cm)

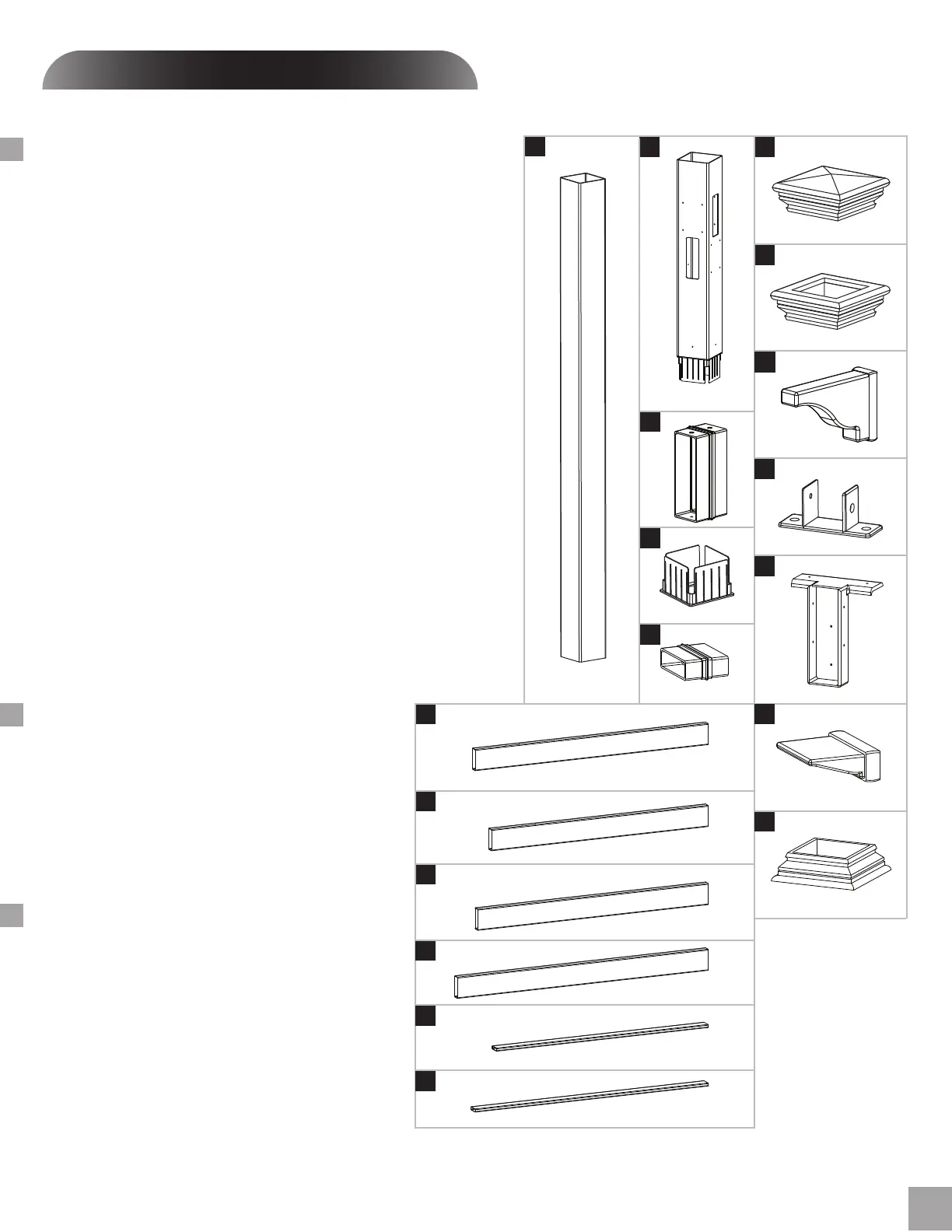

Pergola Materials Breakdown
In the event of missing or defective parts please call our customer service
dept.
1. Post Caps (3)
2. Main Column Tops (3)
3. Post Trims (6)
4.
Rafter & Beam Decorative End Caps
(13)
5. Main Support Beams with pre-drilled holes on top - Inner (2)
6. Main Support Beams with pre-drilled holes on top - Outer (4)
7.Beam & Rafter Joiners (13)
8. Main Column Bottoms (3)
9.
Rafter Brackets
(6)
10. Rafters - Outer (9)
11. Rafters - Inner (9)
12. Shade Slats - Outer (18)
13. Shade Slats - Inner (9)
14.
One Way 4”x4” Internal Wood Post Guide
(3)
15.
Shade Slat Joiners
(18)
16.
Rafter Hanger
(9)
17.
Shade Slat Decorative End Caps
(18)
18.
Base Trim Caps
(3)
