Urive A5 - Page 15

15 ... User's Guide

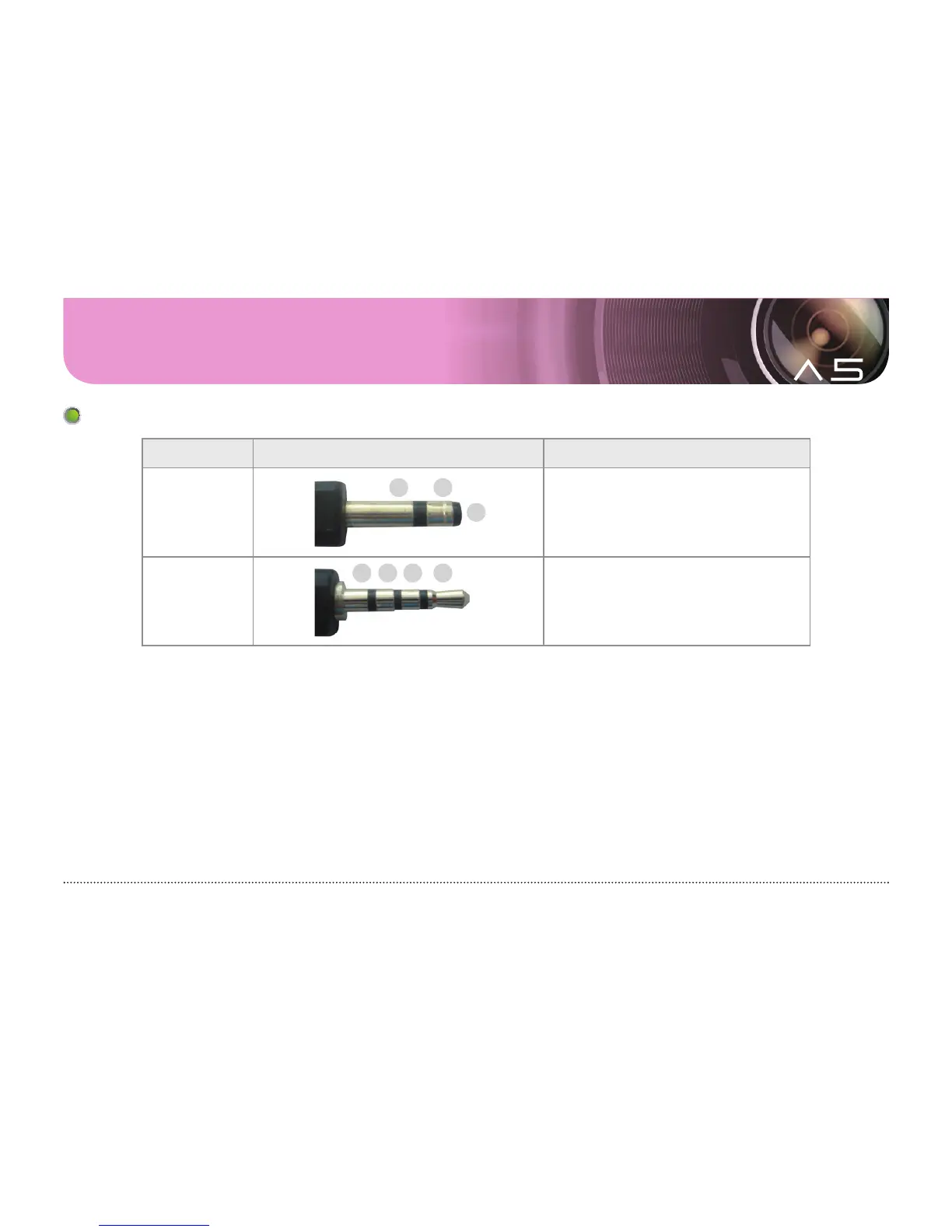

06. Name of each part (Socket pin arrangement)
Sockets Images of sockets pin arrangement
Power socket
(DC ocket)
①
GND
②
ACC
③
BAT(B+)
GPS socket
(2.5 pi)
①
VCC(3.6~6V DC)
②
Rx
③
GND
④
Tx(GPS Signal Output)
1
2
1234
3
Socket pin arrangement
