APARTMENT DOOR PHONE STATIONS
sec.3a
−−−−
9
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual

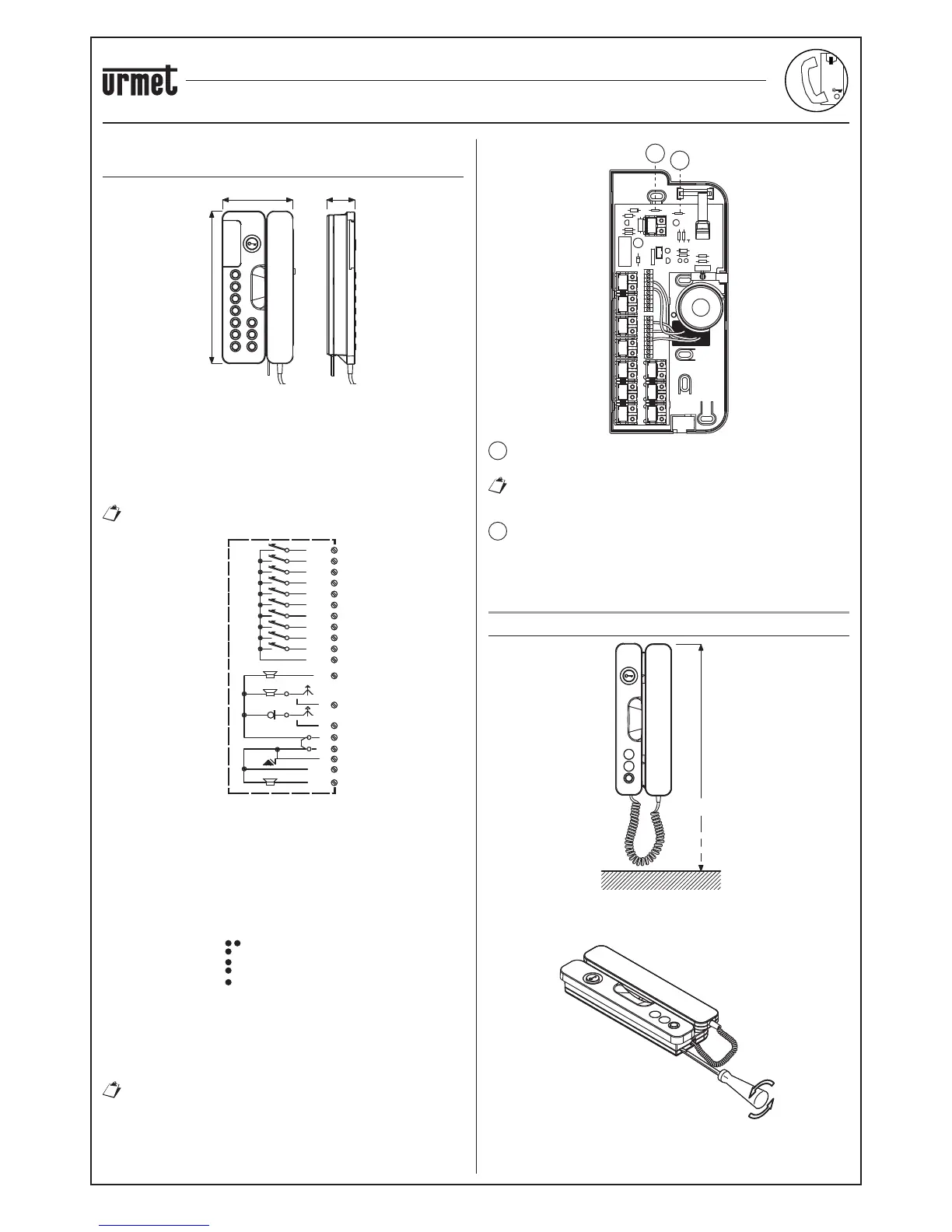

DOOR PHONE WITH 10 ADDITIONAL BUTTONS
Ref. 1140/12
225 mm
106 mm 42 mm
Ref. 1140/12 door phone has the same electric features as the basic
door phone; it is provided with 10 buttons for intercom service (in
addition to the door lock release button).
• A buzzer, used to differentiate the call coming from the door unit
fromtheonecomingfromintercomdevices.
• StandardringtonevolumeadjustmentandMutefunction.TheMute
functionisindicatedbyaredag,thatcomesoutfromtherightside
of the cover.
The call buttons can command a load with 500mA current
consumption max.
P2
U10
U9
U8
U7
U6
U5
U4
U3
U2
U1
G/T
AP
ALT CH
ALT
MIC
6
P1
2
1
CA
10
9
-/~
+/~
BUZZER
2 Door phone microphone signal
1 Door phone speaker signal
9 Door opener control
10
}
Power ground (jumped with P1)
6
CA Door phone call signal
+/~ Buzzer power supply positive
-/~ Buzzer power supply ground (short-circuited with terminal
pin 10 through P2)
G/T Buttons common
U10 Button contact
U9 Button contact
U8 Button contact
U7 Button contact 7
U6 Button contact 6
U5 Button contact 5
U4 Button contact 4
U3 Button contact 3
U2 Button contact 2
U1 Button contact 1
Ref. 1140/12 door phone is already equipped with a buzzer for
differentiated call (terminal pins +/~ and -/~).
In case of installation in systems with relay devices Ref. 788/51
and Ref. 788/54 NO resistors must be installed on the terminal
pins. This 270Ω 1/2W resistor is already embedded in the
buzzer circuit.
P1
P2
P1
Connection jumper between terminal pins 6-10, cut in case of
intercom system.
The jumper P1 short-circuits a 1N4007 diode, so in intercom
systems no external diodes are needed.
P2
Connection jumper between terminal pins 10 and -/~; cut to
separate the buzzer ground from the door phone ground.
INSTALLATION
WALL VERSION
1,55 m circa
To remove the cover of the door phone, insert the tip of a screwdriver
intheareaindicatedandapplypressure.Extractthecoverrotatingthis
on the upper tabs.
Thedoorphonecanbettedonthewallusingthedifferentholeson
thebaseandthespecialplugsandscrewsprovidedwitheachset.
SIGNO DOOR PHONE
INSTALLATION
SIGNO DOOR PHONE
