16
−−−−
sec.5
ONE-FAMILY AND TWO-FAMILY KITS
DOOR PHONE AND VIDEO DOOR PHONE SYSTEM: Product Technical Manual

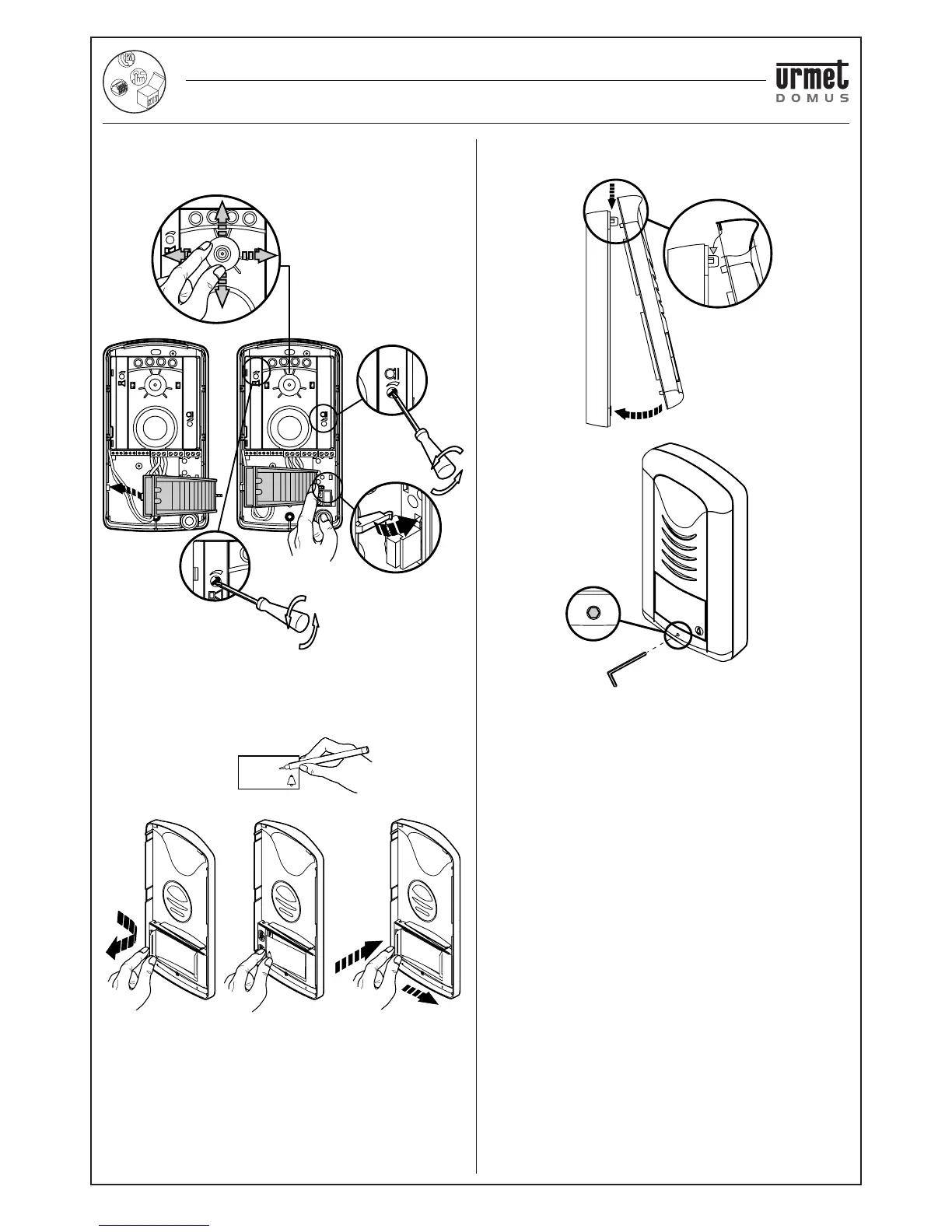

• Fasten the name tag light circuit making the wires pass under neath
the support; then adjust volume and camera position.
NOTE: volume is calibrated to optimal values during production.
Change the settings when needed only.
• Write the name on the name tag and insert in the housing.
• Insert the front part of the panel on the base and fasten it with the
socket head screw using the wrench (2mm) provided.
CLICK
5°
10°
5°
5°
Rossi
Rossi
CLICK
ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE
CAMERA UNIT
ONE AND TWO-FAMILY VIDEO KIT Mod. 956 WITH ARTICO VIDEO DOOR PHONE
