DS1093-184A 27

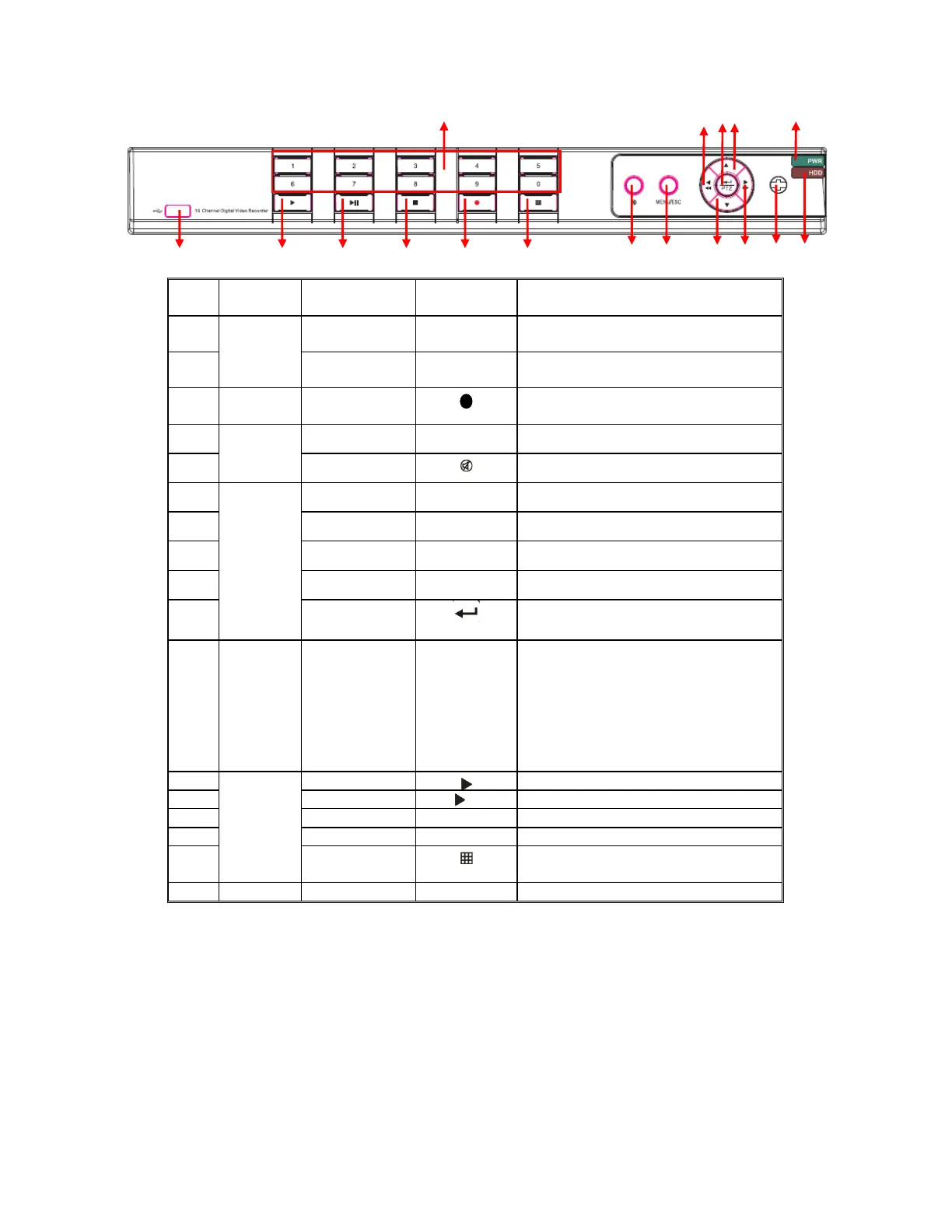

2.1.2 REF. 1093/538P AND 1093/536P HYBRID DVR FRONT PANEL
Item Type
Key title
/Indicator
Marks Function
1
Indicator
HDD indicator HDD
When the “Red” indicator flashes it means
the hard drive is being read or written to.
2 Power indicator PWR
If the “Green” indicator is on the system is
getting power normally.
3
IR
Receiver
Receives IR signal from Remote Control
4
Complex
Key
Menu MENU/ESC
Enter into main menu / Exit
5 Mute
Open or close audio input
6
Direction
Key
UP
Move up
7 RIGHT /
Move right / FWD
8 DOWN
Move down
9 LEFT /
Move left / RWD
10 ENTER
PTZ
Enter into PTZ control, select [Enter] /
[Edit] operation
11
Channel
Select &
numeric
input
Single Channel
and numeric key
Numeric key
0,1-9 and CH
key CH1~9
1. Number 1~9 stand for numeric 1~9
and CH 1~9.
2. CH11-CH16 select method: press
firstly numeric key 1 and then other
numeric key. For example CH16
select firstly press 1, and then press
6.
12
Play
Control
Play
Convert to play status
13 Play/Pause
Convert to play/ pause status
14 Stop
Stop playing and stop manual record
15 Manual record ● Press the button to start manual record.
16 Multi Display
Live display Quad mode, 9-split and 16-
17 USB Port Connect to USB2.0 port
10
11
9
6
2
17
12 13 14
15 16
5
4
8
7
3
1
