1717/31 or 1717/33 Max Pro Touchscreen Monitor mounting height

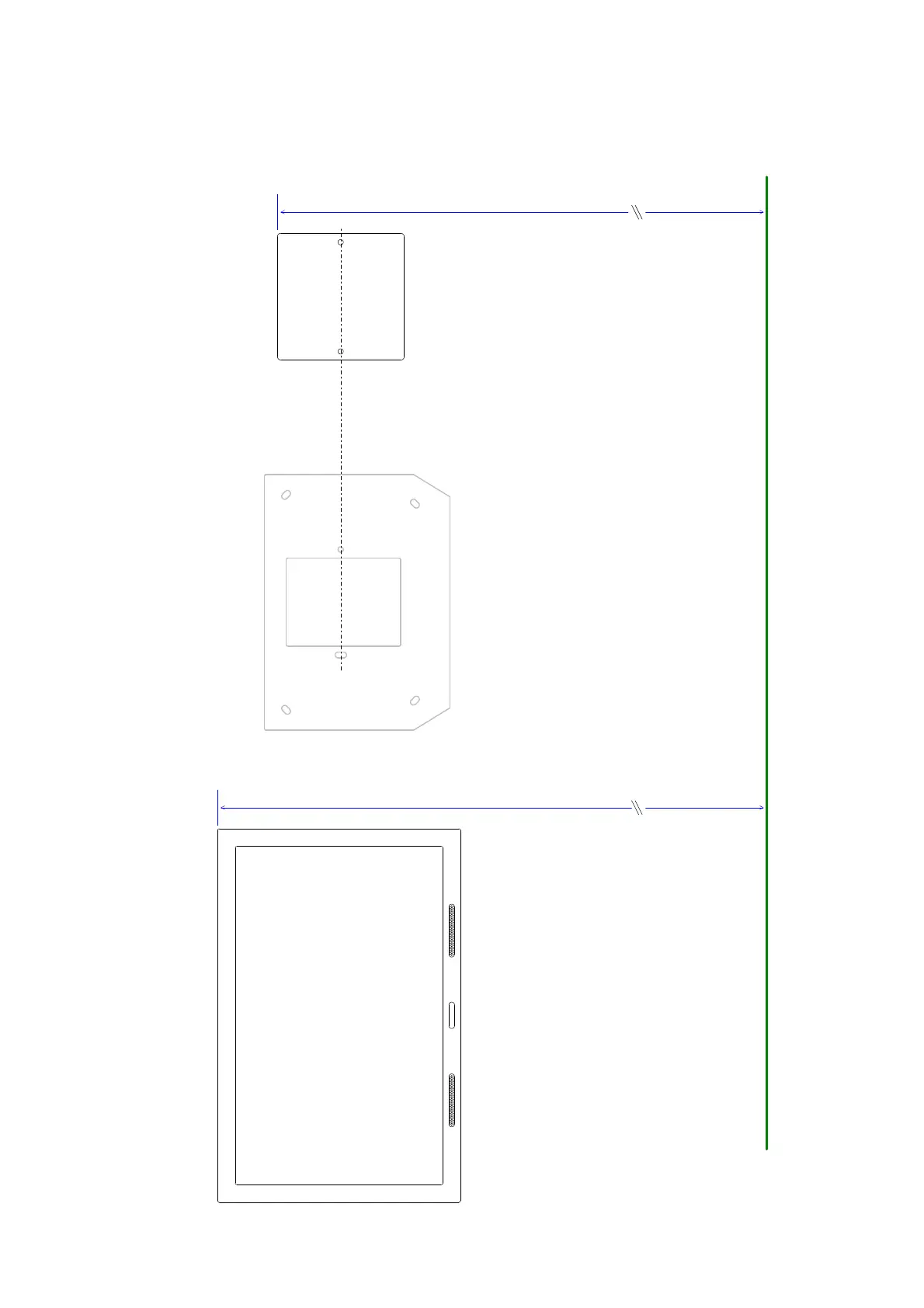

To achieve the recommended
mounting height for the IP MAX
monitor of 1550mm, the top of the
flush mounting electrical box should
be at approximately 1516mm
Mounting bracket
Single gang flush
mounting electrical box.
Recommended depth is
47mm to allow for Cat5e
minimum bend radius
Finished
Floor Level
Max touchscreen monitor
1550mm
1516mm
