urmet domus IPerCom - 1060;82 Proximity Key Reader

NO NC C – Voltage free clean contact lock release output rated at 30V @ 3.5A
V+ V- Input for a local power supply, for use when PoE is not available. 44 – 57V DC @ 200mA
LAN – Network connection to PoE network switch port
SP - A normally closed door contact (going open when the door is opened) can be connected to this input and will
report a ‘Door open’ message at the concierge switchboard (where fitted). By default the input is linked. This link
must be removed if a door contact is being used.
PA - Input for a normally open push to exit switch.
The green loop wire can be used to connect a normally closed tamper switch – see the manual supplied with the
product.

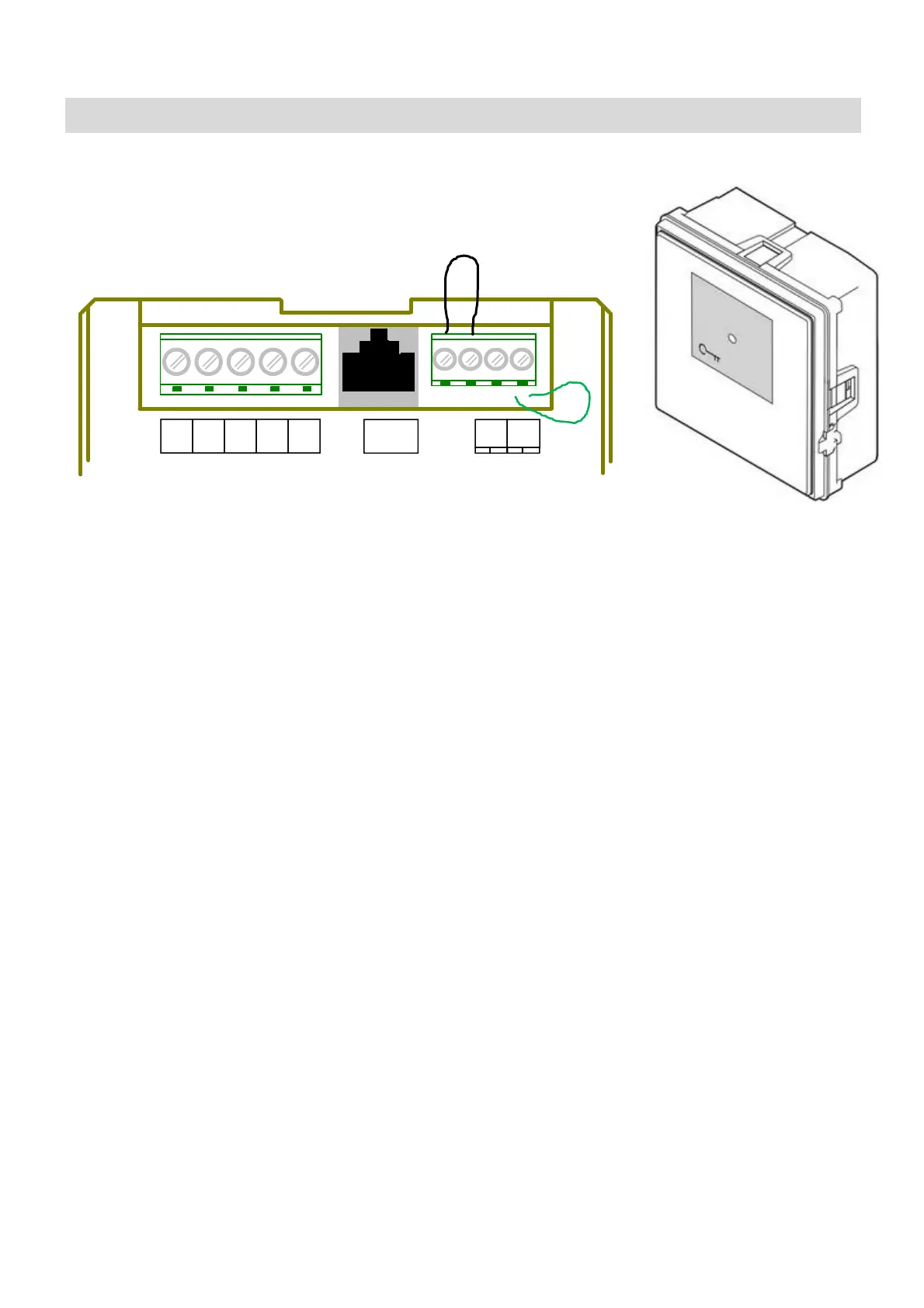

1060/82 proximity key reader module
SP
PA
NO
NC
C
V
-
V+
LAN
