urmet domus IPerCom - 1060;84 Relay Module

PB1 – External normally open clean contact input 1
PB2 – External normally open clean contact input 2
OUT1 – NO NC C - Voltage free clean contact relay output rated at 30V DC @ 5.0A or 250V AC @ 5.0A
OUT2 – NO NC C - Voltage free clean contact relay output rated at 30V DC @ 5.0A or 250V AC @ 5.0A
V+ V- Input for a local power supply, for use when PoE is not available. 44 – 56V DC @ 50mA
LAN – Network connection to PoE network switch port
LED Functions –
Slow blinking = acquisition of IP address in progress.
Steady on = IP address has been obtained

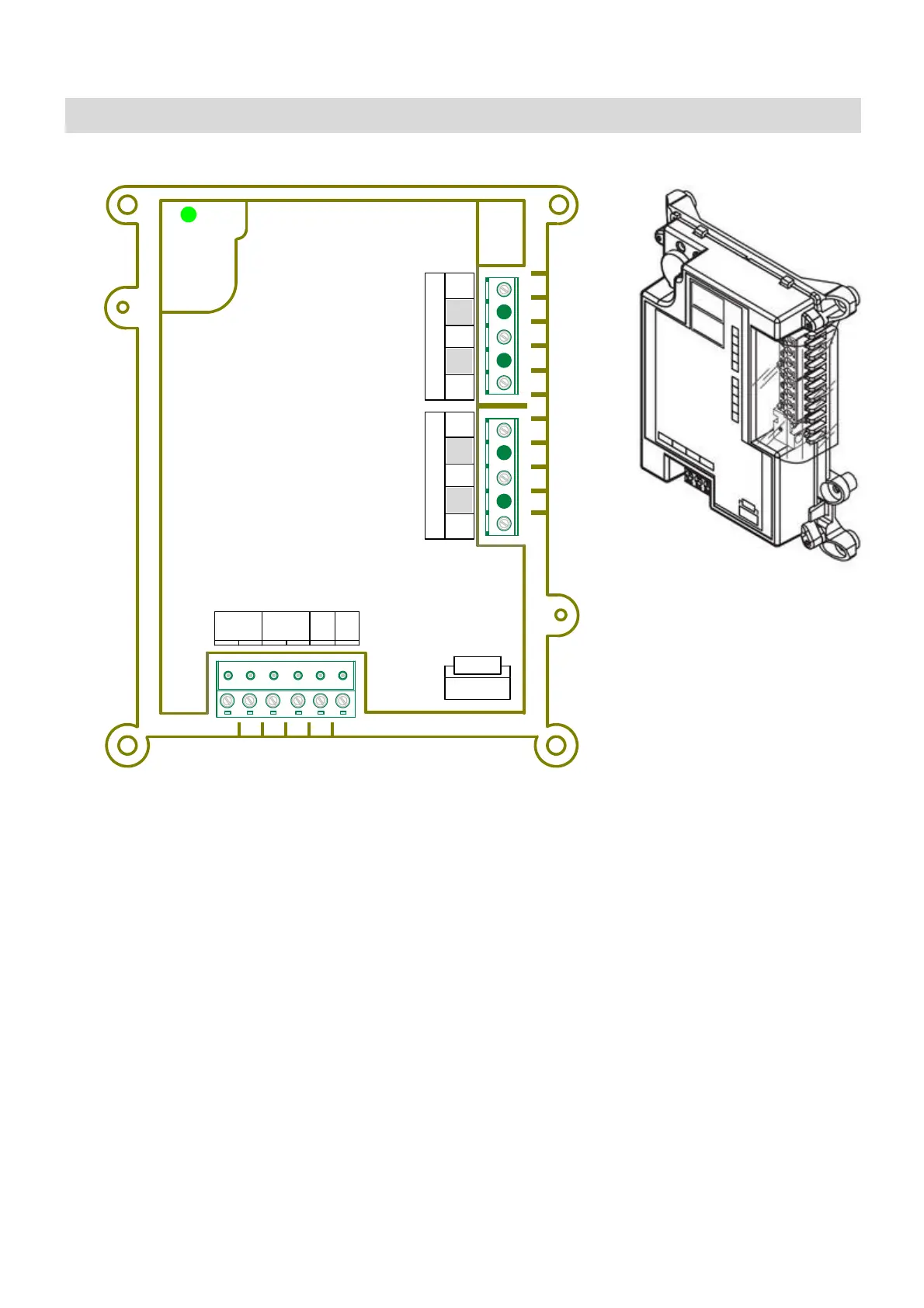

1060/84 Relay Module
LAN
C
NC NO
PB1 PB2 V+ V
-
OUT 1
OUT 2
C
NC
NC
32
