LAN – Network connection to PoE network switch port
SE+ SE- Output for direct connection to a fail secure (fail locked) release.
V+ V- Input for a local power supply, for use when PoE is not available. 44 – 57V DC @ 200mA
ILL - Output to illuminate further button module nameplates
PA - Input for a normally open push to exit switch.
SP - A normally closed door contact (going open when the door is opened) can be connected to this input and will
report a ‘Door open’ message at the concierge switchboard (where fitted).
V5 – External CCTV camera input – Ground
V3 – External CCTV camera input – Signal
AD/ILA – Input for 1158/48 Hearing Aid Module
EXP Connector – Used to connect 1158/12 and 1158/14 Button modules. See the product manual supplied with the
1060/74.
IC2 DIGITAL CONNECTOR – Used to connect 1158/47 DDA Module. See the product manual supplied with the
1158/47.
TLC-EXT – Jumper should be in the ON position if an external CCTV camera is connected to V3 & V5.

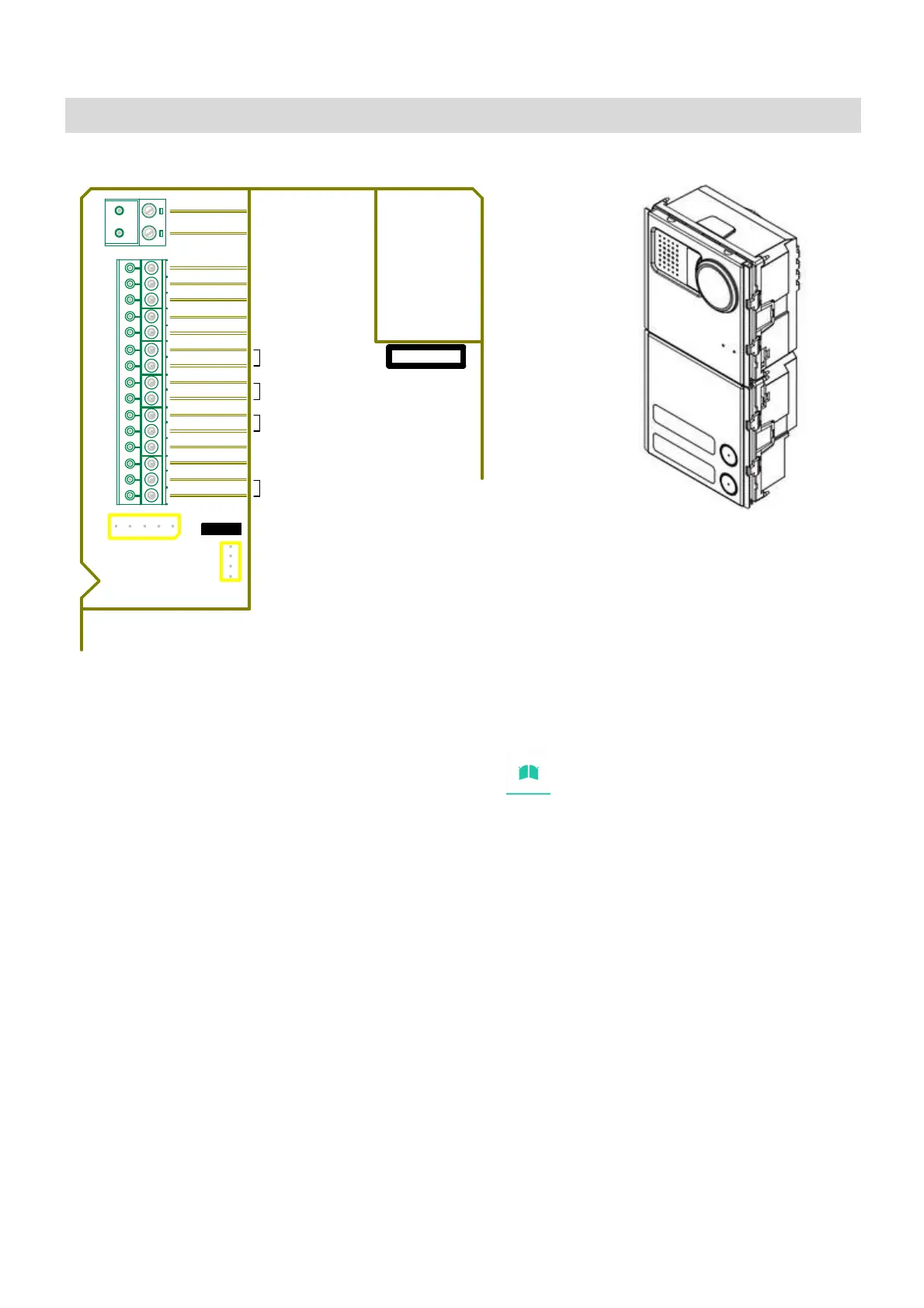

1060/74 Sinthesi Steel entry panel module
SE+
SE-
SE2
C
NC
NO
V
-
V+
ILL
PA
SP
AD/ILA
V3
V5
LAN
SE2
-
C NC NO
-
Voltage free relay output specifically for triggering vehicle automation systems. This
output is triggered by a dedicated button on the Max monitor -
EXP
TLC-EXT
IC2 DIGITAL
CONNECTOR
