The installation should be installed, tested and documented as per the following standards –
European Committee for Electrotechnical Standardisation (CENELEC)
EN 50173 Information Technology – Generic Cabling Systems
CENELEC also produce the EN50174 series of standards that are concerned with the way in which cabling
systems are designed and installed –
Another relevant CENELEC standard is –
British Standards Institute (BSI)
BSI adopts all CENELEC standards and prefix them with their authority code, i.e. EN 50174-1:2009 +
A2:2004 becomes BS EN 50174-1:2009 + A2:2004
BSI also produces its own national standards –
BS6701:2010 states: All telecomminications cabling and telecomminications equipment shall meet the
requirements of the BS EN 50174 series of standards. This relates to both owners of premises (Clause 4)
and installers of telecomminications cabling and telecomminications equipment (Clause 5). Note that the
use of the word ‘shall’ is prescriptive and as such, a legal requirement.
Urmet recommends adherence to the BS EN 50173 and BS 50174 series of standards, together with the
relevent parts of BS 6701 and BS 7671 to ensure a fully compliant installation that conforms to
Network installation and configuration requirements
EN 50173-1:2011 General
requirements
EN 50173-2:2007 + A1:2010
Office Premises
EN 50173-3:2007 + A1:2010 Industrial Premises
EN 50173-4:2007 + A1:2010
Residential Premises
EN 50173-5:2007 + A1:2010 Data Centers
EN 50173-6:
Distributed Building Services
EN 50174-1:2009 + A2:2004
Specification and Quality Assurance
EN 50174-2:2009 + A2:2004 Installation planning & practices inside buildings
EN 50174-3:2013 Installation planning & practices outside buildings
EN 50310:2010 Application of equipotential bonding and earthing in buildings
with information technology equipment
BS 6701:2010 Telecommunications equipment and telecomminications cabling.
Specification for installation, operation and maintenance.
BS 7671 Requirements for Electrical Installations. IET Wiring Regulations
(18
th
Edition).

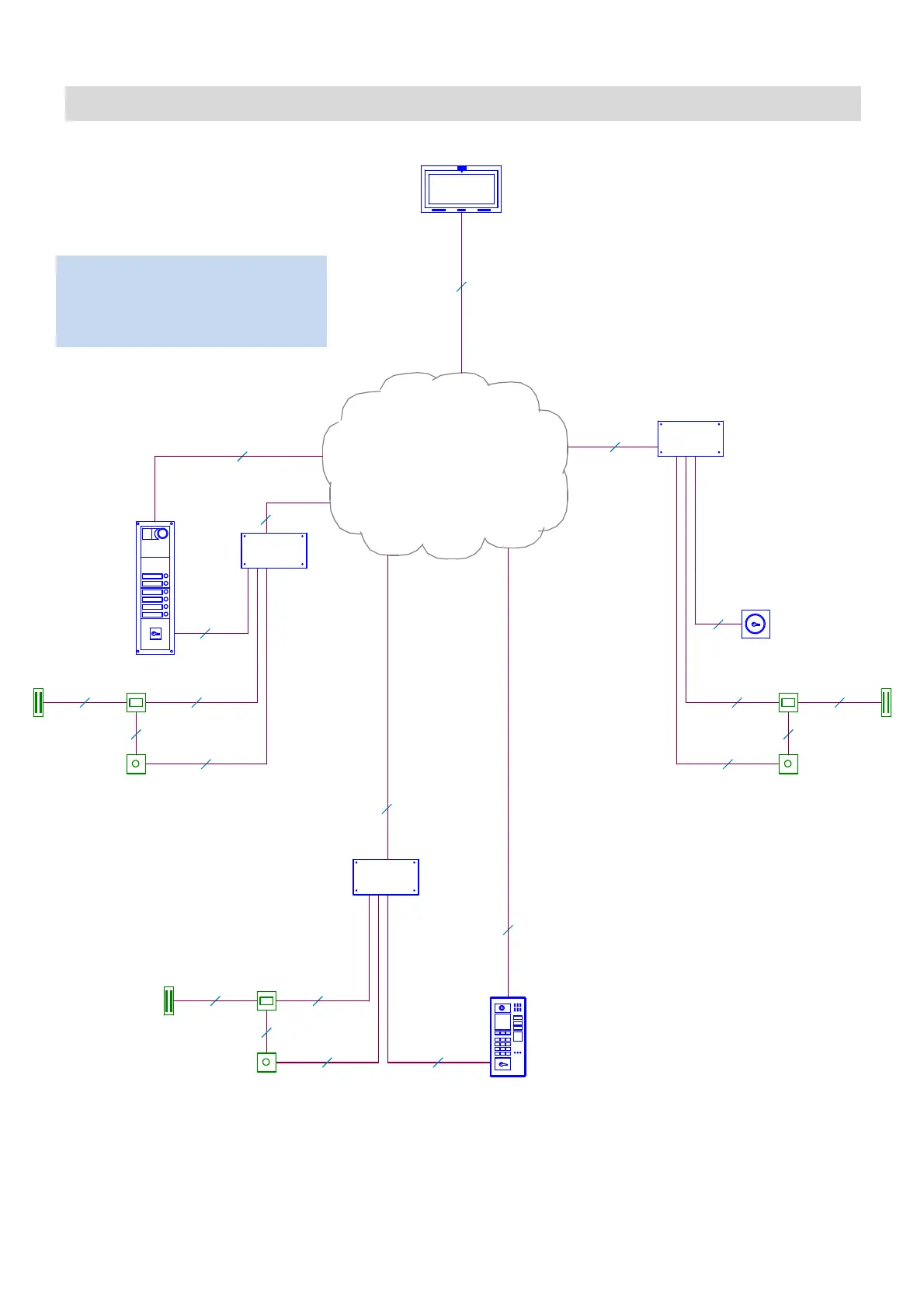

IPerCom with iPassan schematic
This schematic shows the IPerCom
video entry system with iPassan
proximity access control
IP Network
1717/31
1717/33
1717/41
1717/43
2
-
Core cable
Cat5e
Exit switch
Break glass
Maglock
1060/13
1060/18
1060/19
Cat5e
Cat5e
Cat5e
Cat5e
Cat5e
Maglock
Maglock
Exit switch
Break glassBreak glass
Exit switch
iPassan
controller
(including
power
supply)
iPassan
controller
(including
power
supply)
iPassan
controller
(including
power
supply)
Cat5e
Cat5e
2
-
Core cable
2
-
Core cable
4
-
Core cable
2
-
Core cable
4
-
Core cable
2
-
Core cable
2
-
Core cable
2
-
Core cable
2
-
Core cable
2
-
Core cable
4
-
Core cable
2
iPassan
reader
iPassan
reader
iPassan
reader
1060/74
Cat5e
