25

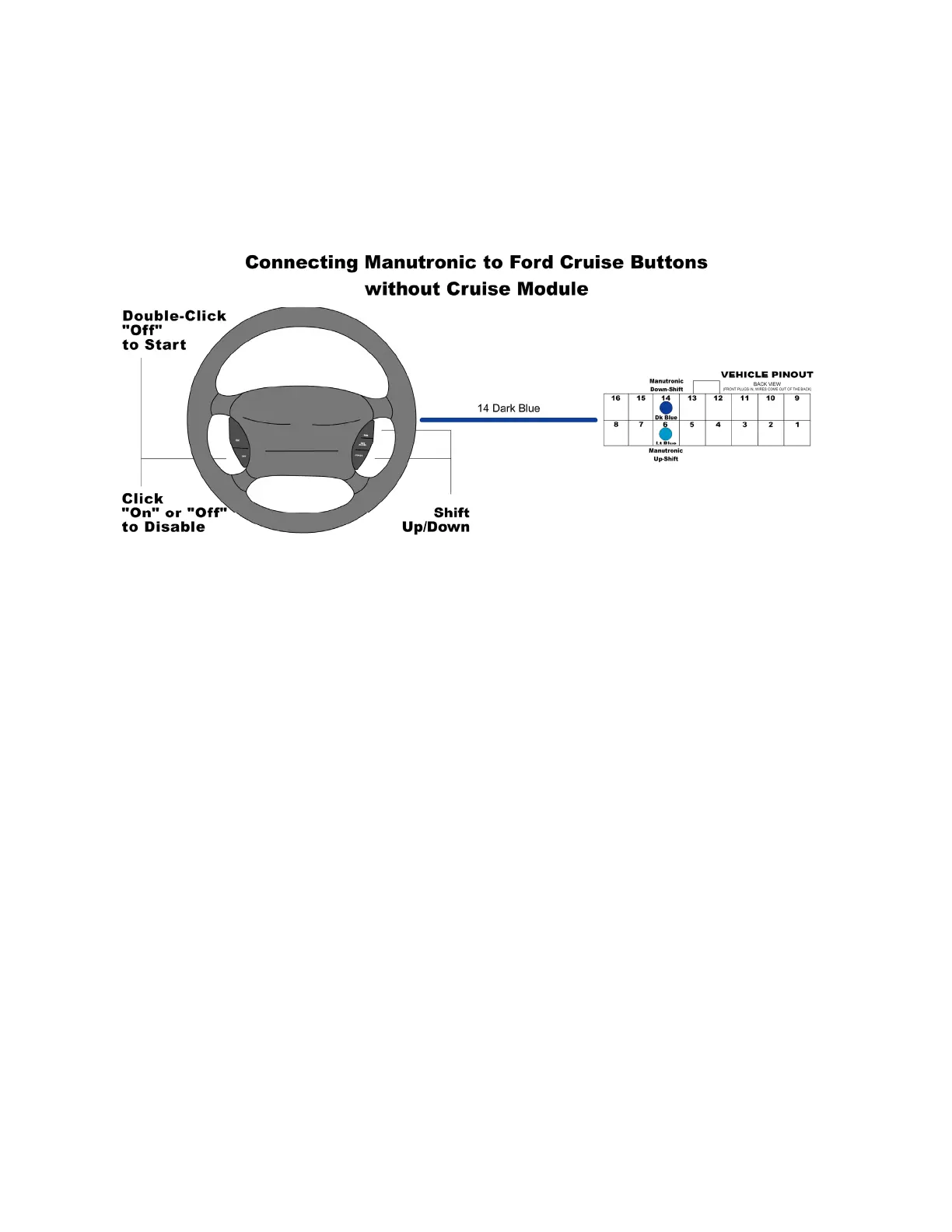

Ford Cruise Buttons without Cruise Module
For this configuration, you will need to connect the Dark Blue wire (Pin 14 on the
Vehicle Connector) to the steering wheel buttons. (Follow the guidelines for
soldering found in the “General Installation” section.) The Light Blue wire is not
needed for this configuration. To enable Manutronic, double-click the CRUISE
OFF button. Press ON or OFF once to disable it.
