CONNECTING THE ESSENTIALS
(CARBURETED AND MECHANICALLY-INJECTED DIESEL)

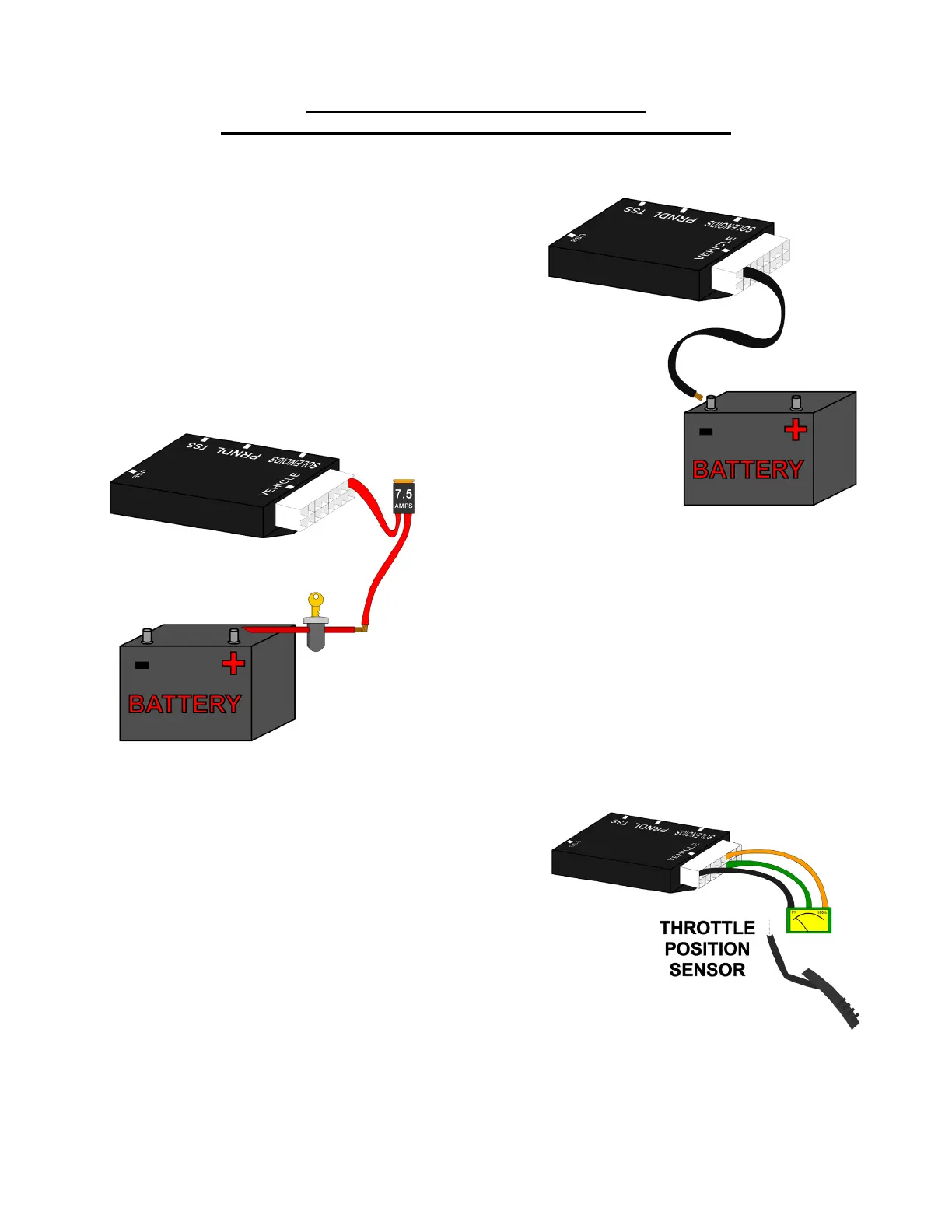

Step 1: Ground
Connect the ground wire (Pin 15 Black) from the
Quick 6 directly to the battery ground post or
negative battery cable. Do NOT connect the
ground wire to sheet metal or other ground
sources. The Quick 6 MUST be connected
directly to the battery ground post or negative
battery cable.
Step 2: Power
Connect the power wire (Pin 9 Red with 10
Amp fuse) from the Quick 6 to ignition-
switched power wire. Do NOT use accessory-
switched power. Power should be supplied
during cranking as well as while running, which
is vital to the Quick6 operating properly.
Step 3: Throttle Position Sensor
Attach the 3 Throttle Position wires from the
Quick 6 to the Throttle Position Sensor. Pin 16
Black is dedicated ground. Pin 11 Orange is +5v
reference feed. Pin 3 Dark Green is the position
sensor signal. See the "Throttle Position Sensor"
section for details.
