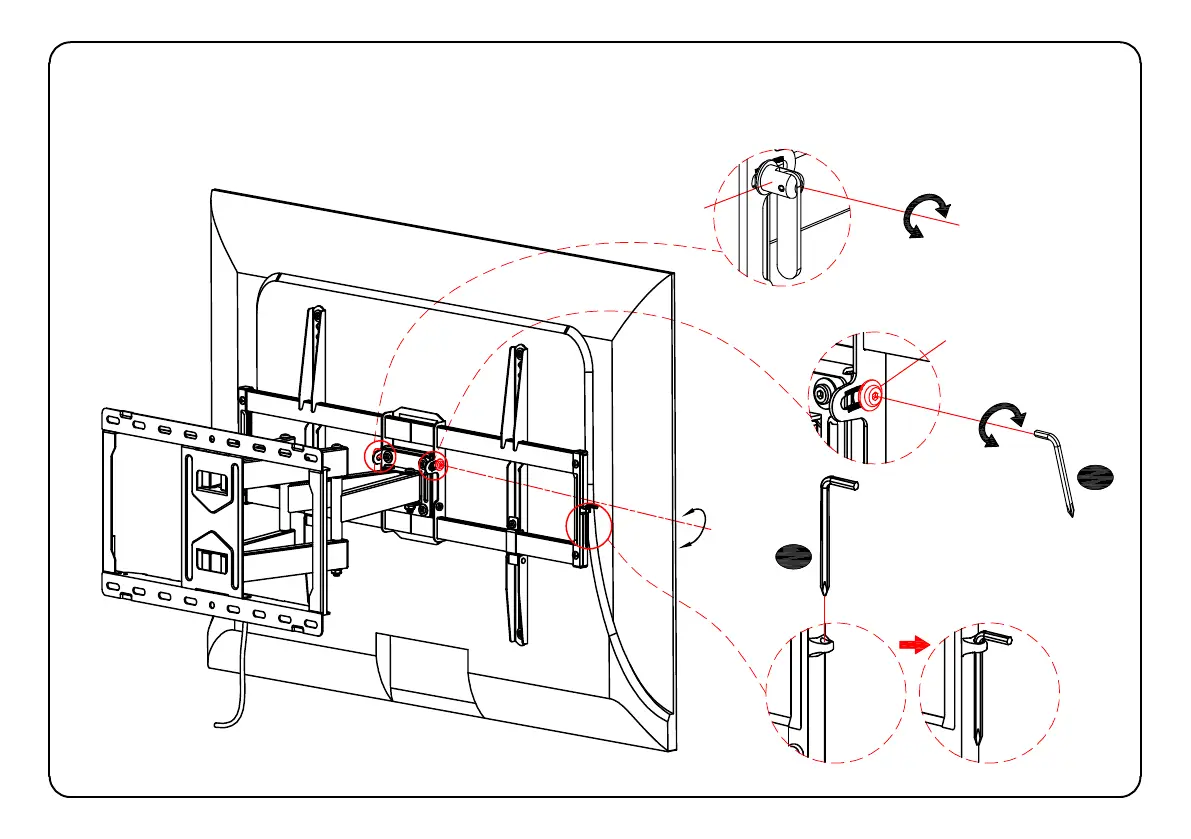

6-2 Tilting angle adjustment (+5°/-15°)
：
Loosen handle and tilting bolt, adjust TV to your desired position,
then tighten handle and tilting bolt. Put the handle level when finish.
Handle
Tighten
Loosen
