2/3
3) Cover the upper divided unit onto the lower
divided unit and secure them by four hooks.
At that time, adjust the clutch's direction so that
the terminals of each clutch fit into the hole of the
upper divided unit.
(Fig.3)
4) Check the operation of the following parts after
reassembling the paper feed drive unit. If not
correctly operating, reassemble the unit again.
Gear B is rotated according to rotating Gear A.
Gear group D is rotated according to Gear C.
Shaft E is relocated after pressed.
5) Reattach the paper feed drive unit in the main unit by reverse procedures.
No.
Old Part
No.
New Part
No.
Description
Q’ty Compatibility
Remarks
Old New Old New
1 2KV94210 2KV94211 PARTS DRIVE FEED ASSY SP 1 1
X O
2 ------------ 2KV94490 +PARTS CLUTCH 20 Z35R SP - 1
- O
MP feed clutch
"+" mark at the beginning of the part name means it is a component parts.
No.2 is new registered as service parts.

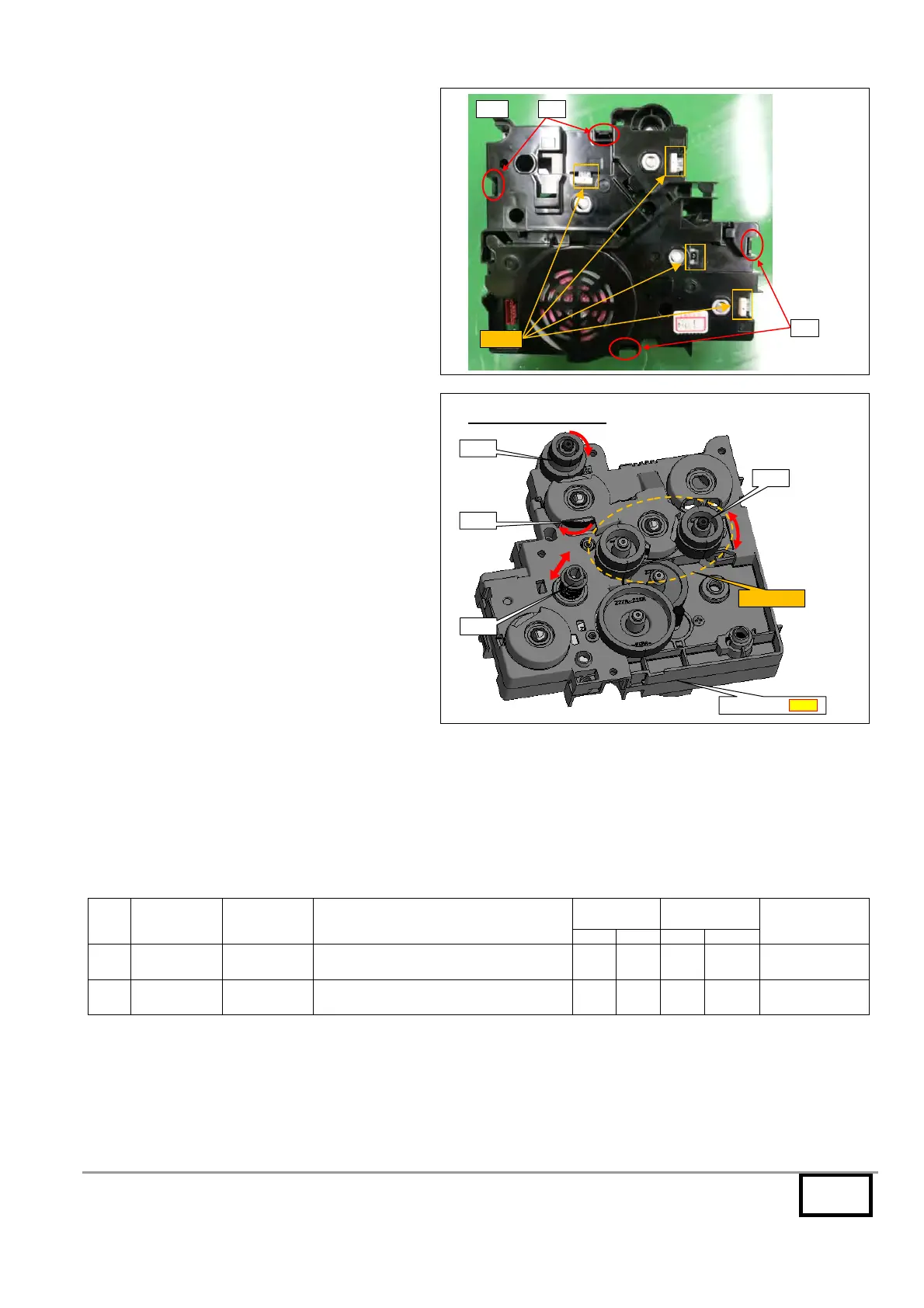

Paper feed drive unit (Side facing the main unit)
Fig.3
Hook
Hook
Terminal
Gear C
Gear A
Gear B
Gear E
Gear group D
Drive feed assy No.11
