Utax CLP 3726 - C0150 Error Correction (TB 04); Topic: C0150 Error Cause; Content of Changes: Clamp Addition

1/2
Technical Bulletin UTAX
UTAX
CLP 3721
CLP 3726
TA
TA
CLP 4721
CLP 4726
TB 04 / Corrective measures for C0150 error with…
2KT-B120/M
Date: 30-05-2011
T OPIC :
C0150 error may appear with the wire (EXIT-ENGN) pinched by the rib on COVER TOP P. Therefore, the following are
changed.
[C0150: Backup memory read/write error (engine PWB)]
C ONTENT OF CHANGES :
A clamp (ACCESS CLAMP (No.1)) is added to the wire (EXIT-ENGN) to attach it.
Clamp added
No.
Old Part
No.
New Part
No.
Description
Q’ty Compatibility
Remarks
Old New Old New
1 --------
YZ112220 ACCESS CLAMP
- 1
- O
STAY REAR TOP
COVER TOP P
A
Hole of STAY
B
The edge of the hole of the STAY
A 1mm or more gap with the edge of the CLAMP
B The wire should not get over the dotted line
ACCESSS CLAMP
(No.1)

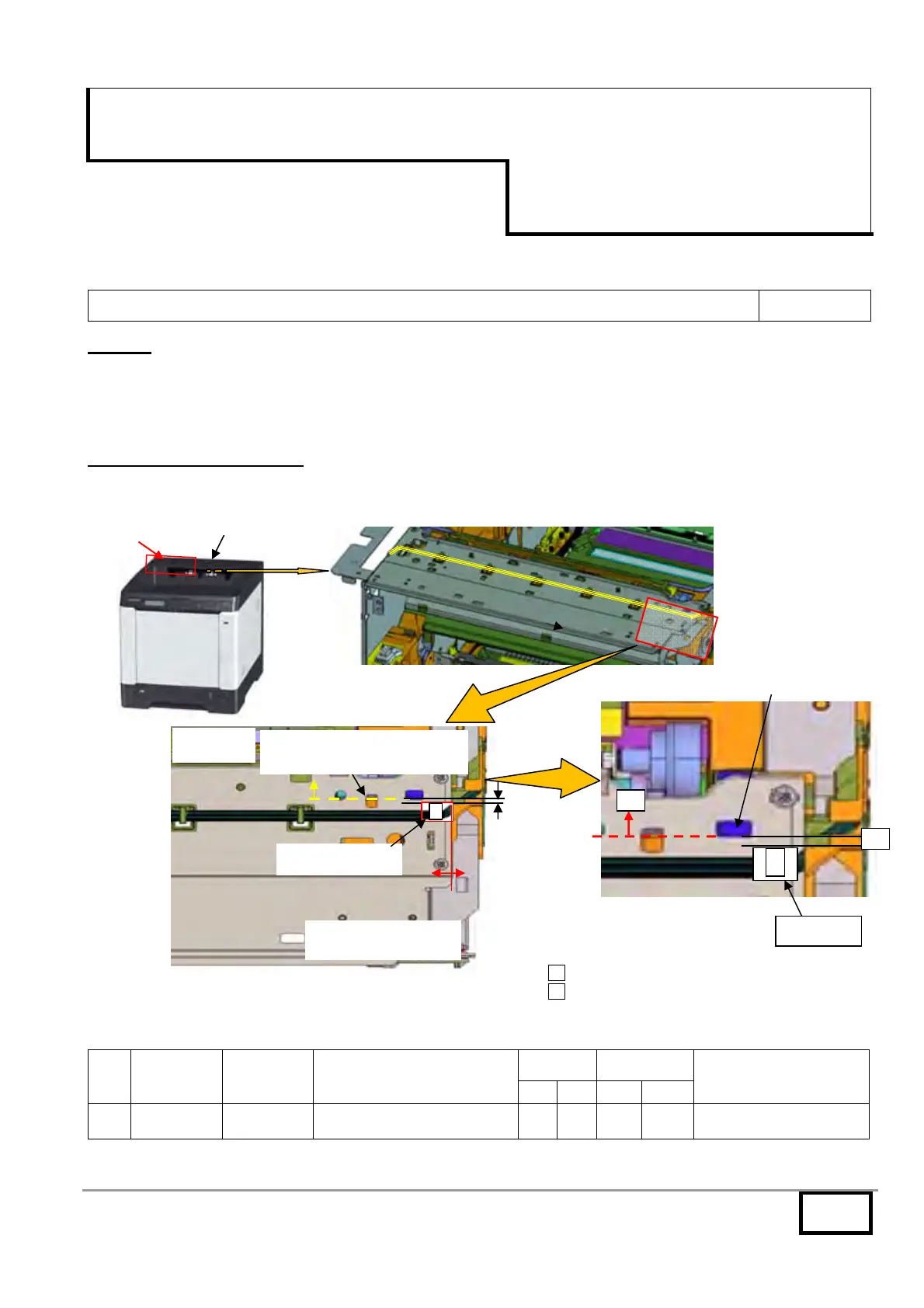

Where to affix
ACCESSS.CLAMP
Enlarged
view of A
2mm 0mm
1mm gap
or more
The wire should not get over
the arrow mark side
ACCESSS CLAMP
(
No.1
)
