4) Clean with alcohol the ranges between the
second rib and third rib from both horizontal
ends of the cassette guide.

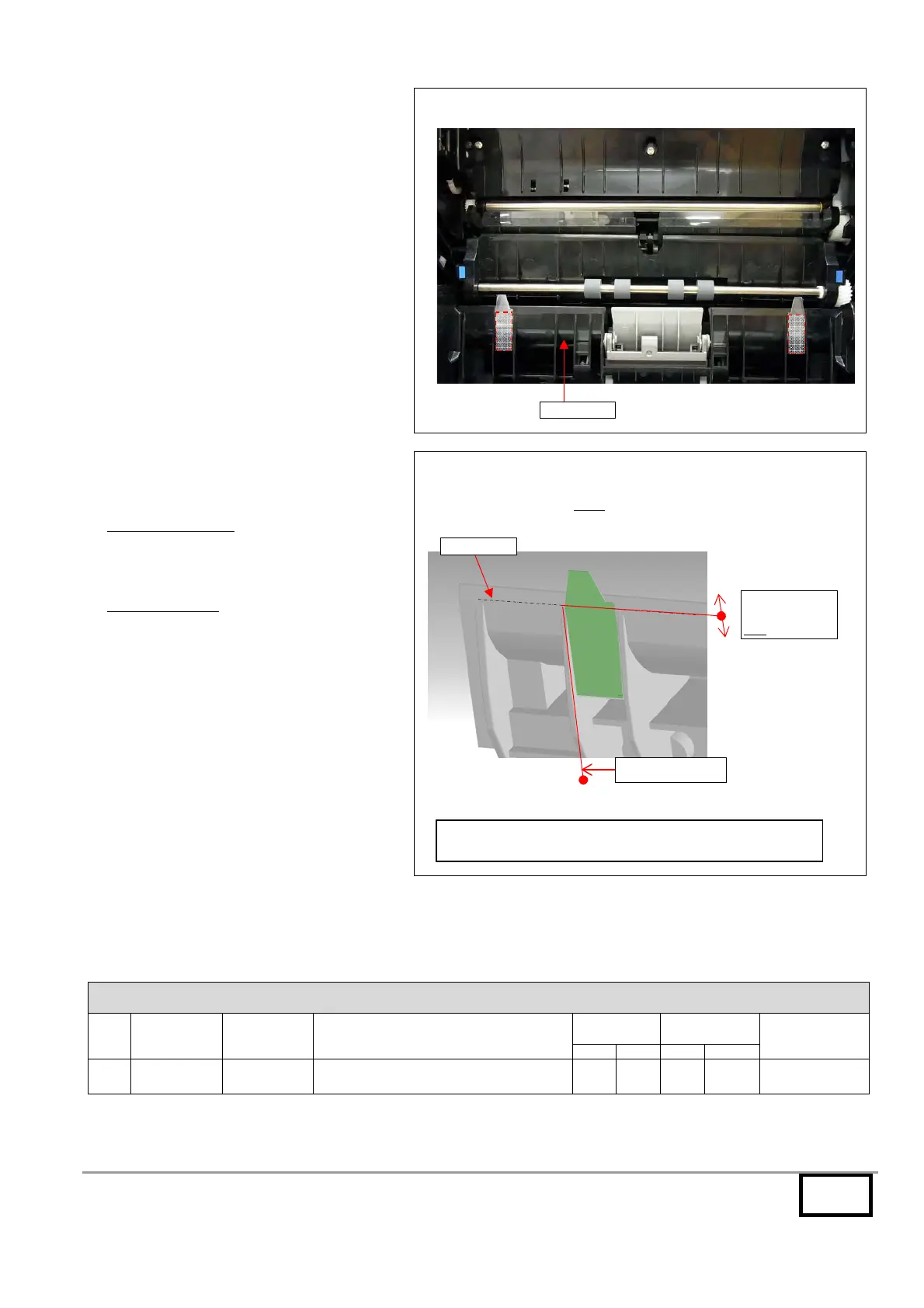

Below is the state with the left and right duplex sheets.
5) Affix the left and right duplex sheets that are
bundled in the duplex sheet kit (No.1) according
to the following alignment.
Horizontal alignment
Align the sheets to each second rib from both
ends.
(+0mm/-0.5mm)
Vertical alignment
Align the top end of the double-sided tape of
each duplex sheet to the surface edge of the
cassette guide.
(+/-0.5mm)
Below is where the right duplex guide is affixed.
P
ARTS
T
ABLE
No.
Old Part
No.
New Part
No.
Description
Q’ty Compatibility
Affected model
Remarks
Old New Old New
1 ---------- 302KV94500 PARTS SHEET DU TURN SET SP - 1
- O
Service part *
*: Duplex sheet kit (bundling 2 duplex sheets for affixing to the lower parts than the machine left and right ribs (X).)
The alignment for the left duplex sheet is bisymmetric as
the above.
Note: Align the top edge of the double-sided tape
of the duplex sheet to the surface edge.
Cassette guide
Align to the surface
edge of the cassette
guide
Note: +/-0.5mm
Align to the second rib
(+0mm/-0.5mm)
Surface edge
To Next Page
