07

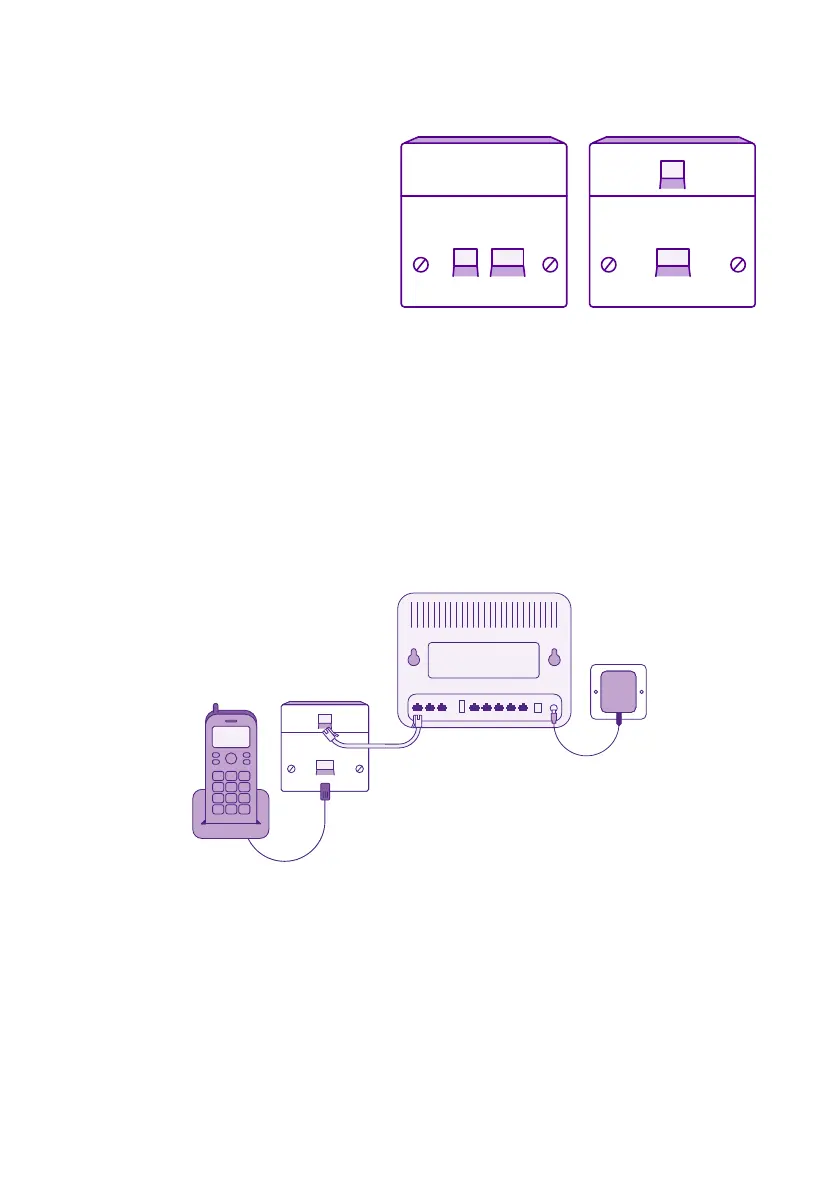

If you have a pre-filtered master
socket you won’t need to use
microfilters in your property.
1. 1. Connect your telephone cable into the larger of the two sockets on
the pre-filtered master socket, and the DSL cable into the smaller
socket.
2. Connect the other end of the DSL cable into the grey socket labelled
‘DSL’ on the back of the router.
3. Assemble the power supply by sliding the plug into the slot on the
power adapter and connect it to the router.
Turn on the main switch and push the black on/off button on the
back of the router.
A sequence of lights will come on and may take a minute or two to
stabilise.
Router
Power supply
DSL cable
Telephone
Pre-filtered
master socket
