UTILITY ROCKET V1.0 - Page 6

Rocket Access Point
3

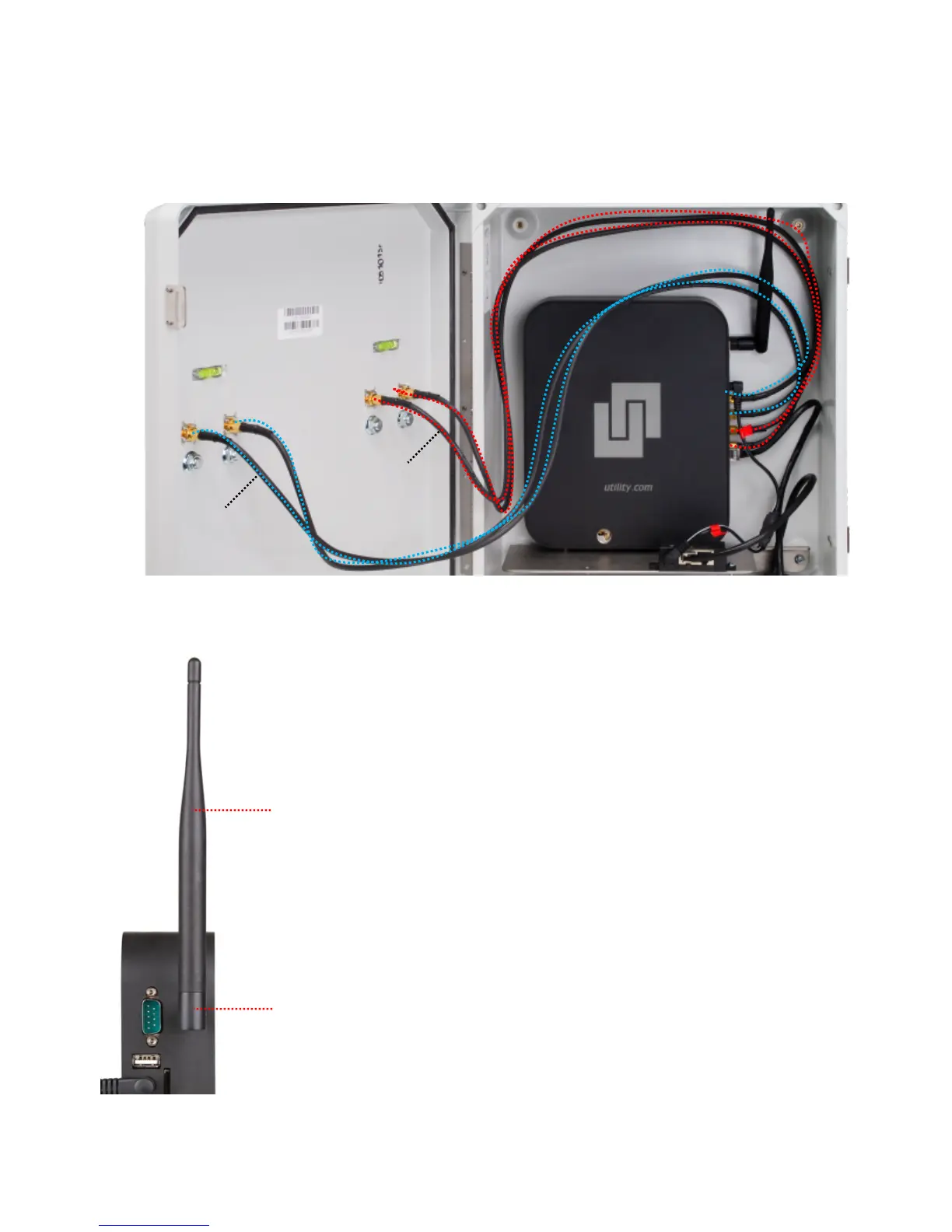

2. Connect the RAP’s internal antenna cables to each of the respective ports located on the inside front enclosures
housing.
a. Ensure that the long ‘rubber duck” barrel antenna is attached to the 2.4 GHz port located directly next to
the DB9 connection on the same side as the 5 GHz antenna connectors.
2A
2B
a
Inside front enclosure
Rubber duck
