UTILITY ROCKET V1.0 - Connecting Cables Outside Enclosure

Rocket Access Point
7
Connecting cables outside the RAP’s Enclosure

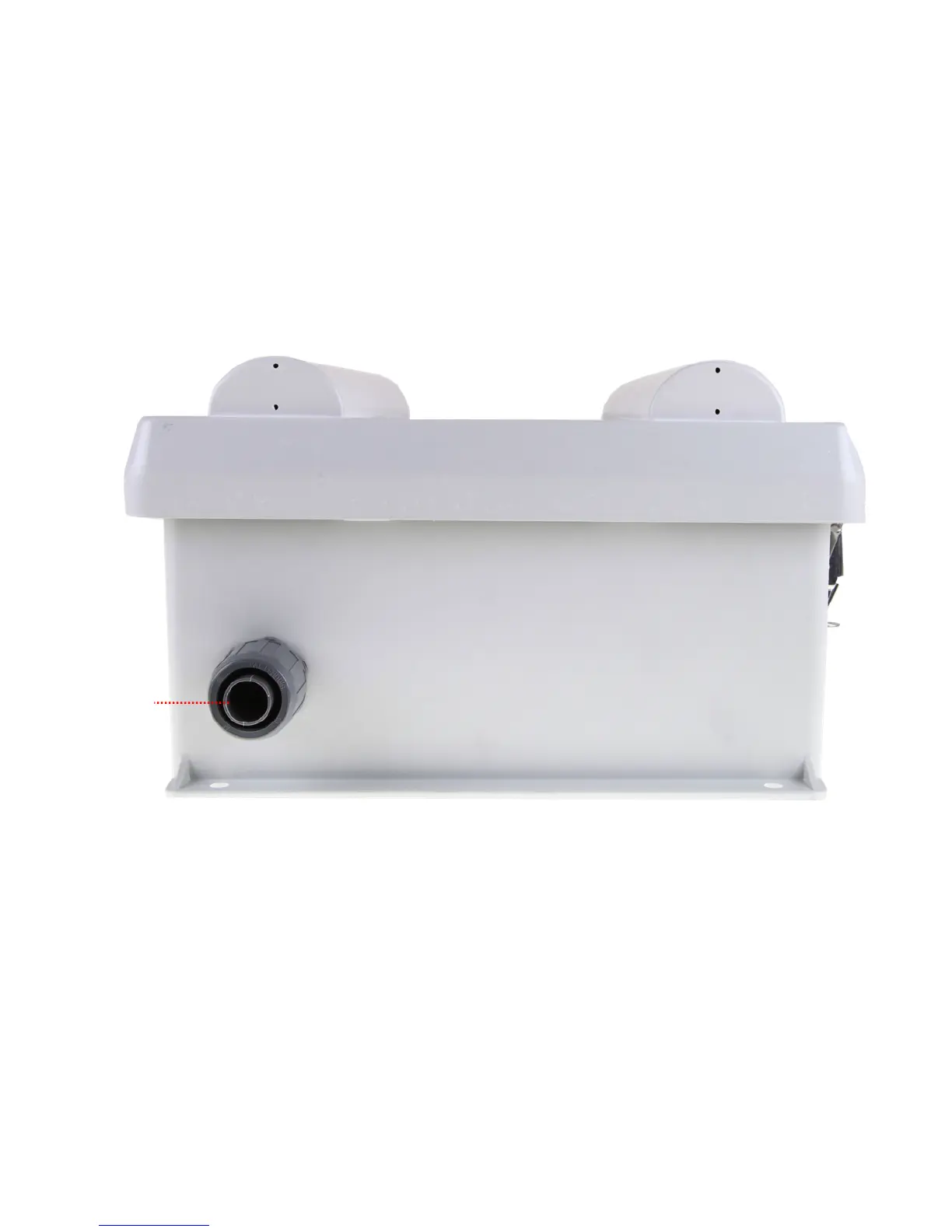

1. Locate the cabling access port on the bottom side the enclosure.
a. This is where your internal network-POE CAT 5/6 patch cable will be inserted to complete the LAN
connections.
2. Connect the bottom Ethernet port to a POE adapter. This port is used to power on the RAP, as stated in the
previous section.
