A700 Step-by-step maintenance procedures.
10

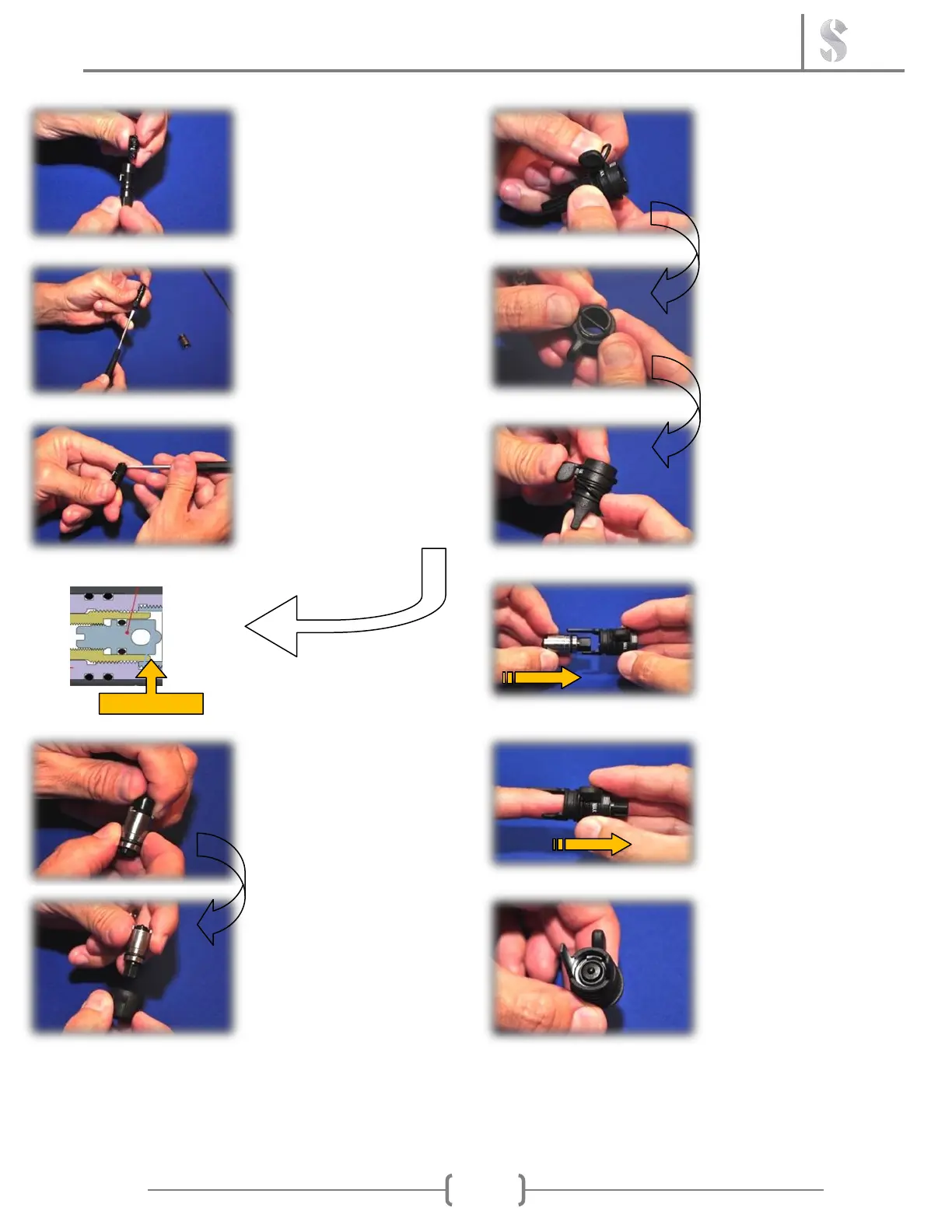

17. Push “micro adjust”
into the “adjustment
shaft” and hold with
finger-pressure.
22. Prep the „dive switch”
by installing both o-rings
supplied in the
maintenance kit.
Note the shortcut!
18. Using a flat blade
screw driver, inserted
through the shaft, turn
the micro adjust
counterclockwise until the
micro adjust bottoms out.
Continued…
Lubricate and spread the
new 160 o-ring into place.
19. Preset micro-adjust as
pictured below. That is,
bottom out
counterclockwise, and
then advance clockwise
exactly 2 full rotations –
leaving a 1 mm step
Continued…
Repeat and slide the
second o-ring into the
next groove.
See cut-a-way…
23. Push the adjustment
shaft sub-assembly into
the “dive switch”.
20. Screw the adjustment
shaft into the metal
sleeve.
24. Push until it bottoms
out.
21. It is helpful to
temporarily use the
adjustment knob to finish
– screw until the shaft
bottoms out.
Note: Orient the metal
sleeve tabs “north &
south” in relation to the 2
(long/short) dive switch
guides. The metal sleeve
tabs engage into the case
inlet-tube guides.
1 mm step
