Uwatec X650 Repair Guide

SCUBAPRO X650 SECOND STAGE
©2003 SCUBAPRO
Important note: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
9

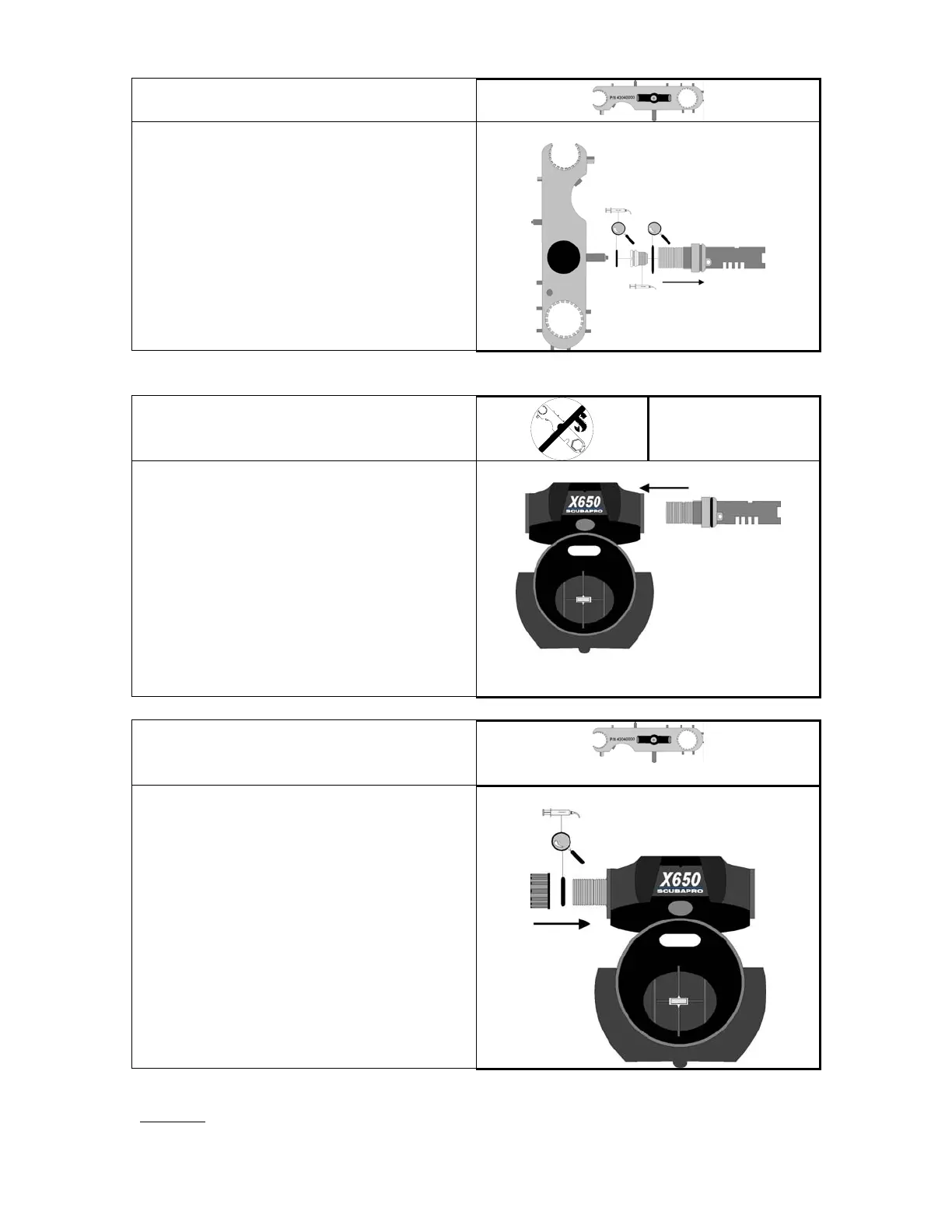

Lubricate and place the o’ring on the
adjustable orifice. Lightly lubricate the
threads.
Use the Universal Tool to thread in the
adjustable orifice 3 or 4 turns.
Place the o’ring onto the air barrel.
NOTE: Lubrication of the air barrel
o’ring is not necessary.
P
/
N
4
3
0
4
0
0
0
0
TOOLS
NEEDED
No tools needed
this step
Insert the air barrel into the case as
shown, being certain that the aspirator
holes are facing the mouthpiece
opening.
Push firmly into position.
Lightly lubricate the air barrel threads
before fitting the o’ring into place.
Thread the jam nut onto the air barrel
threads and tighten with Universal
Tool.
Fit the second o’ring next to the jam nut
as shown.
