Uwatec X650 Repair Guide

SCUBAPRO X650 SECOND STAGE
©2003 SCUBAPRO
Important note: The following information is not designed to be a complete training guide for servicing the listed SCUBAPRO regulators. All SCUBAPRO
technicians are required to attend an annual service training program to insure safe handling and servicing of SCUBAPRO products. All SCUBAPRO technicians
must be employed by an authorized SCUBAPRO facility.
10
Monoject

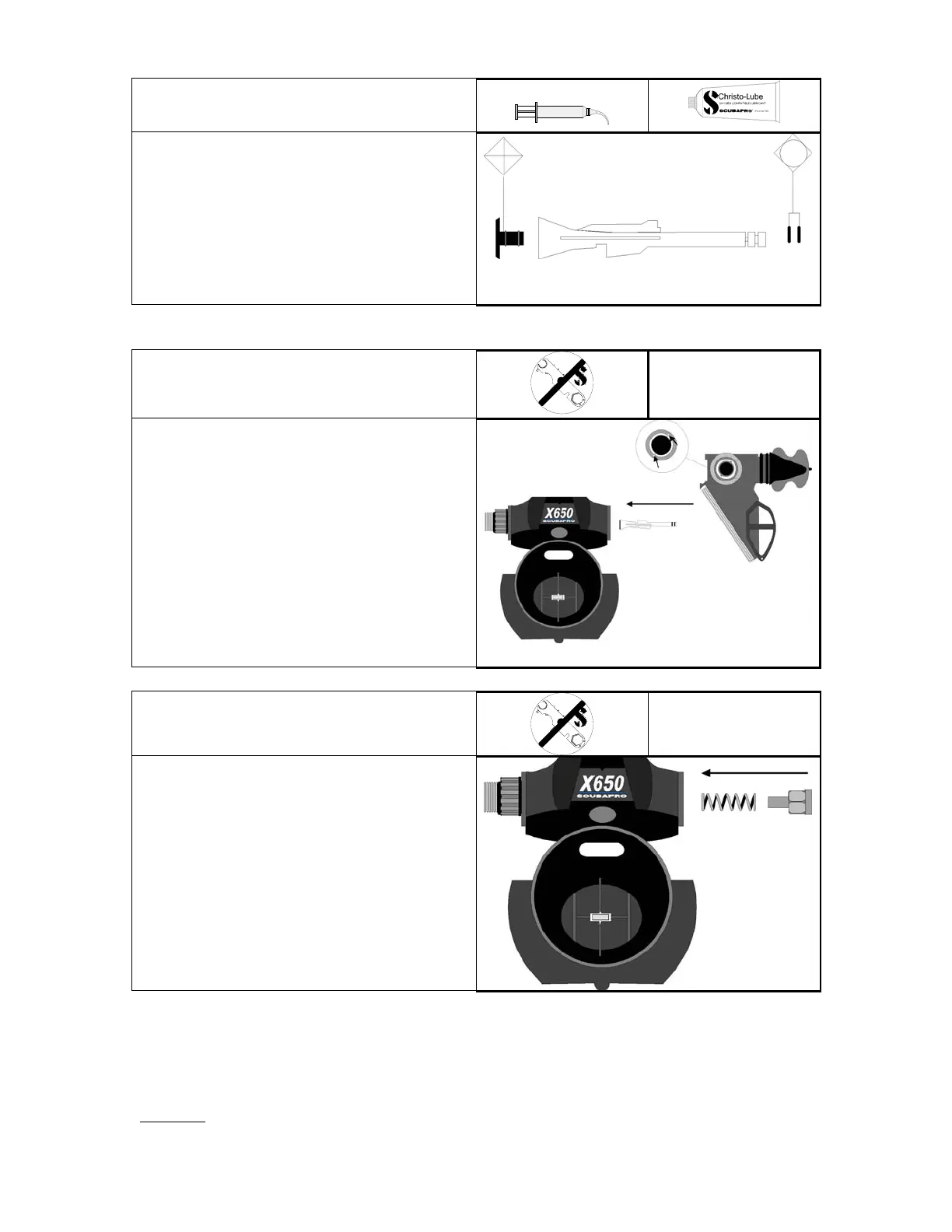

Prepare the poppet by replacing the
seat and replacing the dynamic o’rings.
P
/
N
4
3
0
4
0
0
0
0
TOOLS
NEEDED
No tools needed
this step
Hold the poppet shaft and guide the
poppet “wings” into the grooves of the
air barrel by positioning the lever tab
toward the mouthpiece tube.
CAUTION: If the poppet is not installed
properly it will not move freely inside
the air barrel.
P
/
N
4
3
0
4
0
0
0
0
TOOLS
NEEDED
No tools needed
this step
Install the spring and the balance
chamber as shown.
