CONTROL PANEL
First of all make the connections mentioned
above before switching on the power station.
The power station will check DISPLAY 's
correct functioning activating the different
sections for 1,5 seconds
After this, on the display appears the software
version for 1,5 seconds. Example:

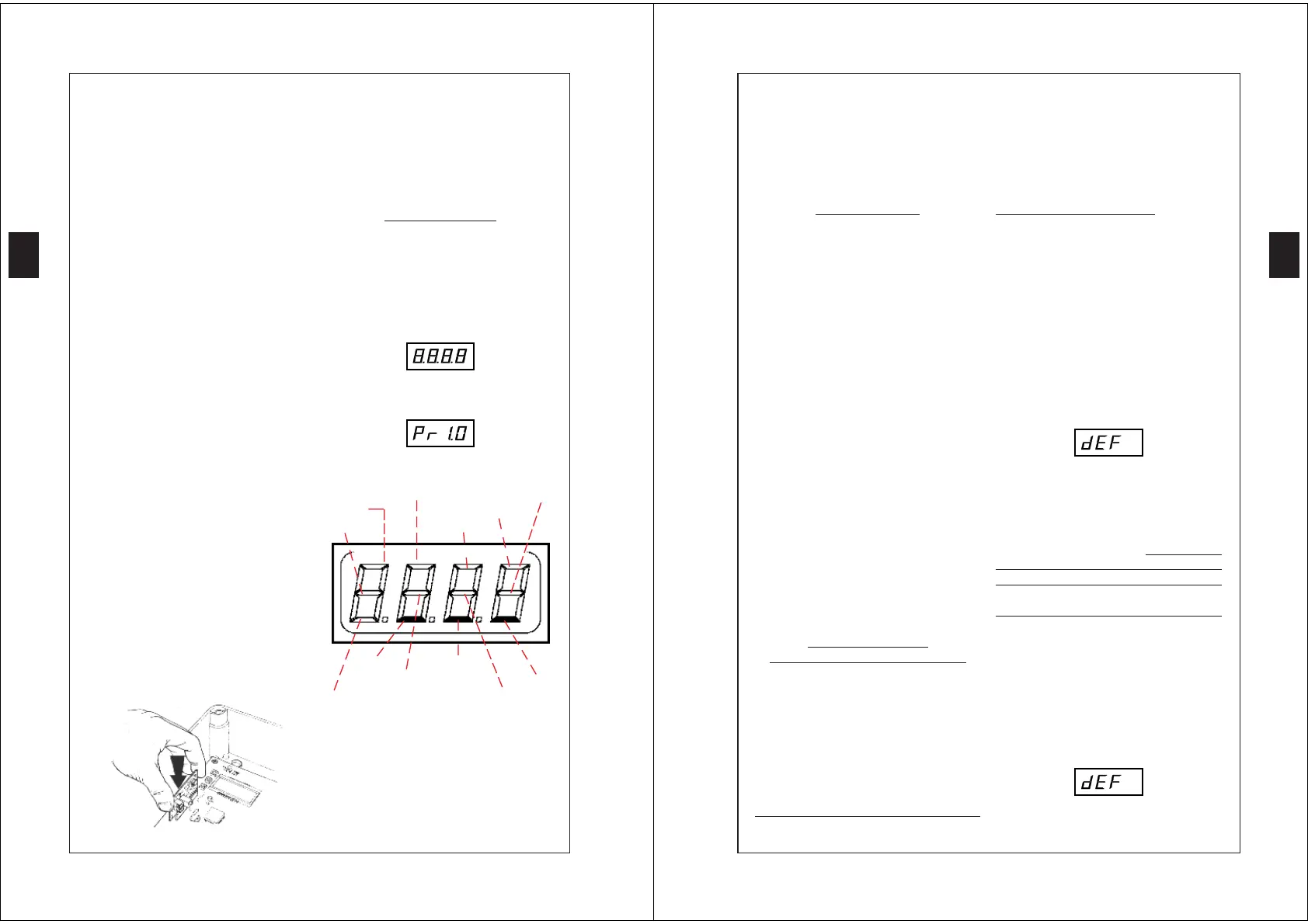

The display shows the control panel:
START P. LIMIT-SW. OPEN
START PHOTO 1
PHOTO 2 STOP
UP DOWN
SAFETY-RIB 1 MENU
LIMIT-SW. CLOSE SAFETY-RIB 2
The control panel shows the actual state of
the contacts and programming keys: if the
contact is closed the higher section is
illuminated, if the contact is open, the lower
section is illuminated. The drawing above
illustrates the case where no input has been
connected.
PROGRAMMING
28
The new PD2 electronic programmer,
designed and carried out by V2 ELETTRO-
NICA, finds its application in the installations
of automated sliding gates with the utmost
reliability and safety.
Thanks to the versatility of this product, it is
possible to satisfy all requirements with
functionality and efficiency.
PD2 is equipped with a display which
enables, besides an easy programming, the
constant monitoring of the inputs'state;
furthermore, its menu structure enables a
simple layout of the working times and
function logics. It is built by a sophisticated
surface assembly technique and it is
characterized by the complete electrical
isolation between the digital circuit and the
power. According to the safety standard UNI
8612, it is equipped with an electronic torque
regulator. The presence on board of a quick
input connector enables the input of a module
receiver of the series MT or MQ: it is
therefore possible to employ the four
available radio channels, associated to the
controls: START, PEDESTRIAN START,
STOP and ACTIVATION AUXILIARY
EXIT.
Furthermore, this control unit is equipped
with an output for the connection of the pilot
lamp indicating the state of the gate, and an
output to control the switching on and off of
the courtesy lights.
PLUG-IN RECEIVER INSERTION
GB
PROGRAMMING
29
PROGRAMMING
PD2 has a menu programming structure. Each
menu corresponds to a function of the unit
(function menu) or to the setting of a working
time (time menu). The time menus enable the
adjustment of the unit's working times (Ex.:
opening or closing time, pre-flashing time,
etc.) and can be set from 0 to 120 seconds
by a scanning of ±0,5 s. On the other hand,
the function menus enable the activation of
the wished functions (Ex: timed courtesy
lights, PHOTO2 disconnected, active
automatic closing, etc.).
There are a few time menus depending on
specific function menus (Ex.: if the
AUTOMATIC CLOSING is activated, it is
necessary to set a STANDSTILL TIME, if
not connected, it is necessary to re-set it); in
order to facilitate the programming, these
time menus have been put into a few function
menus, on which they depend. Specifically
the menus: AUTOMATIC CLOSING
(Ch.AU), LIGHTS (LUCi), and
PHOTOCELL IN STANDSTILL (Ft.PA)
present among the various options a few time
menus.
FUNCTION OF THE
BUTTONS, MENU, UP and DOWN
When the programming function is activated,
press the button UP or DOWN to select the
menus, by shifting forward or backward
(keep the button pressed for a quick shifting).
Press the button MENU to enter the settings
which can be modified by pressing the
buttons UP and DOWN.
WHEN THE PROGRAMMING
FUNCTION IS NOT ACTIVE, PRESSING
THE BUTTON UP CORRESPONDS TO
THE CONTROL START, PRESSING THE
BUTTON DOWN CORRESPONDS TO
THE CONTROL PEDESTRIAN START: IT
IS POSSIBLE TO CHECK THE SYSTEM
NOW.
After supplying power, the display must show
the control panel (make sure that the
connections are correct).
Keep the MENU button pressed until the
display shows:
Now the programming is activated: if within
1 minute no operation is carried out, the
programming goes automatically off
displaying again the control panel.
We can define the programming of the PD2
by two different ways:
STANDARD
PROGRAMMING (DEFAULT) and
PERSONALIZED PROGRAMMING.
STANDARD PROGRAMMING (DEFAULT)
dEF is the Default program set by V2 Elet-
tronica. If you wish to memorize it, proceed
as follows.
Press MENU key: the display show no.
Press MENU key to confirm: the display
shows dEF.
Press DOWN key: the display shows FinE.
GB
To Next Page
