ENGLISH
8
BINGO400 - BINGO500 - BINGO400-120V - BINGO500-120V
BINGO400-24V - BINGO500-24V
Opening and closing mechanical stop
BINGO400 02- BINGO500 02
Opening and closing mechanical stop
Opening and closing electrical limit switch
Built-in trigger capacitor
BINGO400
BINGO400 02
BINGO400
120V
BINGO500
BINGO500 02
BINGO500
120V
BINGO400
24V
BINGO500
24V
Max. leaf lenght m 3,5 3,5 4,5 4,5 3,5 4,5
Max. leaf weight Kg 400 400 500 500 350 400
Power supply VAC - Hz 230 - 50 120 - 60 230 - 50 120 - 60 24 VDC 24 VDC
Idling current A 2 4 2 4 1,8 1,8
Full load current A 3,2 6 3,2 6 5 5
Maximum Power W 480 480 480 480 120 120
Capacitor µF 8 2 x 10 8 2 x 10 - -
Max travel mm 370 370 490 490 370 490
Operating speed m/s 0,017 0,018 0,017 0,018 0,010 ÷ 0,018
Maximum thrust N 1800 1800 1800 1800 1800 1800
Working temperature °C -30 ÷ +60 -30 ÷ +60 -30 ÷ +60 -30 ÷ +60 -30 ÷ +60 -30 ÷ +60
Protection IP 34 34 34 34 34 34
Working cycle % 30 30 30 30 80 80
Motor weight Kg 11 11 12 12 11 12

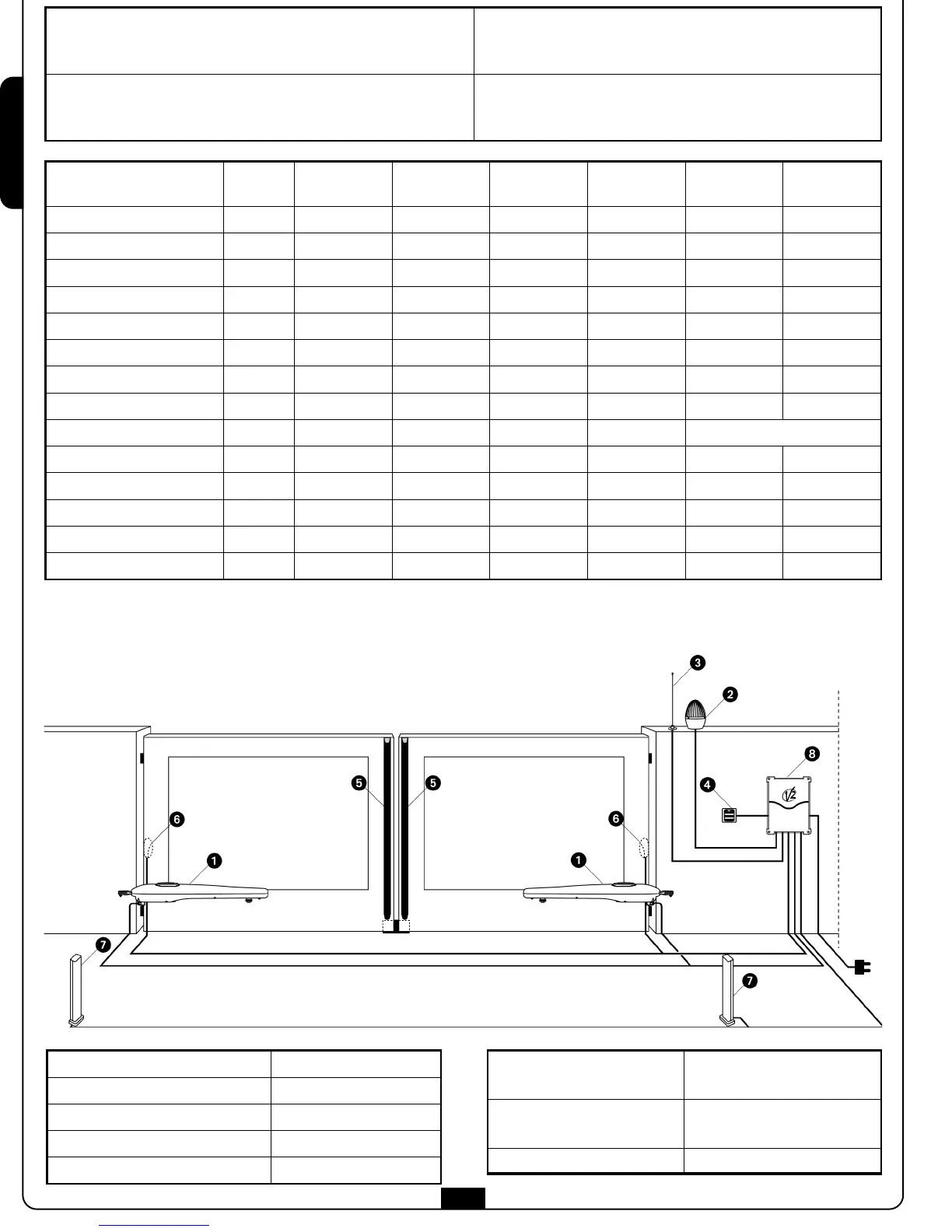

INSTALLATION LAYOUT
 BINGO actuator
cable 4 x 1 mm
2
 Blinker
cable 2 x 1,5 mm
2
 Aerial
cable RG-58
 Key or digital selector
cable 3 x 0,5 mm
2
 Safety edge (EN 12978)
-
 Internal photocells
cable 4 x 0,5 mm
2
(RX)
cable 2 x 0,5 mm
2
(TX)
 External photocells
cable 4 x 0,5 mm
2
(RX)
cable 2 x 1 0,5 mm
2
(TX)
 Control unit
cable 3 x 1,5 mm
2
